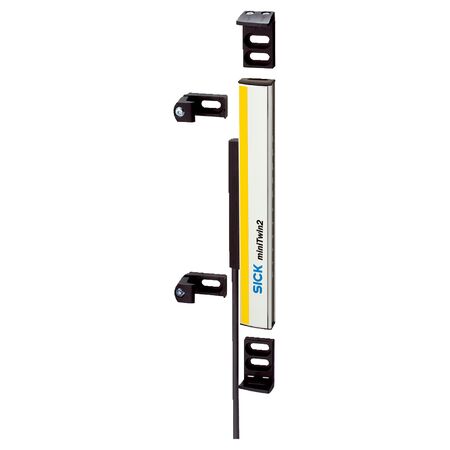

Twin-Stick Safety Light Curtain | 34 mm Resolution | 6 m Scanning Range | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 34 mm resolution and a scanning range of up to 8 m. Ideal for machine safeguarding, this device offers optical synchronization and a response time of ≤ 13 ms, ensuring reliable presence detection in manufacturing and automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 120 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Performance level: PL c (EN ISO 13849)
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Weight: 50 g
- Housing material: Aluminum alloy ALMGSI 0.5
- Dimensions (H x L x W): 32mm x 160mm x 15mm
- Weight: 0.1 kg
Key Features
- Twin-Stick system part
- MiniTwin2 usage as standalone or cascade device
- Mounting with C-fix or L-fix bracket
- Resolution of 34 mm
- Scanning range minimum 0 m to 6 m, typical 0 m to 8 m
- Protective field height of 120 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Use as standalone device or in 2- or 3-device cascades
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum alloy housing extends product life reducing waste
- IP65 rated enclosure protects against dust and water ingress
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C2MT-01234BBC03BE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
