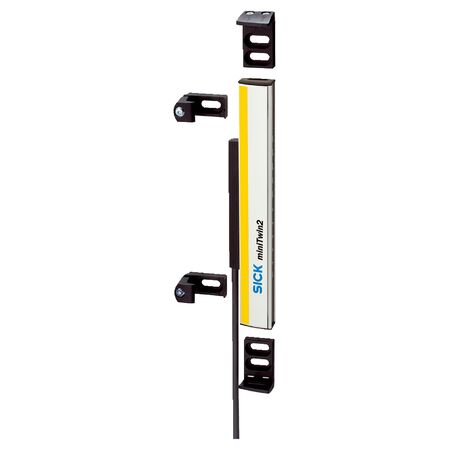

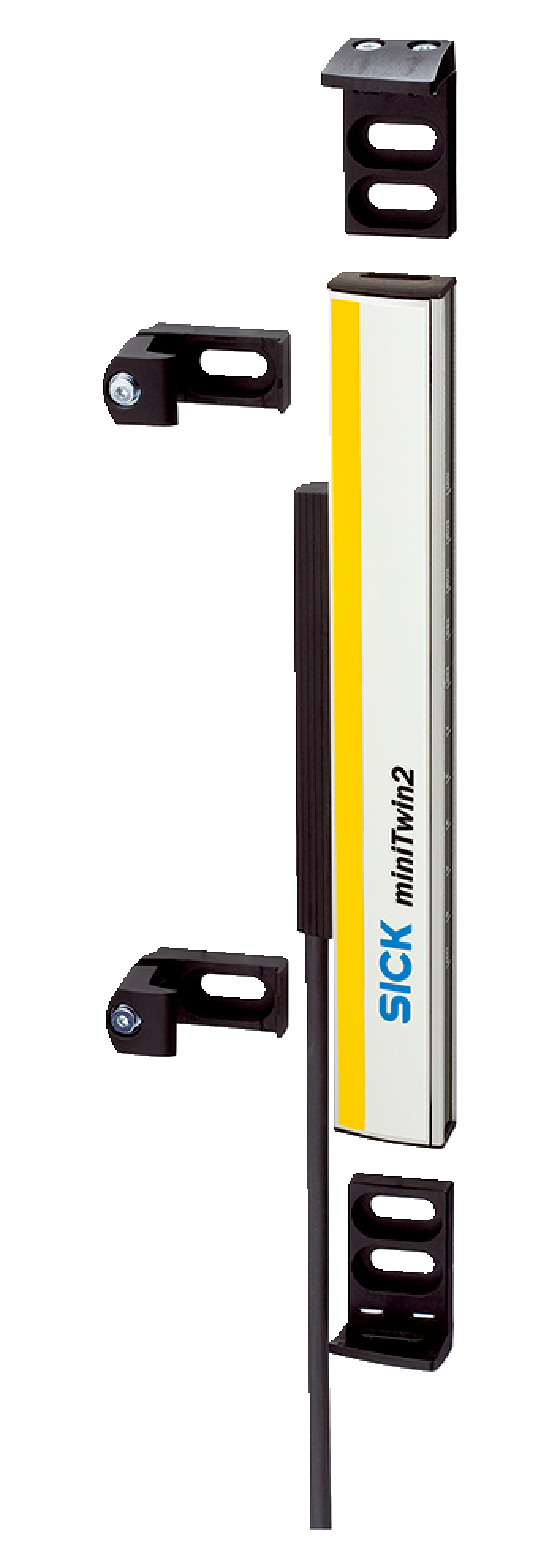

Twin-Stick Safety Light Curtain | MiniTwin2 Standalone | 240mm Protective Field Height | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a MiniTwin2 system that can operate as a standalone unit or in cascades. With a protective field height of 240mm and a scanning range of up to 8m, it ensures reliable presence detection and machine safeguarding. Built for durability and efficiency, this safety light curtain is perfect for manufacturing and automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: MiniTwin2 standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 240 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 3 A
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 240mm x 32mm x 15mm
- Weight: 0.1 kg
Key Features
- Twin-Stick system part
- MiniTwin2 usage as standalone or last guest in cascades
- Mounting with C-fix or L-fix bracket
- Resolution of 34 mm
- Scanning range typical 0 m to 8 m
- Protective field height of 240 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Use as standalone device or in 2- or 3-device cascades
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum alloy housing reduces material waste
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Warranty details available upon request from manufacturer; standard industrial product warranty applies.
Available Now
The SICK C2MT-02434BBC03DE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
