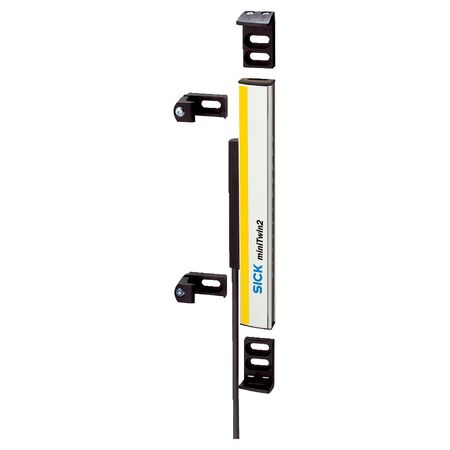

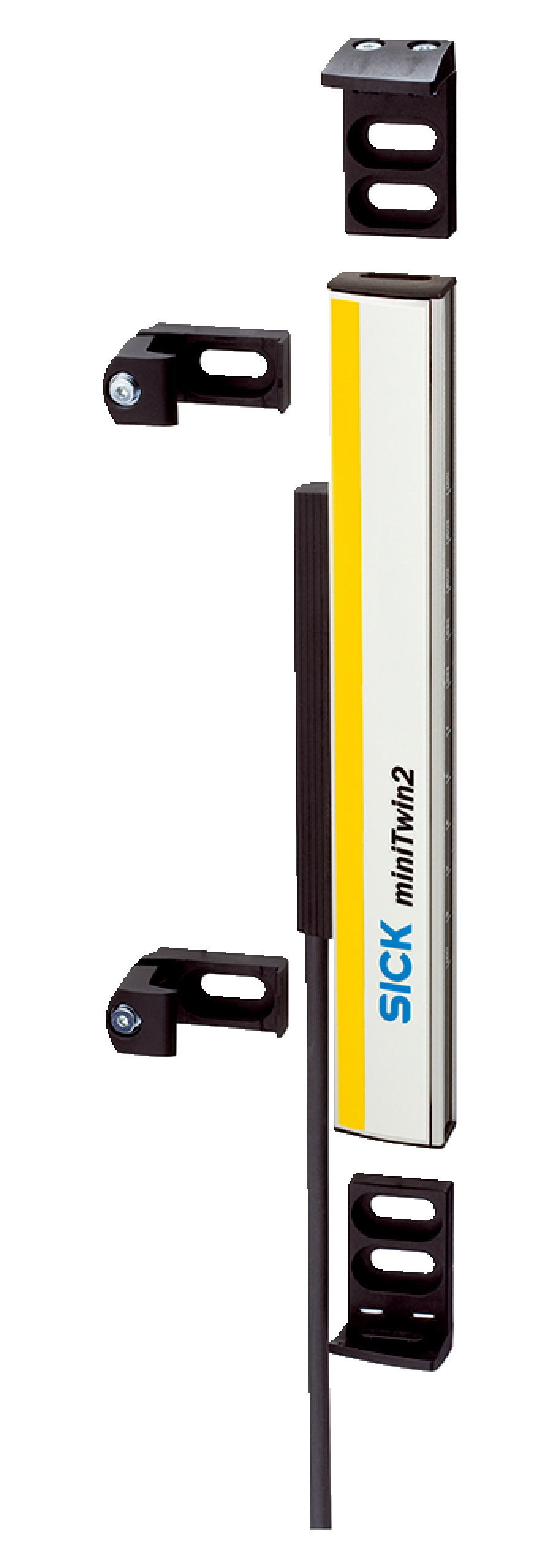

Twin-Stick Safety Light Curtain | MiniTwin2 System | 24mm Resolution | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a MiniTwin2 system that can operate as a standalone device or in cascades. With a protective field height of 960 mm and a scanning range of up to 8 m, it ensures reliable presence detection and machine safeguarding in manufacturing environments. Built with durable aluminum housing and an IP65 rating, this sensor is perfect for automation and safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 960mm x 32mm x 15mm
- Weight: 0.34 kg
Key Features
- Twin-Stick system part
- MiniTwin2 usage as standalone or last guest in cascades
- Mounting with C-fix or L-fix bracket
- 24 mm resolution
- Scanning range typical 0 m to 8 m
- Protective field height of 960 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- Hard wired configuration with LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices, short-circuit protected
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature range -20 °C to +55 °C
- Shock resistance 15 g / 6 ms
- Vibration resistance 5 to 150 Hz
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and optimal device performance.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Use as standalone device or in 2- or 3-device cascades
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing for long product life
- Low power consumption reduces energy use
- IP65 rating protects against dust and water ingress, reducing maintenance waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C2MT-09624BBC03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
