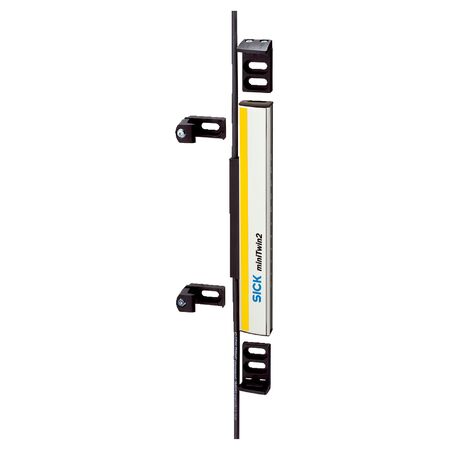

Twin-Stick Safety Light Curtain | MiniTwin2 Compatibility | 34 mm Resolution | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial automation safety, featuring MiniTwin2 compatibility for flexible 2- or 3-device cascades. With a resolution of 34 mm and an IP65 rating, it ensures reliable machine safeguarding and safety monitoring in manufacturing environments, making it ideal for professionals seeking robust safety solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin2 as host for 2- or 3-device cascade, miniTwin2 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range minimum: 0 m to 6 m
- Scanning range typical: 0 m to 8 m
- Protective field height: 120 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- System connection: Male connector M12, 5-pin, cable length 160 mm
- Extension connection: Female connector M12, 5-pin, cable length 160 mm
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section (incl. system connection): 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 50 g
- Enclosure rating: IP65 (EN 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 32mm x 160mm x 15mm
- Weight: 0.1 kg
Key Features
- Twin-Stick system part for flexible safety configurations
- MiniTwin2 compatibility for 2- or 3-device cascades
- Mounting options with C-fix or L-fix brackets
- Resolution of 34 mm with protective field height of 120 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM) included
- Automatic beam coding for enhanced safety
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety
- Machine safeguarding
- Cascade systems with miniTwin2 hosts and guests
- Safety monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum alloy housing for long product life
- IP65 rated enclosure for protection against dust and water ingress
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C2MT-01234BBC04BE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
