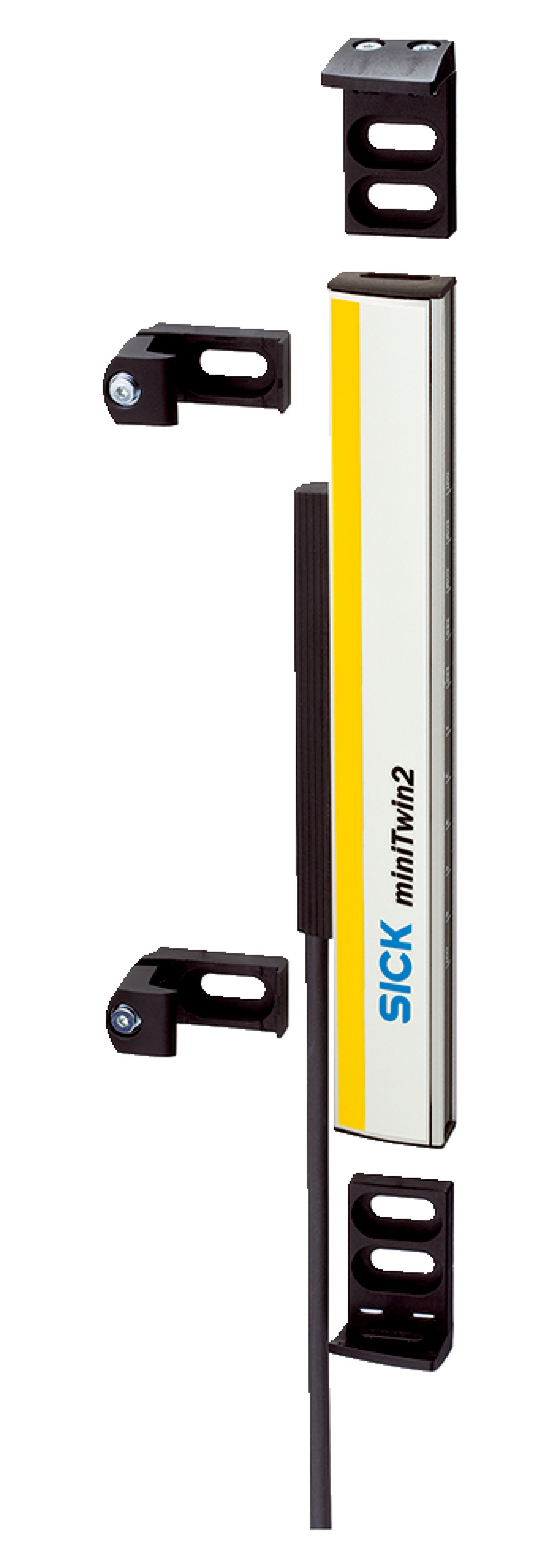

Twin-Stick Safety Light Curtain | MiniTwin2 System | 600mm Protective Field | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety, featuring a MiniTwin2 system that can operate as a standalone unit or in a cascade configuration. With a protective field height of 600mm and a scanning range of up to 8m, it ensures optimal safety for personnel in hazardous areas. Built with durable aluminum housing and an IP65 rating, this sensor is perfect for automation applications, providing reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: MiniTwin2 as standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range minimum: 0 m to 6 m
- Scanning range typical: 0 m to 8 m
- Protective field height: 600 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal test): 58 /s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD is OFF
- Restart interlock: Yes
- External device monitoring (EDM): Yes
- Beam coding: Automatic
- System connection: Male connector M12, 5-pin
- Cable length: 700 mm
- Conductor cross section: 0.34 mm²
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 215 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 600mm x 32mm x 15mm
- Weight: 0.215 kg
Key Features
- Twin-Stick system part
- MiniTwin2 usable as standalone or last guest in 2- or 3-device cascade
- Mounting with C-fix or L-fix bracket
- Resolution of 34 mm
- Scanning range minimum 0 m to 6 m, typical 0 m to 8 m
- Protective field height of 600 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection with 700 mm cable
- Hard wired configuration with LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices (OSSDs), short-circuit protected and cross-circuit monitored
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature range -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in standalone or cascade device configurations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Low power consumption enhances energy efficiency
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

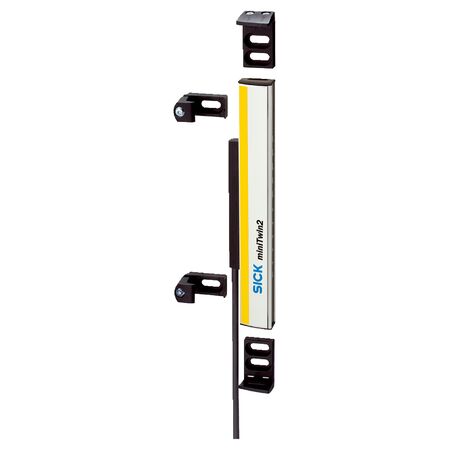

The SICK C2MT-06034BBC03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
