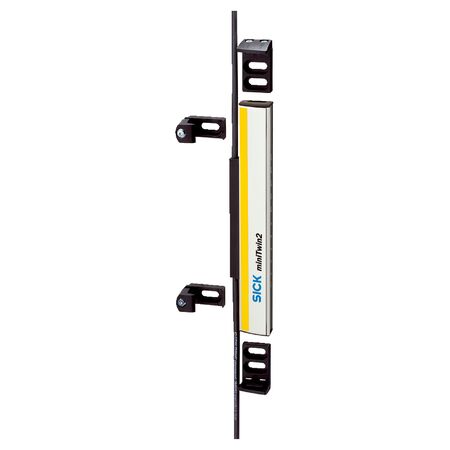

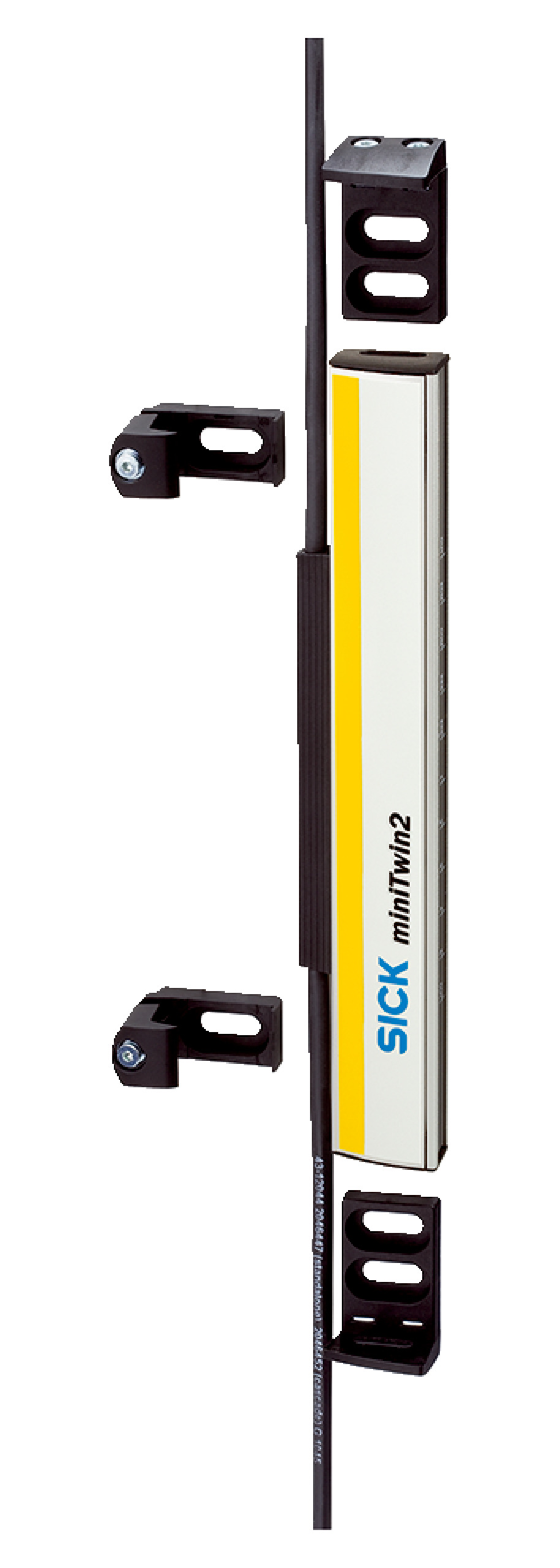

Twin-Stick Safety Light Curtain | MiniTwin2 Cascade System | IP65 Rated | 960mm Protective Field | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial automation safety, featuring a MiniTwin2 cascade system for enhanced machine safeguarding. With a protective field height of 960mm and an IP65 enclosure rating, it ensures reliable operation in demanding environments, making it ideal for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 960mm x 32mm x 15mm
- Weight: 0.34 kg
Key Features
- Twin-Stick system part
- MiniTwin2 as host for 2- or 3-device cascade or middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 960 mm
- Response time: ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- System connection: Male connector M12, 5-pin with 700 mm cable
- Extension connection: Female connector M12, 5-pin with 700 mm cable
- Hard wired configuration method
- LED display elements
- Protection class III
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mounting, wiring, and safety compliance.
Applications
- Industrial automation safety
- Machine safeguarding
- Cascade miniTwin2 device systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing for long product life
- Low power consumption reduces energy use
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK C2MT-09634BBC04FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial automation and machine safety applications.
