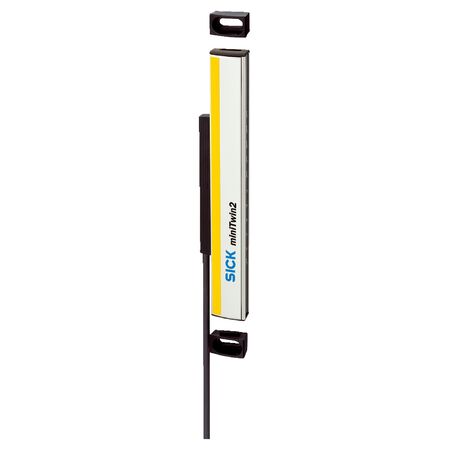

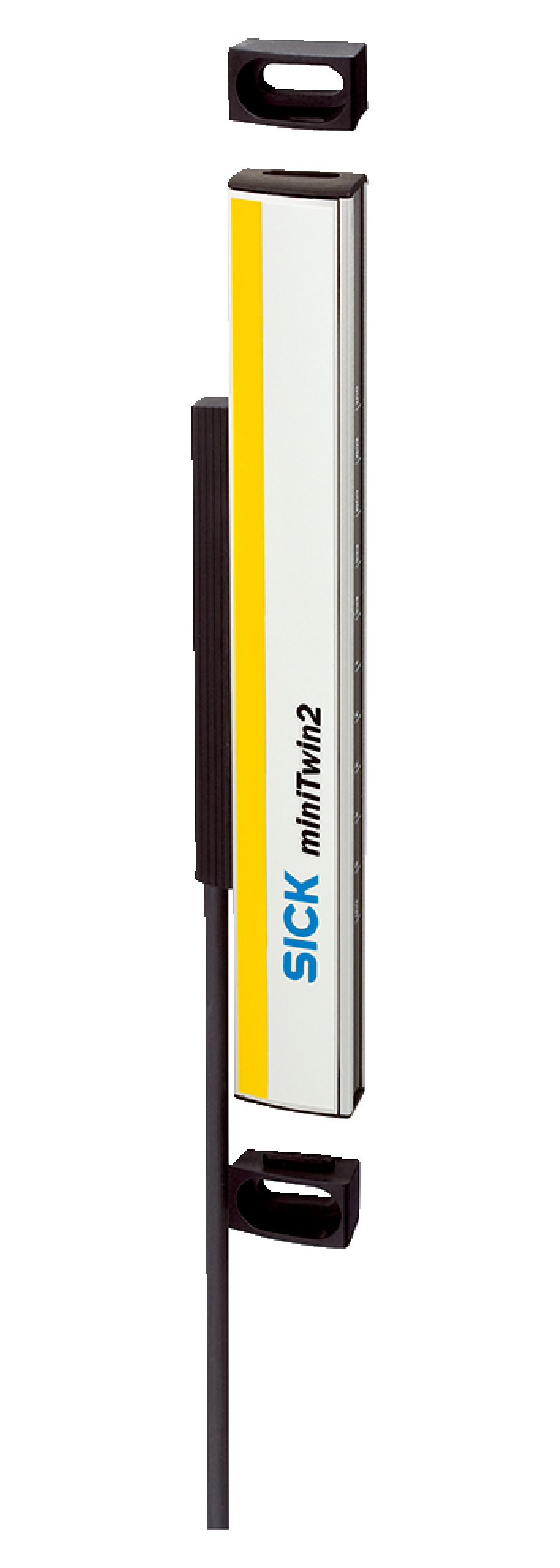

Twin-Stick Safety Light Curtain | Type 2 | SIL 1 | 600mm Protective Field | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a Type 2 design with a protective field height of 600 mm and a resolution of 14 mm. Ideal for protecting personnel in hazardous areas, this safety device ensures reliable operation with a response time of ≤ 14 ms and optical synchronization without separate devices. Built to last with an aluminum alloy housing, it supports energy efficiency and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal test): 58 /s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in event of fault: At least one OSSD is OFF
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Wave length: 850 nm
- Dimensions (H x L x W): 32mm x 600mm x 15mm
- Weight: 0.215 kg
Key Features
- Twin-Stick system part with O-fix bracket mounting
- Resolution of 14 mm with scanning range 0 m to 8 m typical
- Protective field height of 600 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM) included
- Automatic beam coding
- Male connector M12, 5-pin system connection with 700 mm cable
- Hard wired configuration with LED display elements
- Protection class III (EN 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices (OSSDs), short-circuit protected
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65 (EN 60529)
- Operating temperature range -20 °C to +55 °C
- Shock resistance 15 g / 6 ms and vibration resistance 5 to 150 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation systems
- Protection of personnel in hazardous areas
- Use as a standalone miniTwin2 safety device
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum alloy housing reduces material waste
- Low power consumption (≤ 3 A) supports energy efficiency
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK C2MT-06014BBC03FB0 Twin-Stick Safety Light Curtain is available for immediate purchase. Ideal for industrial safety applications requiring reliable personnel protection.
