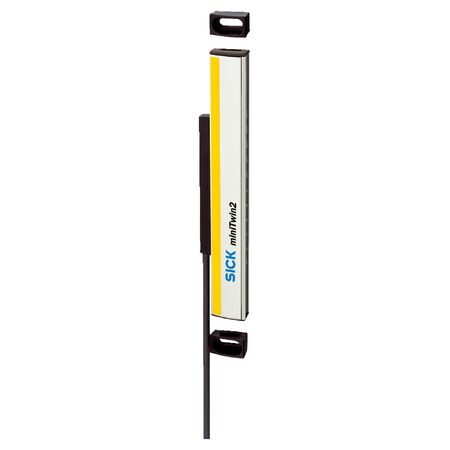

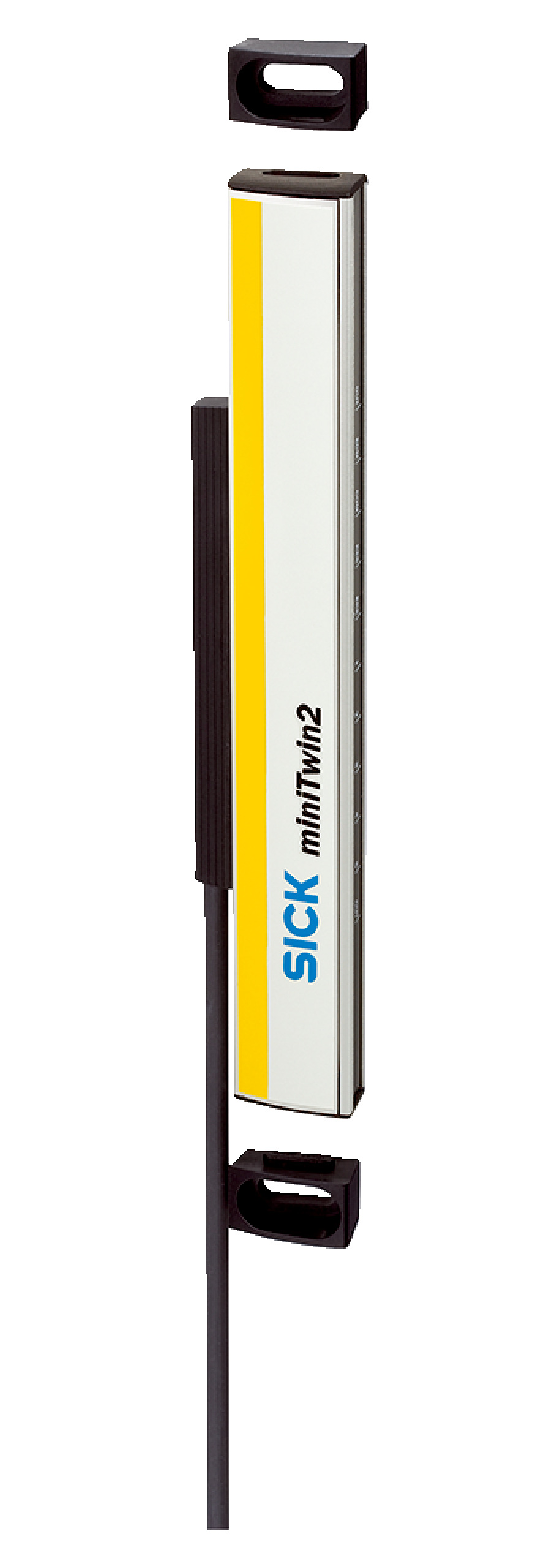

Twin-Stick Safety Light Curtain | Type 2 | SIL 1 | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, providing reliable protection for personnel in hazardous areas. With a Type 2 classification and SIL 1 safety integrity level, it features a protective field height of 1,200 mm and a response time of ≤ 13 ms. Ideal for machinery and automation systems, this light curtain ensures compliance with safety standards while offering durability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal test): 58/s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in event of fault: At least one OSSD is OFF
- System connection cable length: 700 mm
- Permitted cable length: ≤ 20 m
- Ripple: ≤ 10%
- Output switching voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- Output switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Weight: 420 g
- Wavelength: 850 nm
- Dimensions (H x L x W): 32mm x 150mm x 15mm
- Weight: 0.42 kg
Key Features
- Twin-Stick system part
- MiniTwin2 standalone device usage
- O-fix bracket mounting system
- 34 mm resolution
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height of 1,200 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices (OSSDs), short-circuit protected and cross-circuit monitored
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature range -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation systems
- Protection of personnel in hazardous areas
- Use as a standalone miniTwin2 safety device
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption (≤ 3 A) reduces energy usage
- Long mission time of 20 years supports sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C2MT-12034BBC03FB0 Twin-Stick Safety Light Curtain is available for immediate purchase. Ideal for industrial safety applications requiring reliable personnel protection.
