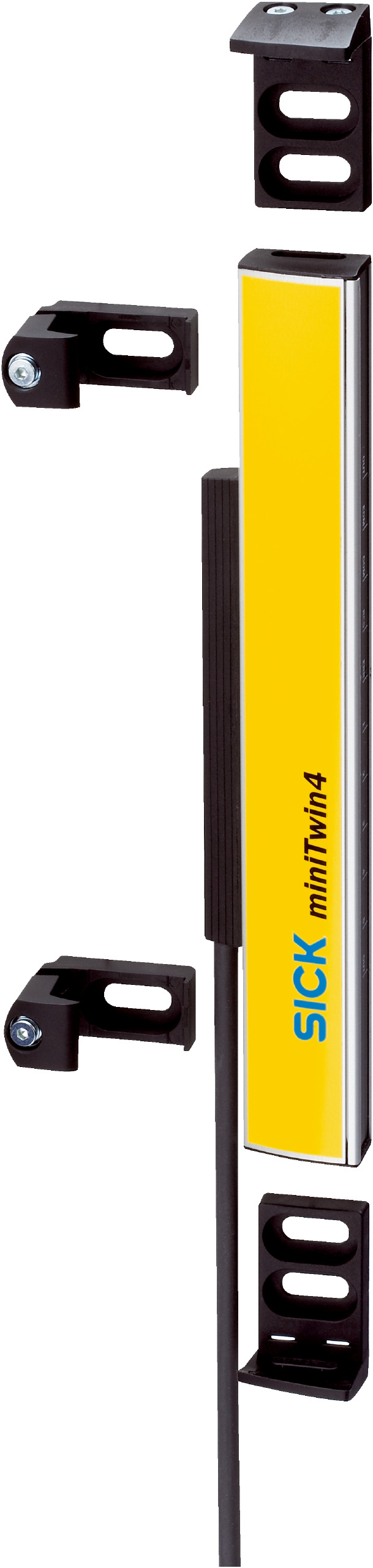

Twin-Stick Safety Light Curtain | Type 4 | 14 mm Resolution | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 14 mm resolution and a protective field height of 900 mm. With a fast response time of ≤ 17 ms and optical synchronization, it ensures reliable safety monitoring for machinery and automation. Built to withstand harsh environments, this light curtain is perfect for manufacturing and processing plants, providing compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 900 mm
- Response time: ≤ 17 ms
- Synchronization: Optical without separate synchronization
- System connection: Male connector M12, 5-pin
- Cable length: 700 mm
- Conductor cross section: 0.34 mm²
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 900mm x 32mm x 15mm
- Weight: 0.32 kg
Key Features
- Type 4 safety light curtain with 14 mm resolution
- Protective field height of 900 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety for machinery and automation
- Use as standalone device or in 2- or 3-device cascades
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum alloy housing reduces material waste
- Low power consumption with 24 V DC supply
- Long service life reduces replacement frequency and waste
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C4MT-09014ABB03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance with safety standards.
