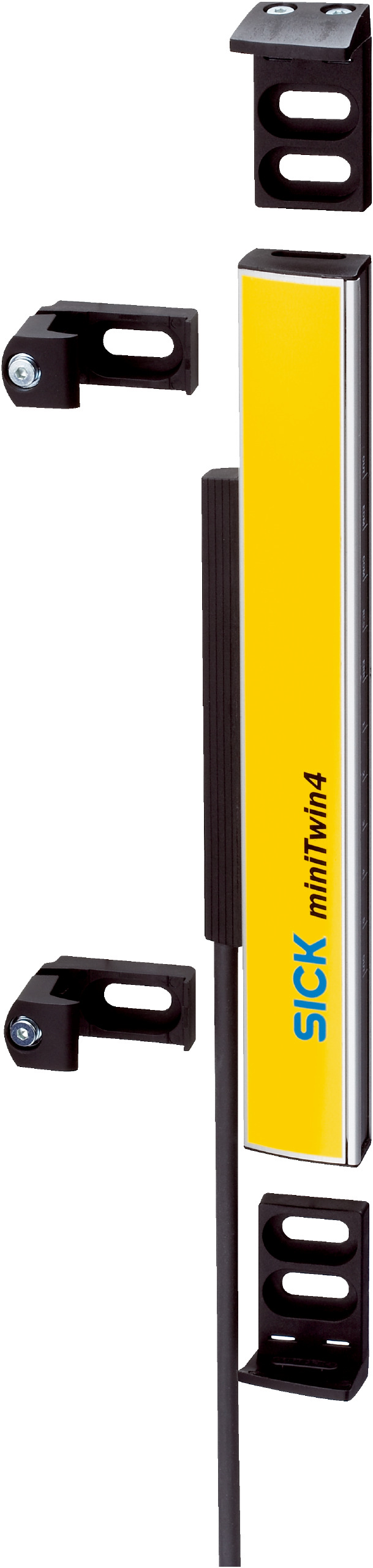

Twin-Stick Safety Light Curtain | Type 4 with SIL 3 | 34 mm Resolution | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a scanning range of 0 m to 5 m and a resolution of 34 mm. With a protective field height of 300 mm and a response time of ≤ 13 ms, it ensures reliable personnel protection in hazardous areas. Built for durability with an IP65 rated enclosure, this safety light curtain is ideal for manufacturing and production lines requiring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 300 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- System connection: Male connector M12, 5-pin with 350 mm cable
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 32mm x 350mm x 15mm
- Weight: 0.115 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Scanning range from 0 m to 5 m with 34 mm resolution
- Protective field height of 300 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Automatic beam coding
- LED display elements for status indication
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards to ensure compliance and proper operation.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics reduces energy use
- Durable aluminum alloy housing extends product life and reduces waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C4MT-03034ABB03DE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance with safety standards.
