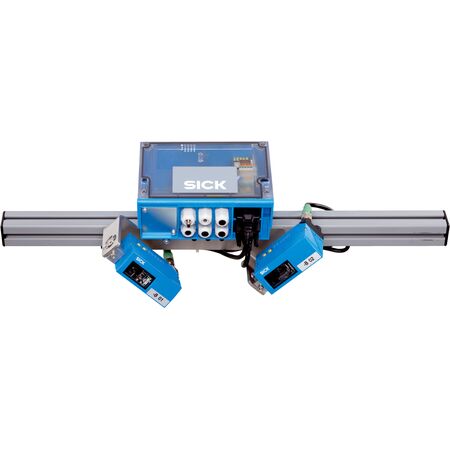

Twinhead CLV650 Barcode Scanner | Auto Focus & 1D Code Support | 50 Codes per Interval | by SICK
The Twinhead CLV650 Barcode Scanner excels in industrial environments, featuring auto focus for precise code reading and supporting 1D code types with resolutions from 0.18 mm to 1.2 mm. Ideal for applications on belt conveyors and sorters, it reads up to 50 codes per interval, ensuring efficient sorting and logistics operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Twinhead CLV650 Barcode Scanner | Auto Focus & 1D Code Support | 50 Codes per Interval | by SICK
Brand: SICK
SKU: 1056482
Alternatively Known As: CLV650 Barcode Scanner, SICK Twinhead Barcode Reader, Industrial Code Reader
Technical Specifications
- Code types: 1D
- Transport speed: 0 m/s to 2.5 m/s depending on code height
- Minimum object distance: 50 mm
- Number of codes per reading interval: 1 to 50
- Module width and 1D code resolution: 0.18 mm to 1.2 mm
- MTBF: 40,000 hours
- MTTR: 5 minutes
- Covered conveyor width: 500 mm
- Conveyor types supported: Belt conveyor, tilt-tray sorter, roller conveyor, cross-belt sorter, pallet
- Object infeed and outfeed: Automatic
- Covered side of object: Single side reading
- Interfaces: Serial (RS-232, RS-422/-485), Ethernet (10/100 MBit/s), CAN bus, PROFIBUS, PROFINET
- Data transmission rates: Serial up to 500 kBaud, CAN bus 20 kbit/s to 1 Mbit/s
- Optical indicators: 6 LEDs plus bar graph display of read rates
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Laser class: 2 (EN 60825-1:2014, IEC 60825-1:2014)
- Dimensions (H x L x W): 1745mm x 1100mm x 1280mm
- Weight: 50 kg
Key Features
- Auto focus for precise code reading
- Supports 1D code types with resolution from 0.18 mm to 1.2 mm
- Reads 1 to 50 codes per reading interval
- Compatible with multiple conveyor types including belt, tilt-tray, roller, and cross-belt sorters
- Serial, Ethernet, CAN bus, PROFIBUS, and PROFINET interfaces available
- 6 LED optical indicators for status and read rate display
- Laser class 2 compliant with EN 60825-1:2014 and IEC 60825-1:2014
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with conveyor systems and compliance with safety standards.
Applications
- Code reading on belt conveyors, tilt-tray sorters, roller conveyors, cross-belt sorters, and pallets
- Automatic object infeed and outfeed for industrial sorting and logistics
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Improves sorting efficiency reducing energy waste in logistics
- Supports automated processes that minimize manual handling and errors
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK Twinhead CLV650 Barcode Scanner is available for immediate purchase, ideal for industrial and logistics applications requiring reliable automatic code reading.
