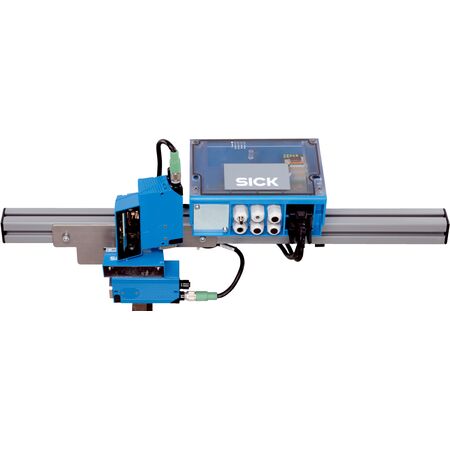

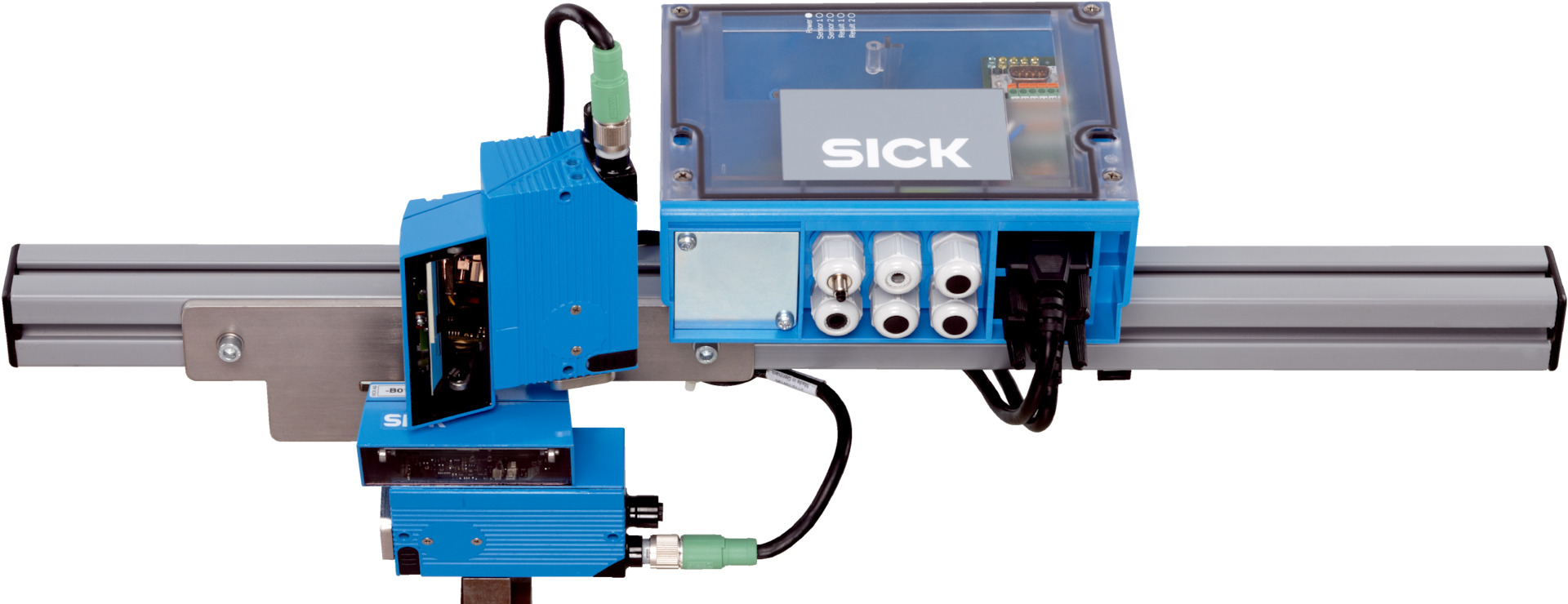

Twinhead CLV650 OSCM Barcode Scanner | Auto Focus & 1D Code Support | High MTBF | by SICK
The Twinhead CLV650 OSCM Barcode Scanner excels in industrial automation with its auto focus feature and support for 1D code types, reading up to 50 codes per interval. Ideal for conveyor systems and logistics, this scanner ensures efficient code reading, reducing errors and waste in your operations. With multiple interface options and a durable design, it's built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Code types: 1D
- Transport speed: 0 m/s to 2.5 m/s depending on code height
- Minimum object distance: 50 mm
- Number of codes per reading interval: 1 to 50
- Module width and 1D code resolution: 0.18 mm to 1.2 mm
- Connection modules: CDM420-0004
- Interfaces: Serial (RS-232, RS-422/-485), Ethernet (10/100 MBit/s), CAN bus, PROFIBUS, PROFINET
- Optical indicators: 6 LEDs plus bar graph display of percentage read rates
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Laser class: 2 (EN 60825-1:2014, IEC 60825-1:2014)
- Dimensions (H x L x W): 1745mm x 1100mm x 1280mm
- Weight: 50 kg
Key Features
- Auto focus for precise code reading
- Supports 1D code types with resolution from 0.18 mm to 1.2 mm
- Reads 1 to 50 codes per reading interval
- Covered conveyor width of 500 mm
- Single side reading capability
- Multiple interface options including Serial (RS-232, RS-422/-485), Ethernet, CAN bus, PROFIBUS, and PROFINET
- Equipped with mirror module and optical indicators (LEDs) for status display
- High MTBF of 40,000 hours and low MTTR of 5 minutes
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with conveyor systems and communication networks.
Applications
- Code reading on belt conveyors, tilt-tray sorters, roller conveyors, cross-belt sorters, and pallets
- Automatic object infeed and outfeed for industrial sorting and logistics
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient code reading reduces errors and waste in logistics and manufacturing processes
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK Twinhead CLV650 OSCM Barcode Scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
