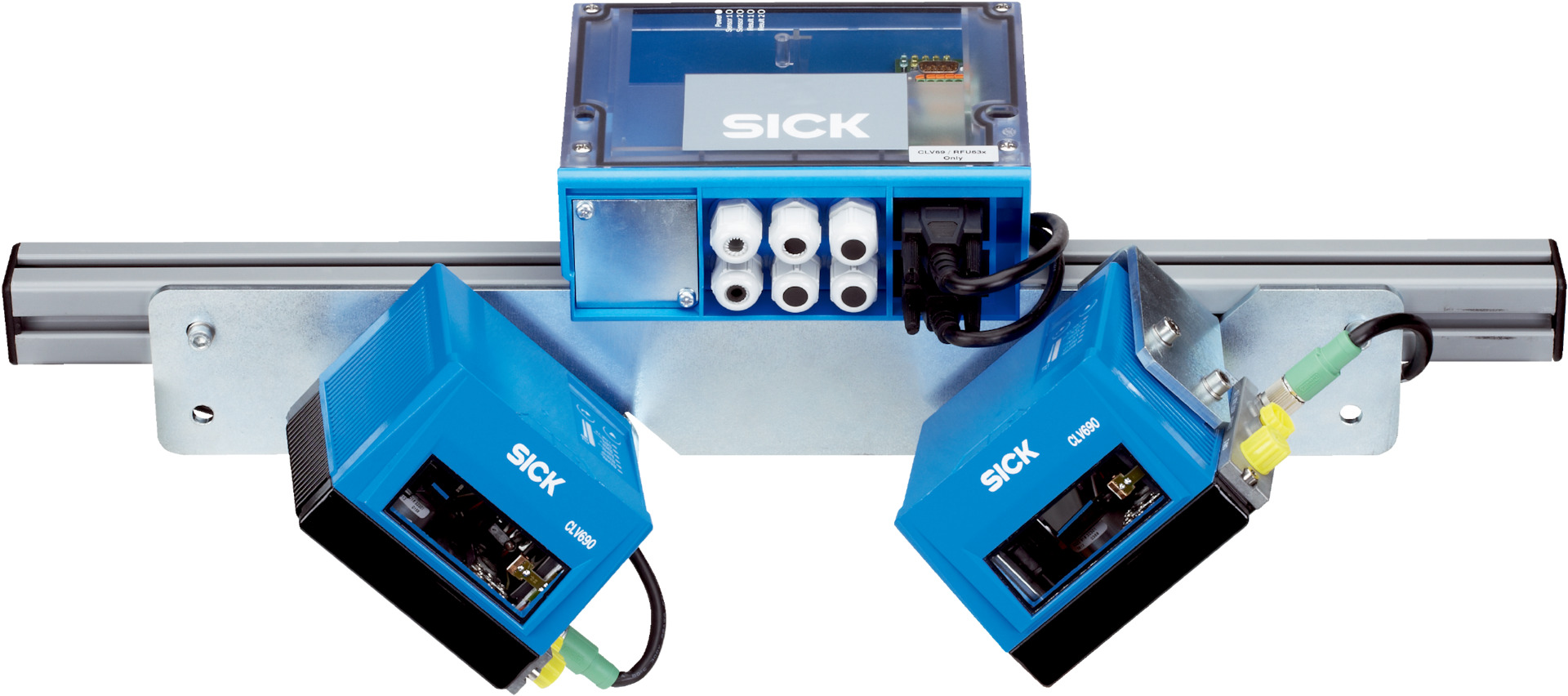

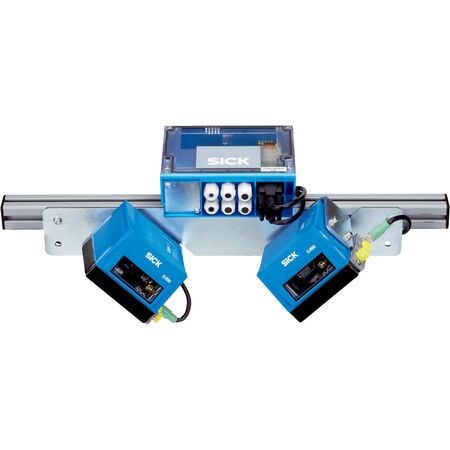

Twinhead CLV690 Barcode Scanner | Auto Focus & 1D Code Support | High MTBF | by SICK
The Twinhead CLV690 barcode scanner excels in industrial applications with its auto focus feature and support for 1D code types, reading up to 50 codes per interval. Designed for seamless integration with various conveyor systems, it ensures efficient code reading on belt conveyors and sorters, making it ideal for logistics and manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Code types: 1D
- Transport speed: 0 m/s to 2.5 m/s depending on code height
- Minimum object distance: 50 mm
- Number of codes per reading interval: 1 to 50
- Module width: 0.3 mm to 0.5 mm
- 1D code resolution: 0.3 mm to 0.5 mm
- Interfaces: Serial (RS-232, RS-422/-485), Ethernet (10/100 MBit/s), CAN bus, PROFIBUS, PROFINET
- Data transmission rate: 20 kbit/s to 1 Mbit/s
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Laser class: 2 (IEC 60825-1:2014), 1 (IEC 60825-1:2014)
- MTBF: 100,000 hours
- MTTR: 5 minutes
- Dimensions (H x L x W): 1745mm x 1100mm x 1280mm
- Weight: 50 kg
Key Features
- Auto focus for precise code reading
- Supports 1D code types with resolution from 0.3 mm to 0.5 mm
- Reads 1 to 50 codes per reading interval
- Automatic object infeed and outfeed
- Single side reading coverage
- Supports multiple conveyor types including belt, tilt-tray, roller, and cross-belt sorters
- Multiple interface options including Serial (RS-232, RS-422/-485), Ethernet, CAN bus, PROFIBUS, and PROFINET
- LED optical indicators for status and read rates
- High MTBF of 100,000 hours and low MTTR of 5 minutes
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with conveyor systems and network interfaces.
Applications
- Code reading on belt conveyors, tilt-tray sorters, roller conveyors, cross-belt sorters, and pallets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves operational efficiency reducing waste and energy consumption in logistics and manufacturing processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK Twinhead CLV690 code reading scanner is available for immediate purchase. Ideal for industrial and logistics applications requiring reliable and fast barcode reading.
