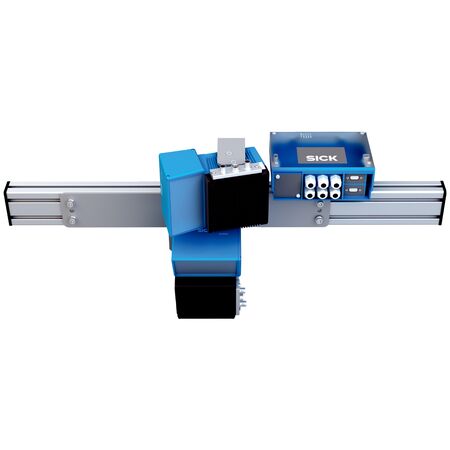

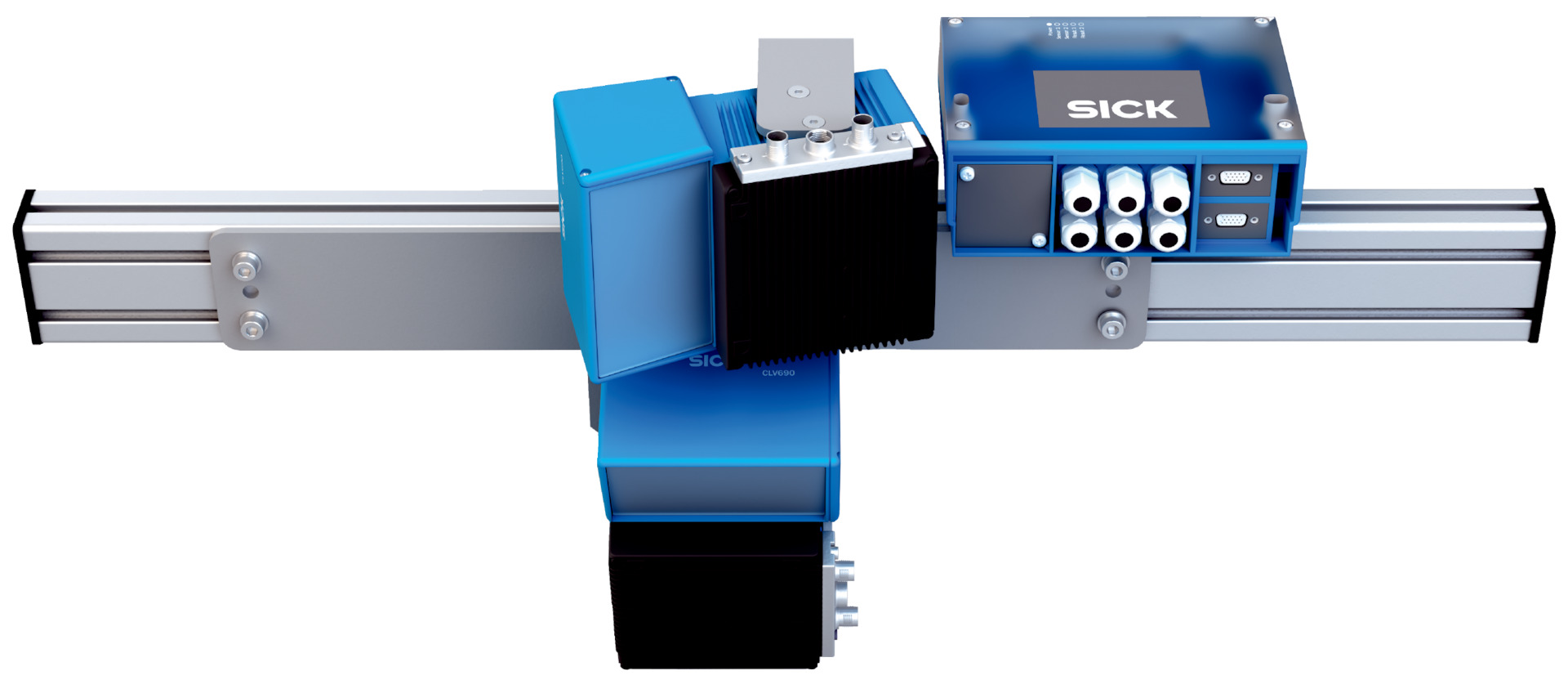

Twinhead CLV690 OSCM | 1D Code Reader | Auto Focus & 800mm Conveyor Width | by SICK
The Twinhead CLV690 OSCM is a high-performance 1D code reader designed for industrial applications. With an auto focus feature and the ability to read 1 to 50 codes per interval, it excels in environments with belt conveyors and sorters. Its robust design supports a conveyor width of up to 800 mm, ensuring efficient object tracking and sorting, making it ideal for manufacturing and logistics operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Code types: 1D
- Transport speed: 0 m/s to 0.5 m/s depending on code height
- Minimum object distance: 50 mm
- Number of codes per reading interval: 1 to 50
- Module width: 0.3 mm to 0.5 mm
- 1D code resolution: 0.3 mm to 0.5 mm
- Covered conveyor width: 800 mm
- Conveyor types supported: Belt conveyor, Tilt-tray sorter, Roller conveyor, Cross-belt sorter, Pallet
- Object infeed and outfeed: Automatic
- Covered side of object: Single side reading
- Interfaces: Serial (RS-232, RS-422/-485), Ethernet (10/100 MBit/s), CAN bus, PROFIBUS, PROFINET
- Optical indicators: 6 LEDs plus bar graph display
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Laser class: 2 (IEC 60825-1:2014) and 1 (IEC 60825-1:2014)
- MTBF: 100,000 hours
- MTTR: 5 minutes
- Dimensions (H x L x W): 1745mm x 1100mm x 1280mm
- Weight: 50 kg
Key Features
- Auto focus for precise code reading
- Supports 1D code types with resolution from 0.3 mm to 0.5 mm
- Reads 1 to 50 codes per reading interval
- Covered conveyor width up to 800 mm
- Single side reading with oscillating mirror module
- Multiple interface options including Serial (RS-232, RS-422/-485), Ethernet, CAN bus, PROFIBUS, and PROFINET
- 6 LED optical indicators and bar graph display for read rate monitoring
- High MTBF of 100,000 hours and low MTTR of 5 minutes
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with conveyor systems and network interfaces.
Applications
- Code reading on belt conveyors, tilt-tray sorters, roller conveyors, cross-belt sorters, and pallets
- Automatic object infeed and outfeed for industrial sorting and tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High MTBF reduces waste and replacement frequency
- Efficient code reading reduces operational downtime and energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK Twinhead CLV690 OSCM code reader is available for immediate purchase, ideal for industrial conveyor and sorting applications.
