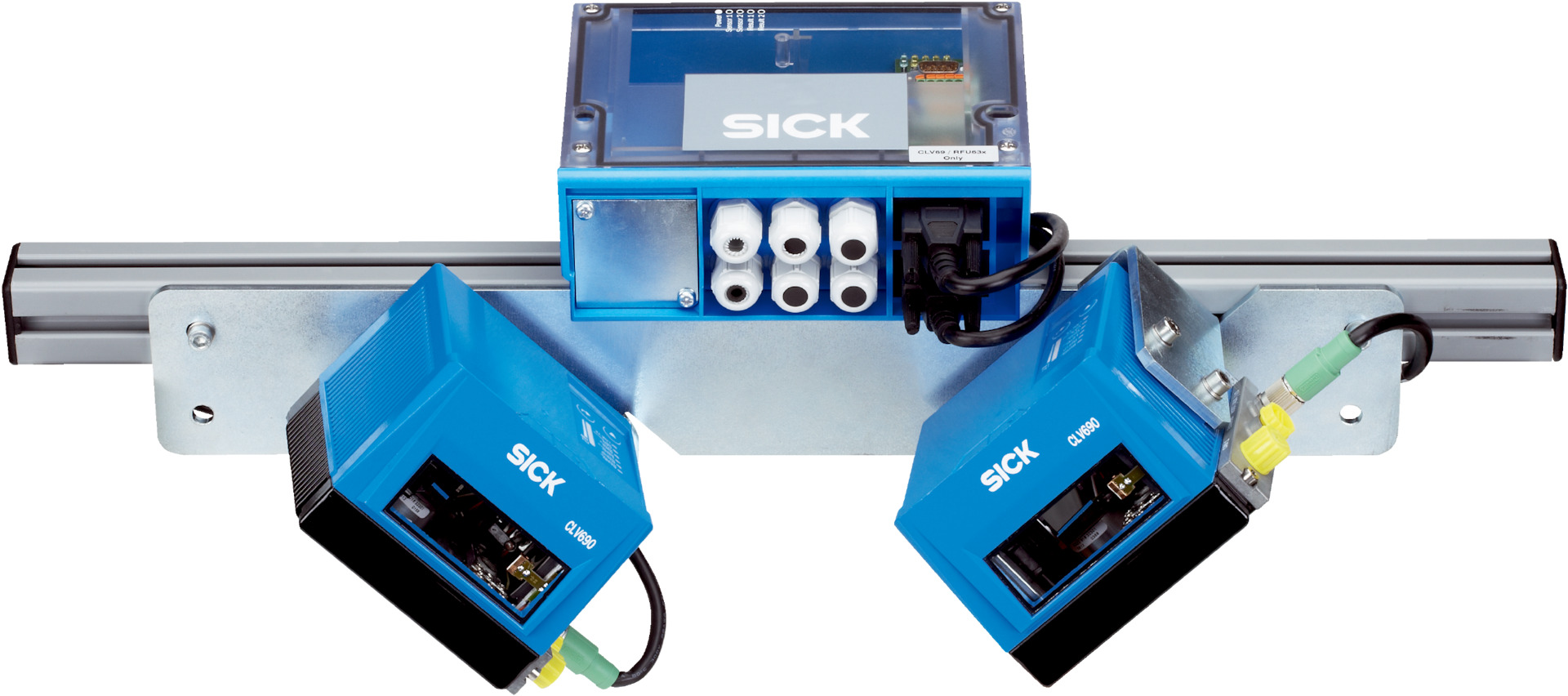

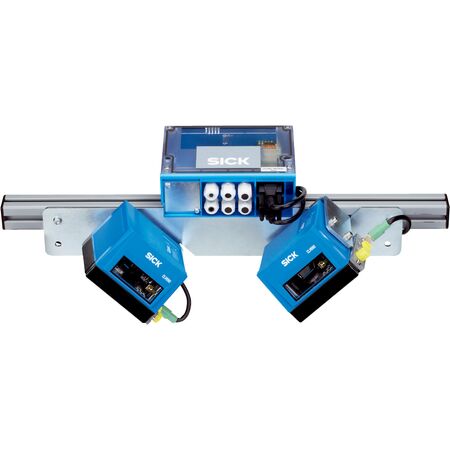

Twinhead CLV691 Barcode Scanner | Auto Focus & 1D Code Support | High MTBF | by SICK
The Twinhead CLV691 Barcode Scanner is designed for efficient code reading on various conveyor systems, featuring auto focus for precise scanning and support for 1D code types. With a high mean time between failures (MTBF) of 100,000 hours, this scanner is perfect for industrial automation, ensuring reliable performance and reduced manual scanning errors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Covered conveyor width: 800 mm
- Conveyor types supported: Belt conveyor, Tilt-tray sorter, Roller conveyor, Cross-belt sorter, Pallet
- Transport speed: 0 m/s to 2.5 m/s depending on code height
- Minimum object distance: 50 mm
- Code types: 1D
- Data transmission rates: Serial up to 500 kBaud, CAN bus 20 kbit/s to 1 Mbit/s, Ethernet 10/100 MBit/s
- Laser class: 2 (IEC 60825-1:2014) and 1 (IEC 60825-1:2014)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Connection modules: CDM420-0007
- Dimensions (H x L x W): 1745mm x 1100mm x 1280mm
- Weight: 50 kg
Key Features
- Auto focus for precise code reading
- Supports 1D code types with resolution from 0.4 mm to 1.2 mm
- Reads 1 to 50 codes per reading interval
- Automatic object infeed and outfeed
- Single side reading coverage
- Supports multiple interfaces including Serial (RS-232, RS-422/-485), Ethernet, CAN bus, PROFIBUS, and PROFINET
- Equipped with optical indicators including 6 LEDs and a bar graph display for read rates
- High MTBF of 100,000 hours and low MTTR of 5 minutes
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with conveyor systems and compliance with safety standards.
Applications
- Code reading on belt conveyors, tilt-tray sorters, roller conveyors, cross-belt sorters, and pallet handling systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces manual scanning errors and increases automation efficiency, lowering operational energy waste
- Supports automated sorting which can optimize logistics and reduce carbon footprint
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK Twinhead CLV691 Code Reading Scanner is available for immediate purchase, ideal for industrial automation and conveyor system applications.
