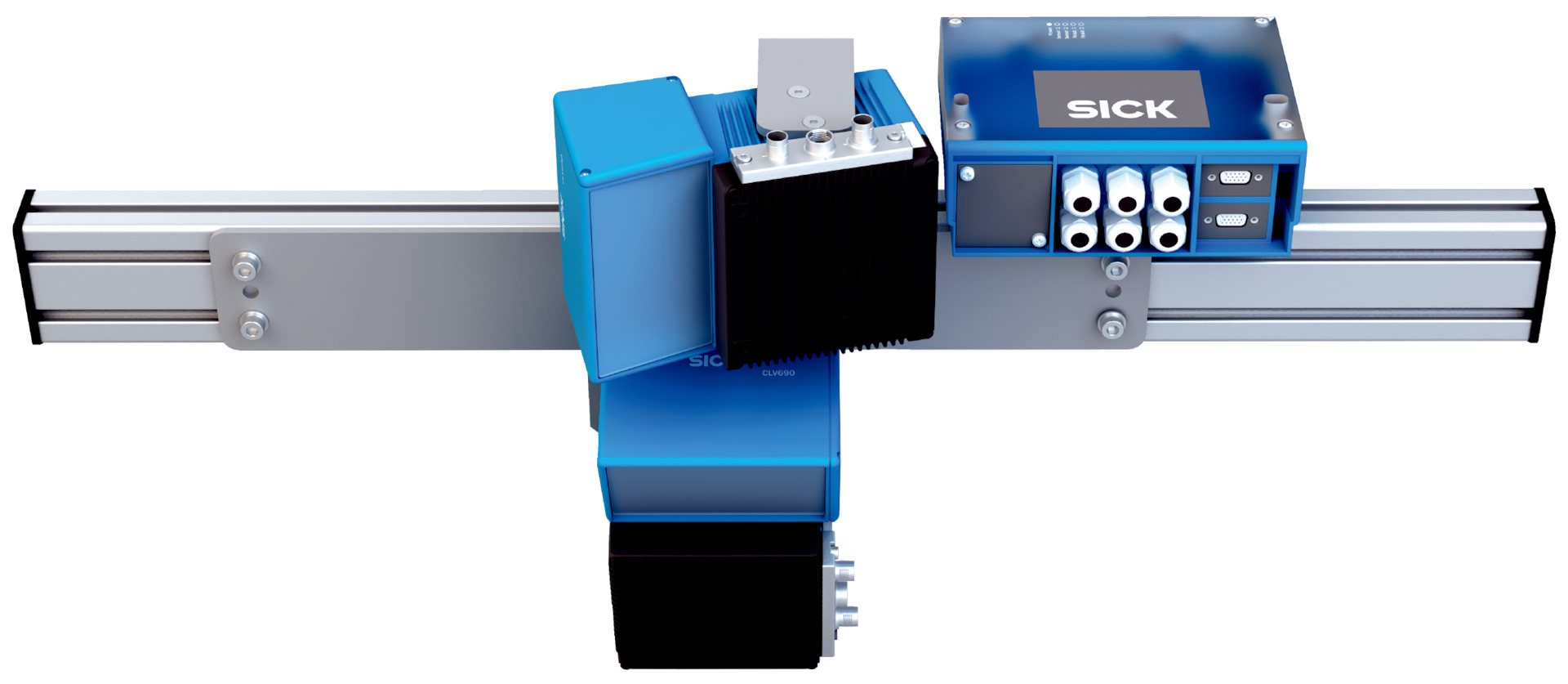

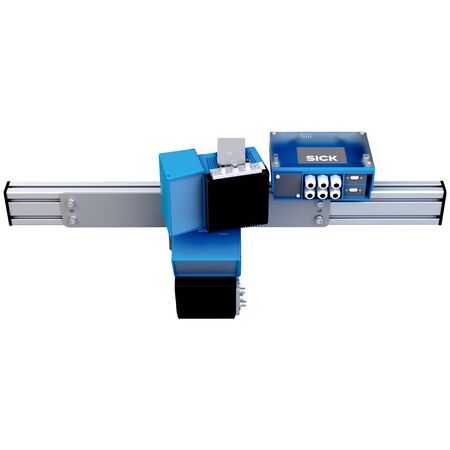

Twinhead CLV691 OSCM Industrial Code Reader | Auto Focus & 1D Code Support | Oscillating Mirror | by SICK
The Twinhead CLV691 OSCM is an advanced industrial code reader designed for efficient code reading on conveyor systems. With auto focus for precise scanning and support for 1D code types, it can read between 1 to 50 codes per interval. Ideal for logistics and sorting applications, this device operates in ambient temperatures from 0 °C to +40 °C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Code types supported: 1D
- Transport speed: 0 m/s to 0.5 m/s depending on code height
- Minimum object distance: 50 mm
- Number of codes per reading interval: 1 to 50
- Module width: 0.4 mm to 1.2 mm
- MTBF: 100,000 hours
- MTTR: 5 minutes
- Connection modules: CDM420-0007
- Interfaces: Serial (RS-232, RS-422/-485), Ethernet (10/100 MBit/s), CAN bus, PROFIBUS, PROFINET
- Optical indicators: 6 LEDs plus bar graph display of percentage read rates
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Laser class: 2 (IEC 60825-1:2014)
- Dimensions (H x L x W): 1745mm x 1100mm x 1280mm
- Weight: 50 kg
Key Features
- Auto focus for precise code reading
- Supports 1D code types with resolution from 0.4 mm to 1.2 mm
- Reads 1 to 50 codes per reading interval
- Covered conveyor width up to 800 mm
- Single side reading with oscillating mirror module
- Multiple interface options including Serial (RS-232, RS-422/-485), Ethernet, CAN bus, PROFIBUS, and PROFINET
- Ambient operating temperature range from 0 °C to +40 °C
- Laser class 2 (IEC 60825-1:2014)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with conveyor systems and compliance with safety standards.
Applications
- Code reading on belt conveyors, tilt-tray sorters, roller conveyors, cross-belt sorters, and pallets
- Automatic object infeed and outfeed for industrial sorting and logistics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves sorting efficiency reducing energy waste in logistics
- Supports automated processes that reduce manual handling and associated environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK Twinhead CLV691 OSCM is available for immediate purchase, ideal for industrial automation and logistics applications requiring reliable code reading on conveyor systems.
