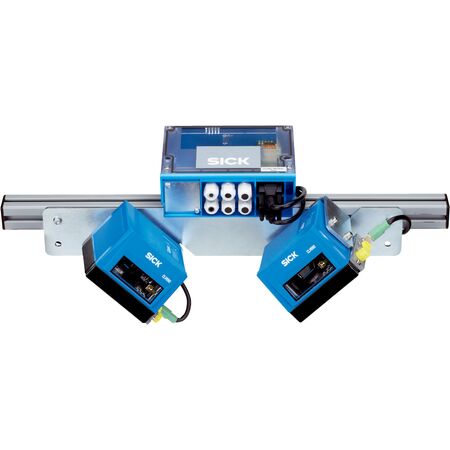

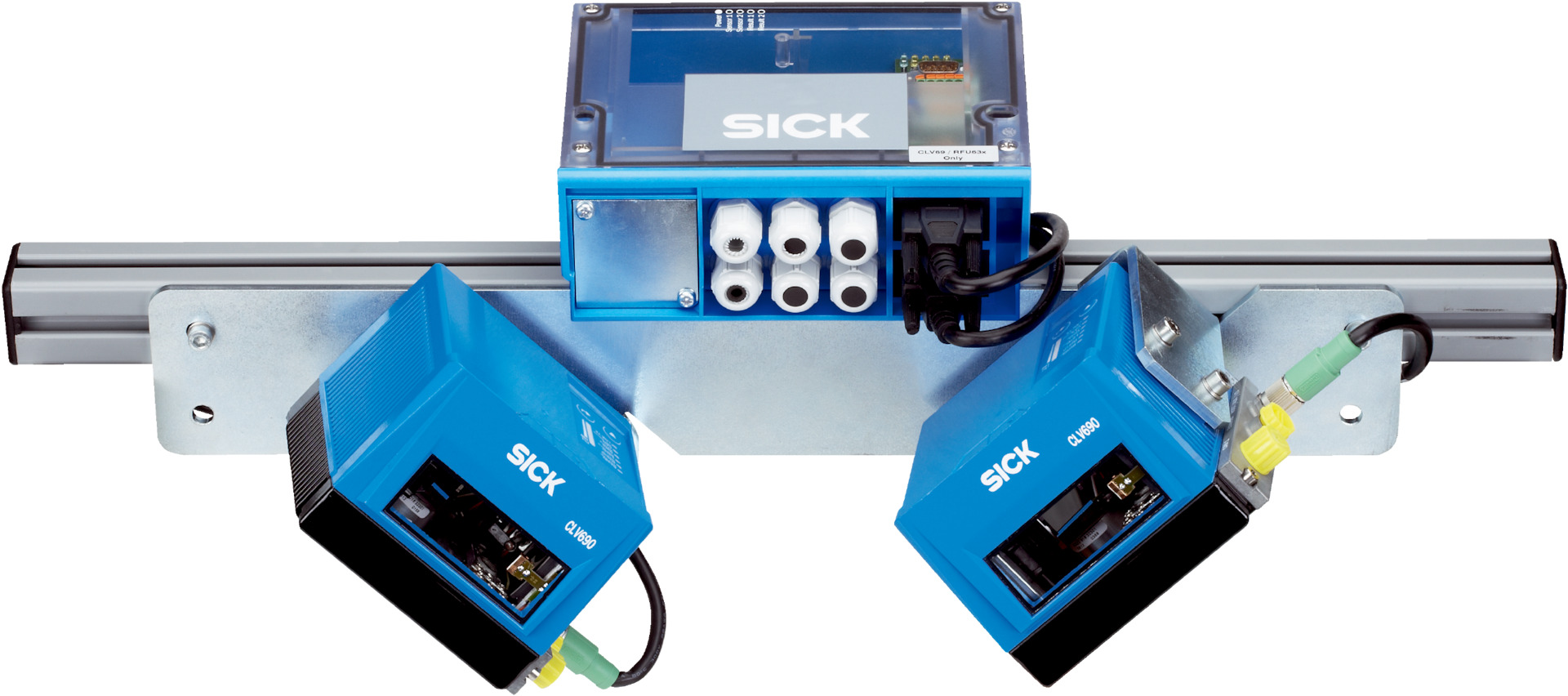

Twinhead CLV692 Barcode Scanner | Auto Focus & 1D Code Support | High MTBF | by SICK
The Twinhead CLV692 barcode scanner excels in industrial environments, supporting 1D code types with resolutions from 0.18 mm to 0.35 mm. With an auto focus feature and the ability to read 1 to 50 codes per interval, it's perfect for applications on belt conveyors and sorting systems. Designed for durability, it boasts a high MTBF of 100,000 hours, making it a reliable choice for logistics and sorting operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Code types supported: 1D
- Transport speed: 0 m/s to 2.5 m/s depending on code height
- Minimum object distance: 50 mm
- Number of codes per reading interval: 1 to 50
- Module width and 1D code resolution: 0.18 mm to 0.35 mm
- Interfaces: Serial (RS-232, RS-422/-485), Ethernet (10/100 MBit/s), CAN bus, PROFIBUS, PROFINET
- Data transmission rates: Serial up to 500 kBaud, CAN bus 20 kbit/s to 1 Mbit/s, Ethernet TCP/IP
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Laser class: 2 (IEC 60825-1:2014) and 1 (IEC 60825-1:2014)
- Optical indicators: 6 LEDs plus bar graph display of percentage read rates
- Dimensions (H x L x W): 1745mm x 1100mm x 1280mm
- Weight: 50 kg
Key Features
- Auto focus for precise code reading
- Supports 1D code types with resolution from 0.18 mm to 0.35 mm
- Reads 1 to 50 codes per reading interval
- Compatible with multiple conveyor types including belt, tilt-tray, roller, and cross-belt sorters
- Serial, Ethernet, CAN bus, PROFIBUS, and PROFINET interfaces available
- Equipped with optical LED indicators for status and read rates
- High MTBF of 100,000 hours and low MTTR of 5 minutes
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper integration with conveyor systems and communication networks.
Applications
- Code reading on belt conveyors, tilt-tray sorters, roller conveyors, cross-belt sorters, and pallets
- Automatic object infeed and outfeed for industrial sorting and logistics
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Improves sorting efficiency reducing energy waste in logistics
- Durable design with long MTBF reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK Twinhead CLV692 code reading scanner is available for immediate purchase, ideal for industrial sorting and logistics applications.
