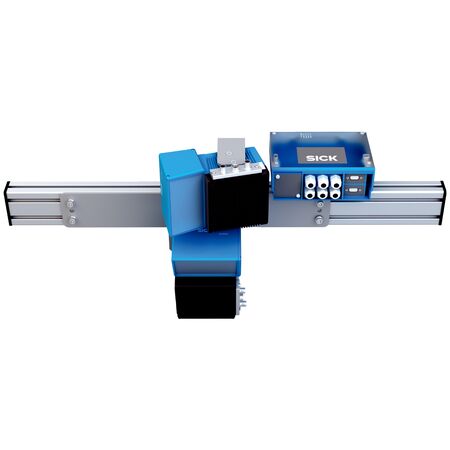

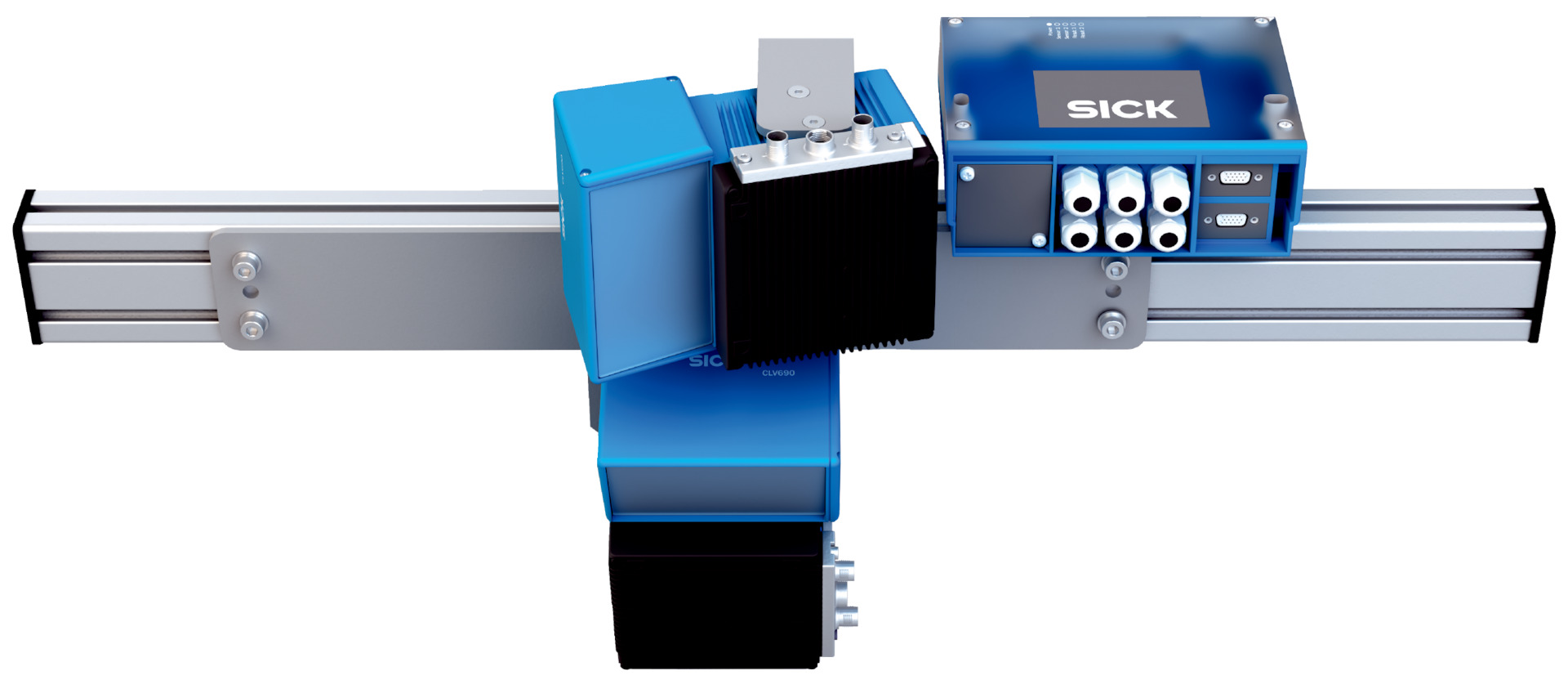

Twinhead CLV692 OSCM Barcode Scanner | Auto Focus & 1D Code Support | 500 mm Conveyor Width | by SICK
The Twinhead CLV692 OSCM Barcode Scanner excels in industrial automation with its auto focus feature and support for 1D code types, offering resolutions from 0.18 mm to 0.35 mm. Ideal for applications on belt conveyors and sorters, it ensures efficient code reading with a covered conveyor width of up to 500 mm. With multiple interface options and a robust design, this scanner is perfect for logistics and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Code types supported: 1D
- Transport speed: 0 m/s to 0.5 m/s depending on code height
- Minimum object distance: 50 mm
- Number of codes per reading interval: 1 to 50
- 1D code resolution: 0.18 mm to 0.35 mm
- Covered conveyor width: 500 mm
- Conveyor types supported: Belt conveyor, Tilt-tray sorter, Roller conveyor, Cross-belt sorter, Pallet
- Object infeed and outfeed: Automatic
- Covered side of object: Single side reading
- Interfaces: Serial (RS-232, RS-422/-485), Ethernet (10/100 MBit/s), CAN bus, PROFIBUS, PROFINET
- Optical indicators: 6 LEDs plus bar graph display
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Laser class: 2 (IEC 60825-1:2014) and 1 (IEC 60825-1:2014)
- MTBF: 100,000 hours
- MTTR: 5 minutes
- Dimensions (H x L x W): 1745mm x 1100mm x 1280mm
- Weight: 50 kg
Key Features
- Auto focus for precise code reading
- Supports 1D code types with resolution from 0.18 mm to 0.35 mm
- Reads 1 to 50 codes per reading interval
- Covered conveyor width up to 500 mm
- Oscillating mirror module included for enhanced scanning
- Multiple interface options including Serial (RS-232, RS-422/-485), Ethernet, CAN bus, PROFIBUS, and PROFINET
- Optical indicators with 6 LEDs and bar graph display for read rates
- MTBF of 100,000 hours and MTTR of 5 minutes
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with conveyor systems and compliance with safety standards.
Applications
- Code reading on belt conveyors, tilt-tray sorters, roller conveyors, cross-belt sorters, and pallets
- Automatic object infeed and outfeed for industrial sorting and logistics
- Single side reading of codes in automated material handling systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High MTBF reduces waste and replacement frequency
- Efficient code reading minimizes operational downtime and energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK Twinhead CLV692 OSCM code reader is available for immediate purchase, ideal for industrial automation and logistics applications requiring reliable and precise code reading.
