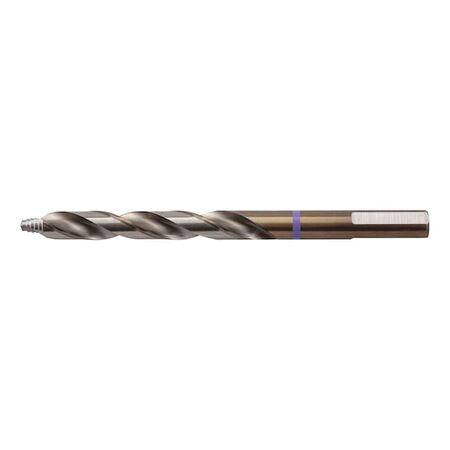

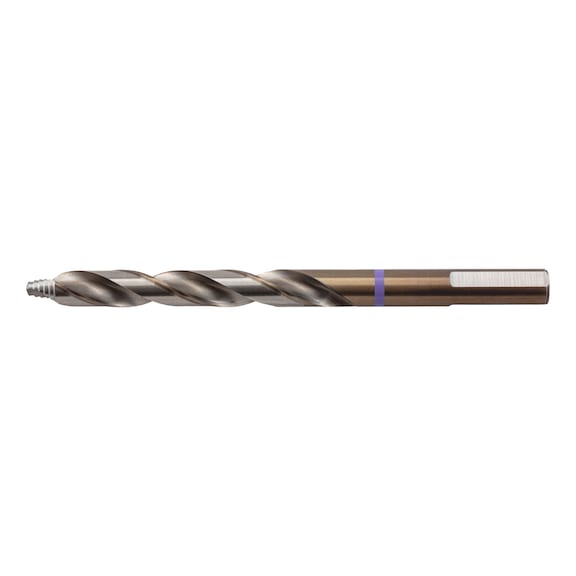

Twist Drill Bit HSCO DIN 338 SMART STEP | High-Speed Cobalt Steel | Stepped Tip Geometry | Precision Drilling | by WURTH
The Twist Drill Bit HSCO DIN 338 SMART STEP is engineered for high-precision drilling in stainless steel, titanium, and hardwood. Featuring innovative SMART STEP technology and a newly designed stepped tip geometry, this drill bit ensures improved accuracy and efficiency. Ideal for professionals seeking reliable performance in metalworking and woodworking applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Twist Drill Bit HSCO DIN 338 SMART STEP | High-Speed Cobalt Steel | Stepped Tip Geometry | Precision Drilling | by WURTH
Brand: WURTH
SKU: 626940320
Alternatively Known As: HSCO Drill Bit, SMART STEP Drill Bit, High-Speed Cobalt Drill Bit, DIN 338 Drill Bit
Technical Specifications
- Material: High-Speed Cobalt Steel (HSCO)
- Standard: DIN 338
- Technology: SMART STEP from diameter 2.5 mm
- Suitable for materials: Stainless steel (V2A, V4A), heat-resistant steels, titanium, conventional steel up to 1200 N/mm², cast iron, non-ferrous metals, hardwood, softwood
- Tip geometry: Newly designed stepped drill bit tip
- Special note: Extended drill tip for blind holes
- Dimensions (H x L x W): 10mm x 80mm x 10mm
- Weight: 0.1 kg
Key Features
- Multi-performance drill bit with SMART STEP technology from diameter 2.5 mm
- Newly designed stepped drill bit tip geometry for improved precision
- Suitable for manually drilled high-precision circular holes
- Extended drill tip for blind holes
Professional Installation Requirements
- Use with appropriate drilling equipment by trained personnel for best results and safety.
Applications
- High-precision circular holes in stainless steel (V2A, V4A)
- Heat-resistant steels and titanium drilling
- General applications in conventional steel up to 1200 N/mm² strength
- Drilling in cast iron, non-ferrous metals, hardwood, and softwood
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The WURTH Twist Drill Bit HSCO DIN 338 SMART STEP is available now for immediate purchase. Ideal for precision drilling in metalworking and woodworking applications.
