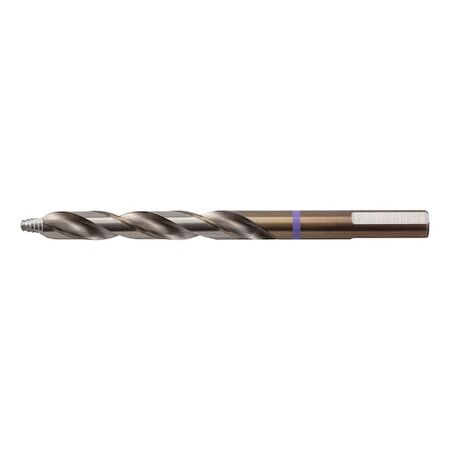

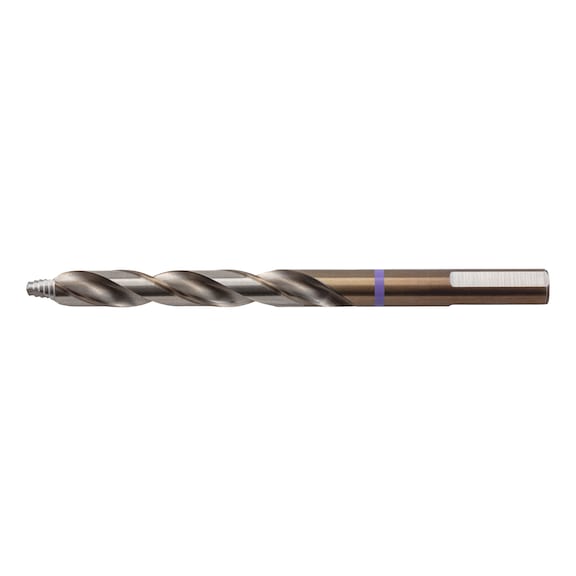

Twist Drill Bit HSCO DIN 338 SMART STEP | High-Speed Cobalt Steel | Stepped Tip Geometry | by WURTH
The Twist Drill Bit HSCO DIN 338 SMART STEP is engineered for high-precision drilling in various materials, including stainless steel, titanium, and hardwood. Featuring unique SMART STEP technology and a newly designed stepped tip geometry, this drill bit ensures improved accuracy and performance. Ideal for both metalworking and woodworking applications, it’s perfect for achieving clean, circular holes without the need for professional installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Twist Drill Bit HSCO DIN 338 SMART STEP | High-Speed Cobalt Steel | Stepped Tip Geometry | by WURTH
Brand: WURTH
SKU: 626940310
Alternatively Known As: HSCO Drill Bit, SMART STEP Drill Bit, High-Speed Cobalt Drill Bit, DIN 338 Drill Bit
Technical Specifications
- Material: High-Speed Cobalt Steel (HSCO)
- Standard: DIN 338
- Technology: SMART STEP from diameter 2.5 mm
- Suitable for materials: Stainless steel (V2A, V4A), heat-resistant steels, titanium, conventional steel up to 1200 N/mm², cast iron, non-ferrous metals, hardwood, softwood
- Tip geometry: Newly designed stepped drill bit tip
- Note: Extended drill tip for blind holes
- Dimensions (H x L x W): 10mm x 100mm x 10mm
- Weight: 0.1 kg
Key Features
- Multi-performance drill bit with unique SMART STEP technology from diameter 2.5 mm
- Newly designed stepped drill bit tip geometry for improved precision
- Suitable for manually drilled high-precision holes in almost all materials
Professional Installation Requirements
- No professional installation required; suitable for manual drilling with appropriate drill machines.
Applications
- High-precision circular holes in stainless steel (V2A, V4A)
- Drilling in heat-resistant steels and titanium
- General applications in conventional steel up to 1200 N/mm² strength
- Suitable for cast iron, non-ferrous metals, hardwood, and softwood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The WURTH Twist Drill Bit HSCO DIN 338 SMART STEP is available for immediate purchase, ideal for precision drilling in metalworking and woodworking applications.
