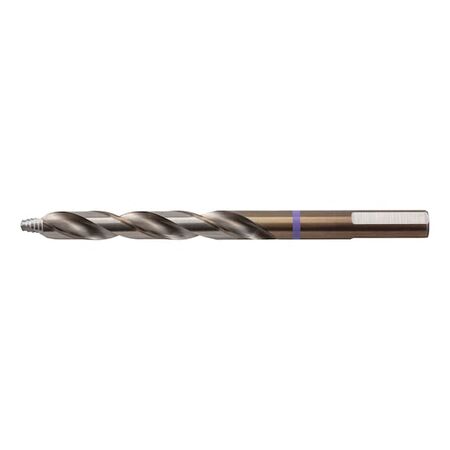

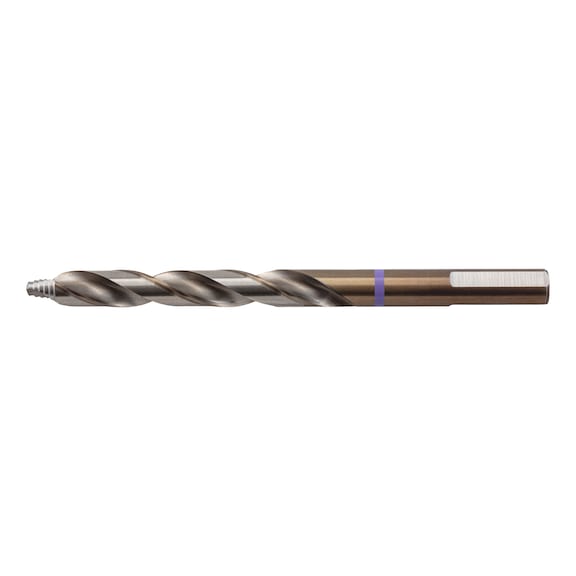

Twist Drill Bit HSCO DIN 338 SMART STEP | High-Speed Cobalt Steel | Stepped Tip Geometry | by WURTH
The Twist Drill Bit HSCO DIN 338 SMART STEP is engineered for high-precision drilling in various materials, including stainless steel, titanium, and hardwood. Featuring innovative SMART STEP technology and a newly designed stepped tip geometry, this drill bit ensures improved accuracy and performance for manual drilling applications. Ideal for metalworking and woodworking, it delivers exceptional results in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Twist Drill Bit HSCO DIN 338 SMART STEP | High-Speed Cobalt Steel | Stepped Tip Geometry | by WURTH
Brand: WURTH
SKU: 626941450
Alternatively Known As: HSCO Drill Bit, SMART STEP Drill Bit, High-Speed Cobalt Drill Bit, DIN 338 Drill Bit
Technical Specifications
- Material: High-Speed Cobalt Steel (HSCO)
- Standard: DIN 338
- Technology: SMART STEP from diameter 2.5 mm
- Suitable for: Stainless steel (V2A, V4A), heat-resistant steels, titanium, conventional steel up to 1200 N/mm², cast iron, non-ferrous metals, hardwood, softwood
- Tip Geometry: Newly designed stepped drill bit tip
- Use: Manual drilling of high-precision circular holes
- Dimensions (H x L x W): 10mm x 100mm x 10mm
- Weight: 0.1 kg
Key Features
- Multi-performance drill bit with SMART STEP technology from diameter 2.5 mm
- Newly designed stepped drill bit tip geometry for improved precision
- Suitable for manually drilled high-precision holes in various materials
Professional Installation Requirements
- No professional installation required; suitable for manual use with appropriate drilling equipment.
Applications
- High-precision circular holes in stainless steel (V2A, V4A)
- Heat-resistant steels and titanium drilling
- General applications in conventional steel up to 1200 N/mm² strength
- Drilling in cast iron, non-ferrous metals, hardwood, and softwood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The WURTH Twist Drill Bit HSCO DIN 338 SMART STEP is available for immediate purchase, ideal for precision drilling in metalworking and woodworking applications.
