Twister Wire Connector Model 341 | 0.5-6mm² Wire Range | 600V Voltage Rating | Durable Copolymer Shell | Pack of 150 by Ideal Electrical
Twister wire connector model 341 with a 0.5-6mm² wire range and 600V voltage rating—ideal for residential and commercial electrical wiring. Built for secure connections, featuring a durable copolymer shell and comfortable swept wings for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

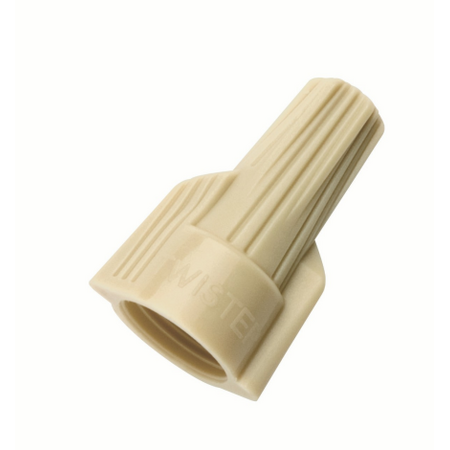

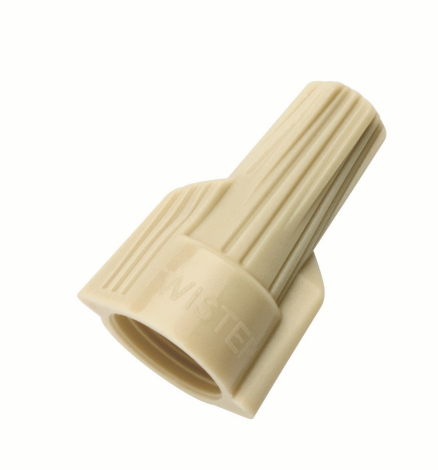

Product Name/Title: Twister® Wire Connector Model 341 Tan Jar of 150
Brand: Ideal Electrical
SKU: IDL30-241JA
Alternatively Known As: Twister Wire Connector, Wire Nut Connector, Electrical Wire Connector, Twist On Wire Connector
Technical Specifications
- Wire Range: 0.5-6mm² (minimum 3 x 0.5mm² to maximum 2 x 6mm²)
- Voltage Rating: 600V
- Current Rating: 41A
- Stripping Length: 13 mm
- Compliance: BS 7671:2018 (18th Edition), IEC 60998-1, IEC 60998-2-4, UL 486C
- Certifications: CE, UKCA, UL Listed
- Material: Copolymer shell with expanding live-action square-cut spring
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Comfortable swept wings offer extra leverage and less effort on large wire combinations
- Expanding square-wire spring supports a wide range of common wiring configurations
- Durable copolymer shell expands for smooth, progressive tightening providing dependable connections
- Hexagonal top with ribbed cap allows quick fingertip start and use of standard 5/16" nut driver for fast installation
- Quick take-up on even the toughest combinations including solid-to-stranded wires
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential construction wiring
- Electrical wiring connections requiring solid-to-stranded wire combinations
- General electrical wiring projects needing secure wire connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Supports safe and secure electrical connections, reducing risk of electrical faults and energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Ideal Electrical for detailed warranty terms.
Available Now
The Twister® Wire Connector Model 341 Tan Jar of 150 is available for immediate purchase, ideal for residential and commercial electrical wiring applications.
