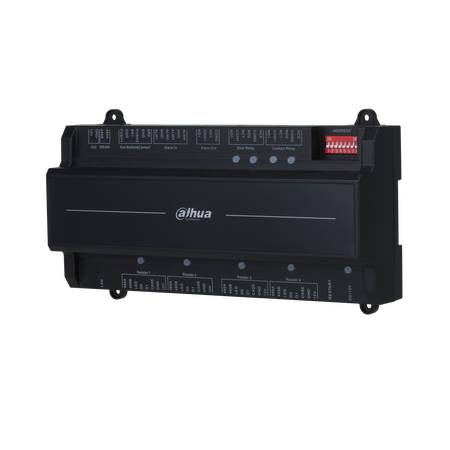

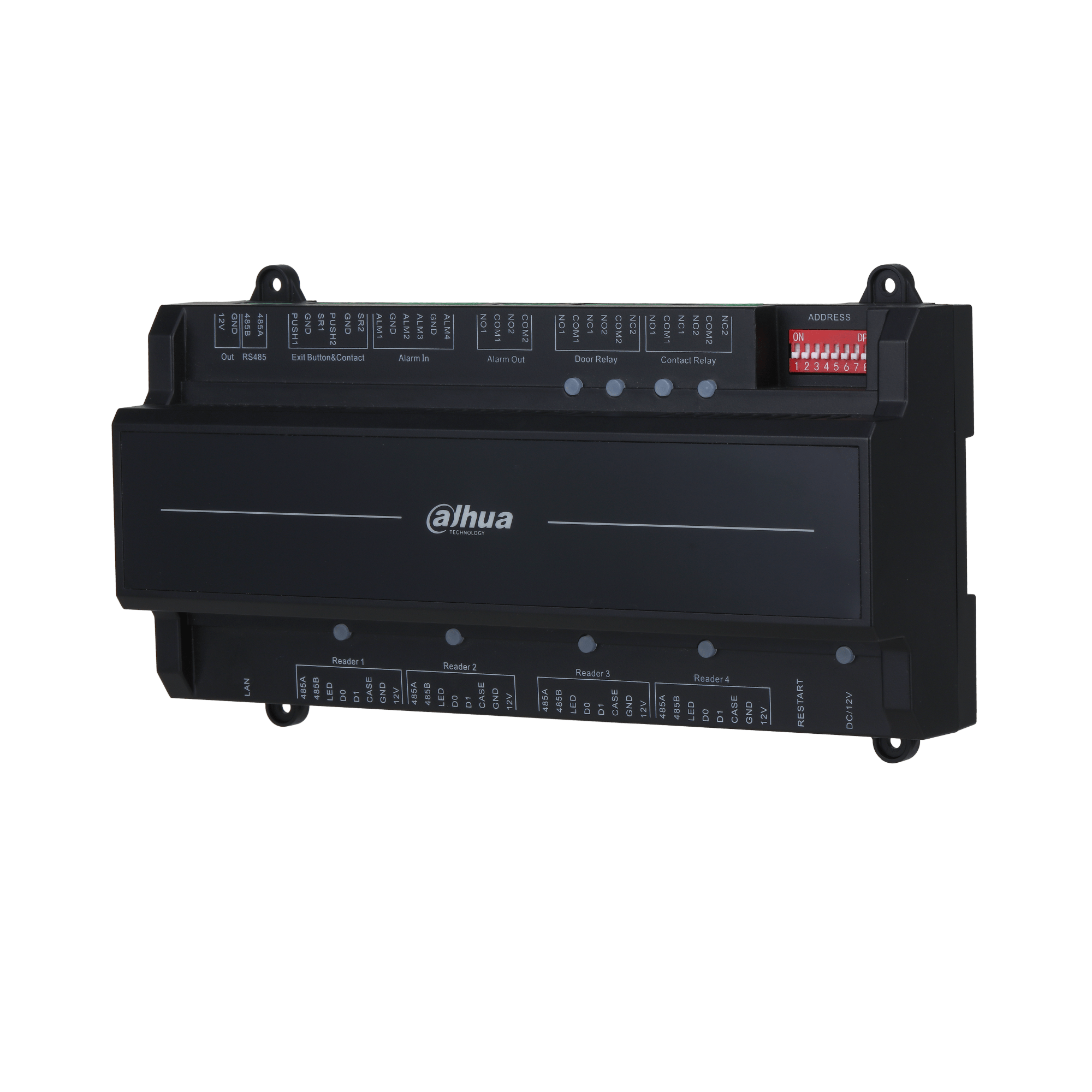

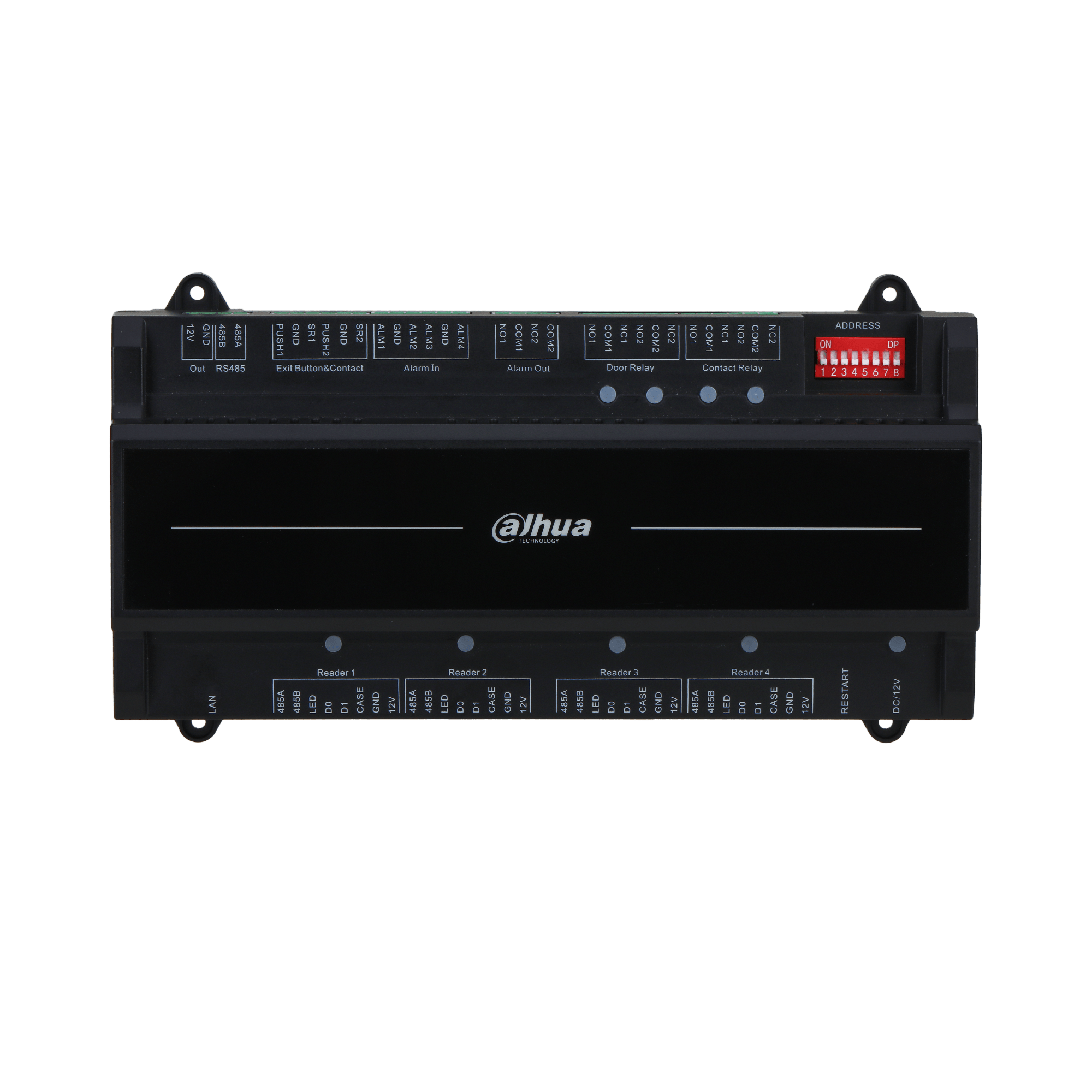

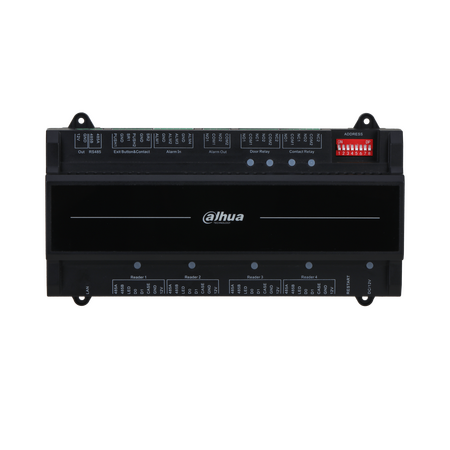

Two Door Slave Access Controller | 100,000 User Capacity | TCP/IP & RS-485 Support | PoE Enabled by Dahua Technology
Two door slave access controller with a 100,000 user capacity and TCP/IP & RS-485 support—ideal for commercial security management. Built for efficient access control, with PoE capability and extensive alarm features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Two Door Slave Access Controller | 100,000 User Capacity | TCP/IP & RS-485 Support | PoE Enabled by Dahua Technology
Brand: Dahua Technology
SKU: ASC2202B-D
Alternatively Known As: Two Door Access Controller, Slave Access Controller, Dahua Door Controller
Technical Specifications
- Communication: TCP/IP, RS-485, Wiegand (W26 and W34)
- User Capacity: 100,000 users
- Record Storage: 500,000 card swiping records
- Alarm Types: Card reader tamper, intrusion, door sensor timeout, duress, illegal card threshold, incorrect password
- Real Time Clock: Built-in RTC with manual and auto synchronization
- Power Supply: Supports PoE
- Memory Protection: Power-off memory protection
- Upgrade: Online upgrade supported
- Watchdog: Supported
- Dimensions (H x L x W): 150mm x 50mm x 200mm
- Weight: 1.5 kg
Key Features
- Supports TCP/IP communication
- Dual communication protocols: RS-485 and Wiegand (W26 and W34)
- Capacity for 100,000 users and 500,000 card swiping records
- Supports interlock, group combination, anti-passback, remote unlock
- Multiple alarm supports including card reader tamper, intrusion, door sensor timeout, duress, illegal card threshold, and incorrect password
- Built-in RTC with manual and automatic time synchronization
- Power-off memory protection and online upgrade capability
- Watchdog support for system protection
- Supports PoE power supply
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Access control for commercial buildings
- Security management in offices and facilities
- Integration with door entry systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports PoE power supply reducing the need for additional power cables and lowering energy consumption
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Dahua ASC2202B-D Two Door Slave Access Controller is available now for immediate purchase. Ideal for commercial and industrial access control applications.
