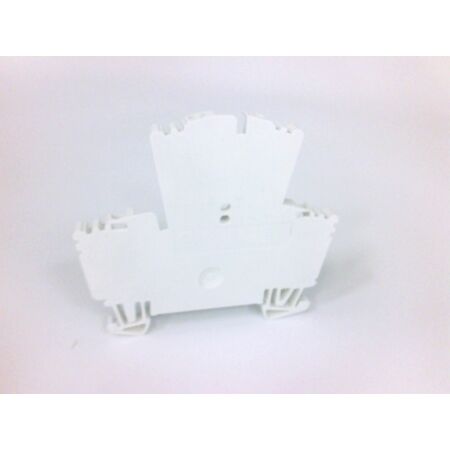

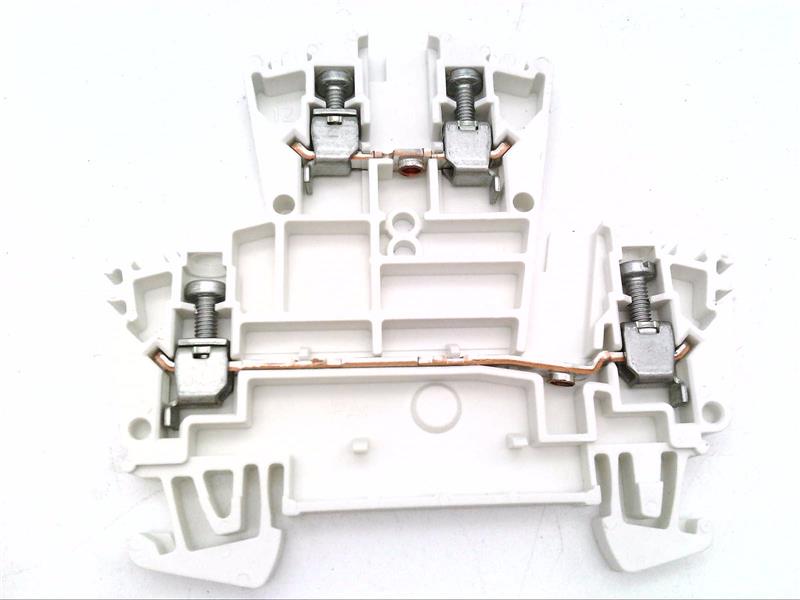

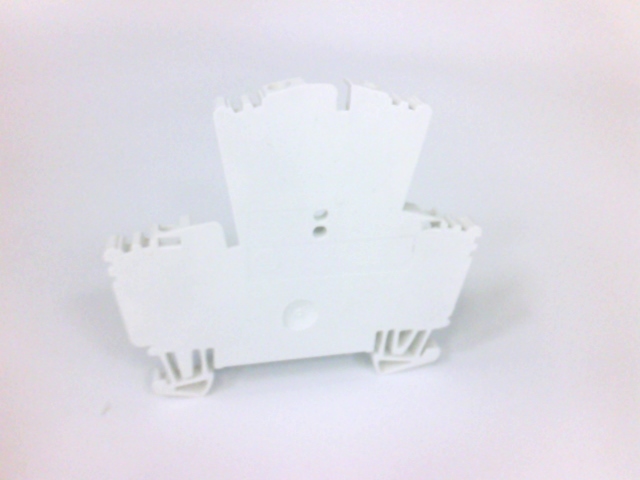

Product Name/Title: Allen-Bradley 1492JD3W Two Level Two Circuit Terminal Block
Brand: Allen-Bradley
SKU: 1492JD3W
Alternatively Known As: Two Level Terminal Block, Screw Connection Terminal Block, Feed Through Terminal Block, 1492JD3W Terminal Block
Technical Specifications
- Voltage Rating UR: 600V AC/DC
- CSA Rating: 300V AC/DC
- IEC Rating: 400V AC/DC
- ATEX Rating: 275V AC/DC
- Maximum Current Rating: Not specified
- Pole Count: 1 Pole
- Connection Type: Screw Connection
- Type: Feed Through
- Circuit Levels: Two Level - Two Circuit
- Dimensions (H x L x W): 55.5mm x 69mm x 5.1mm
- Weight: 0.1 kg
Key Features
- Two level, two circuit design for efficient wiring
- Screw connection for secure and reliable electrical contact
- Feed-through terminal block for easy wiring continuity
- Voltage rating up to 600V AC/DC (UR rating)
- Compact size suitable for panel installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical wiring and circuit connections in industrial control panels
- Electrical distribution systems requiring secure screw connection terminal blocks
- Feed-through applications in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient electrical connections reducing energy loss
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1492JD3W terminal block is available for immediate purchase, ideal for industrial and commercial electrical wiring applications.
