Type 2 Surge Protection Device | 3P+N Configuration | 40kA Discharge Current | Visual End-of-Life Indicator | @Pack of 1 | by Clipsal

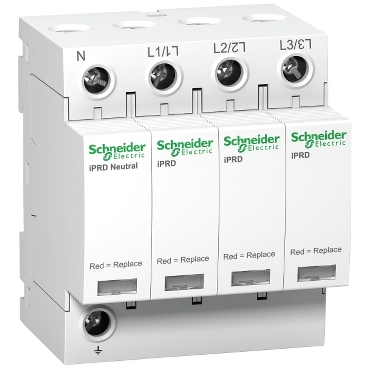

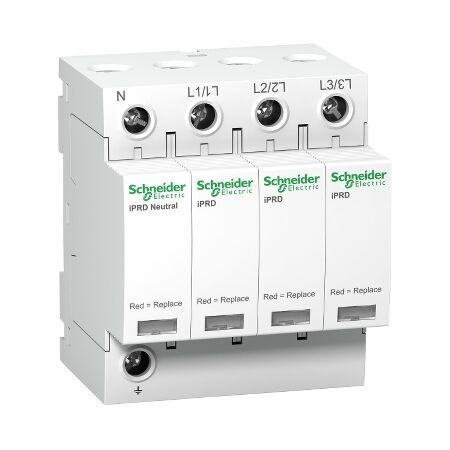

The IPD Surge Type 2 3P+N 40KA is a robust surge protection device designed for 3-phase plus neutral systems. With a maximum discharge current of 40kA and a voltage protection level of ≤1.8kV, it ensures the safety of sensitive electronic equipment in commercial, industrial, and residential settings. Its modular DIN rail mount design and visual end-of-life indicator make installation and maintenance straightforward, providing peace of mind for electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Type 2 Surge Protection Device | 3P+N Configuration | 40kA Discharge Current | Visual End-of-Life Indicator | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9L40600
Alternatively Known As: Type 2 Surge Protector, 3 Phase Surge Arrester, Clipsal Surge Protection Device, SCHA9L40600, iPRD40 Surge Arrester
Technical Specifications
- Type: Type 2 surge protection device
- Configuration: 3P+N (Three phase plus neutral)
- Maximum discharge current (Imax): 40kA
- Nominal discharge current (In): 20kA
- Voltage protection level (Up): ≤1.8kV
- Rated voltage: 350V AC
- Mounting: DIN rail
- Replaceable cartridge
- Visual end-of-life indicator
- Dimensions (H x L x W): 90mm x 70mm x 72mm
- Weight: 0.5 kg
Key Features
- Type 2 surge protection device for 3-phase + neutral systems
- Maximum discharge current (Imax): 40kA
- Nominal discharge current (In): 20kA
- Voltage protection level (Up): ≤1.8kV
- Modular DIN rail mount design
- Visual end-of-life indicator
- Replaceable cartridge
- Suitable for 350V AC networks
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical switchboards
- Residential main switchboards
- Protection of sensitive electronic equipment
- Data centers and server rooms
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 1768 – Lightning Protection (for surge protection devices)
Environmental Benefits
- Protects electrical and electronic equipment from damage, reducing electronic waste.
- Enhances system reliability, minimizing downtime and resource consumption.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IPD Surge Type 2 3P+N 40KA SCHA9L40600 is available for immediate purchase. Ideal for protecting electrical installations in commercial, industrial, and residential environments.
