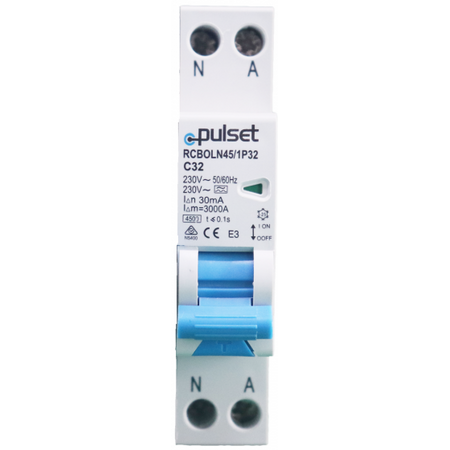

Type A RCBO 1P 4.5kA 30mA 32A | Compact Design | Pulset
Type A RCBO with 4.5kA short-circuit rating and 30mA earth leakage protection—ideal for residential and commercial safety. Built for reliable circuit protection, with compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A TYPE RCBO 1P 4.5KA 30mA 32AMP - RCBOLN45/1P32A
Brand: Pulset
SKU: RCBOLN45/1P32A
Alternatively Known As: Type A RCBO, Single Pole RCBO, 32AMP RCBO
Technical Specifications
- Rated Current: 32A
- Earth Leakage Sensitivity: 30mA
- Short-Circuit Rating: 4.5KA
- Poles: 1P
- Dimensions (H x L x W): 85mm x 70mm x 75mm
- Weight: 1.0 kg
Key Features
- 4.5kA short-circuit rating for reliable protection.
- 30mA earth leakage protection for personnel safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is essential for compliance and safety.
Applications
- Residential: Protection for single-phase circuits in homes
- Commercial: Suitable for use in offices and retail spaces
- General: Any installation requiring short-circuit and earth fault protection
Standards & Compliance
- Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
- Promotes safety and reduces electrical hazards in residential and commercial properties.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The A TYPE RCBO 1P 4.5KA 30mA 32AMP - RCBOLN45/1P32A is available now for immediate purchase. Ideal for circuit and safety protection in residential and commercial applications.
