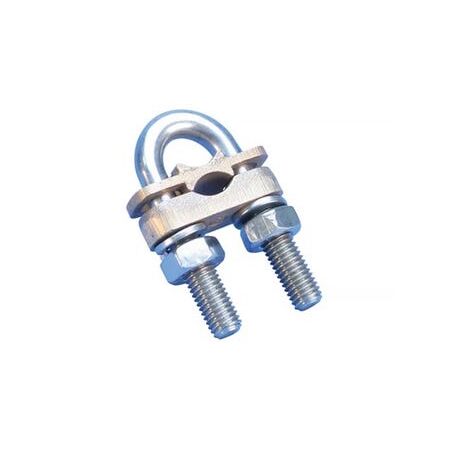

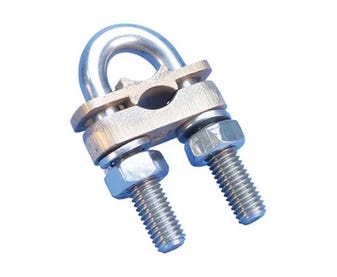

U-Bolt Earth Rod Clamp | 16/25mm Conductor Size | Copper Alloy & Stainless Steel | Parallel Orientation by Cabac
The Cabac REC16120DK U-Bolt Earth Rod Clamp Parallel is designed for secure and reliable earthing connections, suitable for 13-15mm ground rods and 16-120mm² conductors in parallel orientation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: REC16120DK U-BOLT EARTH ROD CLAMP PARALLEL 16/25MM
Brand: Cabac
SKU: EC1315
Alternatively Known As: Earth Rod Clamp, U-Bolt Ground Clamp, Parallel Earth Clamp, Earthing Connector
Technical Specifications
- Material: Copper Alloy, Stainless Steel 304 (EN 1.4301)
- Ground Rod Diameter, Nominal: 1/2" - 5/8"
- Ground Rod Diameter, Actual (Ø): 12.7 – 15.9 mm
- Conductor Size: #4 Solid - 4/0 Stranded, 16 mm² Stranded - 150 mm² Stranded
- Replaces part number REC16120DK
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.2 kg
Key Features
- Accepts conductor in parallel orientation only
- Fits 16 mm² and 25 mm² conductors when the backplate is reversed to the flat side
- Constructed from Copper Alloy and Stainless Steel 304 (EN 1.4301) for durability and corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper earthing.
Applications
- Electrical grounding and earthing systems
- Industrial and commercial electrical installations
- Bonding and earthing of electrical conductors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Corrosion-resistant construction extends product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac REC16120DK U-Bolt Earth Rod Clamp Parallel 16/25mm is available now for immediate purchase. Ideal for electrical grounding and bonding applications in industrial and commercial settings.
