U Shape Fitting | Hot Dipped Galvanised | 14mm Holes
U shape fitting with hot dipped galvanised finish and 14mm diameter holes—ideal for structural applications. Built for durability, with 40mm width and versatile design for multiple configurations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

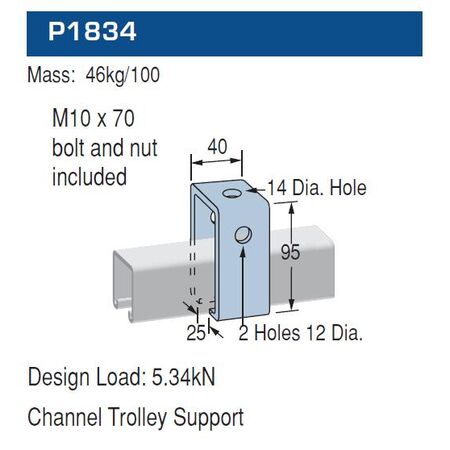

Product Name/Title: U Shape Fitting | Hot Dipped Galvanised | 14mm Holes
SKU: P1834H
Alternatively Known As: U Bracket, U Channel Fitting, Galvanised Steel U Fitting, Structural U Connector
Technical Specifications
- Material: Punch press formed plate or strip steel
- Finish: Hot dipped galvanised to AS/NZS 4680
- Hole Diameter: 14mm
- Hole Spacing: 21mm from end, 48mm on centre
- Width: 40mm
- Thickness: 6mm
- Mass: 46 kg per 100 pieces
- Dimensions (H x L x W): n/a mm x n/a mm x 40mm
- Weight: 0.46 kg
Key Features
- Made from punch press formed plate or strip steel
- Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
- 14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
- Hole spacing: 21mm from end, 48mm on centre
- Width: 40mm, Thickness: 6mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural fittings and appropriate fastening methods.
Applications
- Structural connections in construction and building frameworks
- General purpose fittings for steel channel assemblies
- Industrial and commercial structural support systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
- Finish complies with AS/NZS 4680 for hot dipped galvanised coatings
Environmental Benefits
- Hot dipped galvanised finish provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty details available upon request; typically covers manufacturing defects.
Available Now
The U Shape Fitting Hot Dipped Galvanised with 14mm Holes is available now for immediate purchase. Ideal for structural and construction applications requiring durable and corrosion-resistant fittings.
