U Shape Fittings | Hot Dipped Galvanised | 14mm Hole

BRAND: Unistrut

SKU: P1046H

$3.70 List price: $4.90

+ −

30 Days Return Delivery Options

U shape fitting with hot dipped galvanised finish and 14mm diameter holes—ideal for structural applications. Built for durability, with 40mm width and robust design for versatile use.

Description

Product Name/Title: U Shape Fittings | Hot Dipped Galvanised | 14mm Hole

SKU: P1046H

Alternatively Known As: U Channel Fittings, Galvanised U Brackets, Steel U Connectors, Structural U Fittings

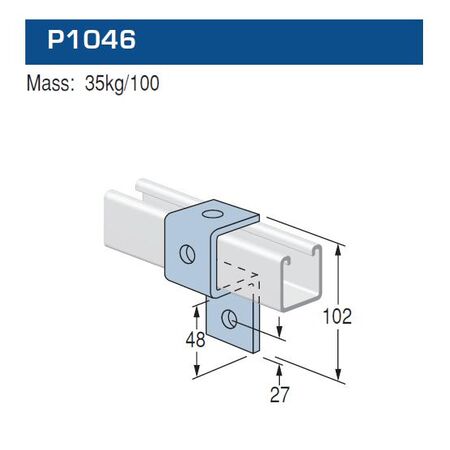

Technical Specifications

Material: Punch press formed plate or strip steel
Finish: Hot dipped galvanised to AS/NZS 4680
Hole Diameter: 14mm
Hole Spacing: 21mm from end, 48mm on centre
Width: 40mm
Thickness: 6mm
Mass: 35 kg per 100 pieces
Dimensions (H x L x W): n/a mm x n/a mm x 40mm
Weight: 0.35 kg

Key Features

Punch press formed from plate or strip steel
Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
Multiple hole spacing options: 21mm from end, 48mm on centre
6mm thickness and 40mm width for robust structural support

Professional Installation Requirements

Installation should be performed by qualified personnel familiar with structural steel fittings and appropriate fastening methods.

Applications

Structural connections in construction and building frameworks
General purpose fittings for steel channel assemblies
Industrial and commercial structural support systems

Standards & Compliance

Complies with AS/NZS 4680 – Hot Dipped Galvanised Coatings on Fabricated Ferrous Articles

Environmental Benefits

Hot dipped galvanised finish extends product life, reducing replacement frequency and waste
Steel material is recyclable, supporting sustainable construction practices

Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

The U Shape Fittings with Hot Dipped Galvanised finish and 14mm holes are available now for immediate purchase. Ideal for structural and construction applications requiring durable steel fittings.
