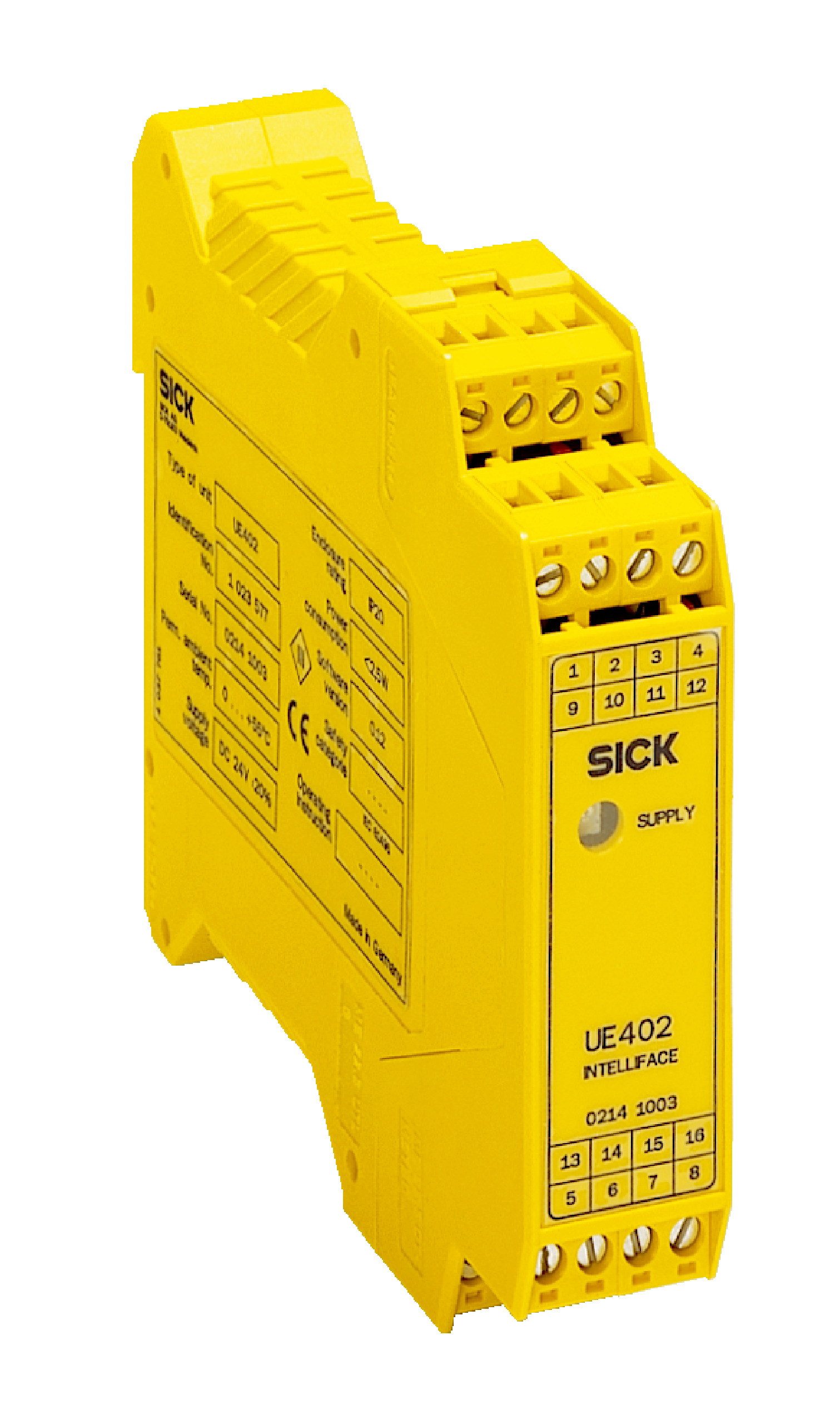

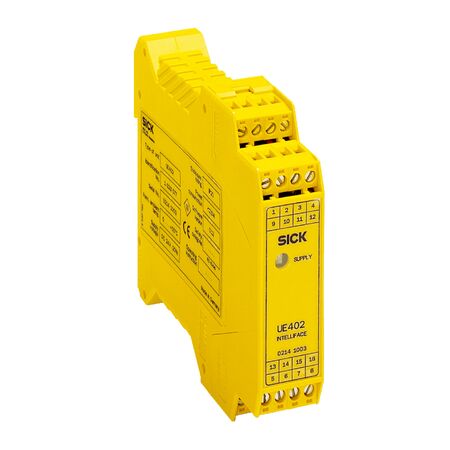

UE402 Safety Light Curtain Upgrade Module | Type 4 Compliance | SIL 3 Safety Level | IP20 Enclosure | by SICK
The UE402 Safety Light Curtain Upgrade Module enhances C4000 safety light curtains with advanced features like bypass and operating mode switching. Designed for industrial safety systems, it meets Type 4 compliance and SIL 3 safety integrity levels, ensuring reliable performance and a long mission time of 20 years. Ideal for applications requiring enhanced functionality, this module is built to withstand challenging environments with its robust design and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UE402 Safety Light Curtain Upgrade Module | Type 4 Compliance | SIL 3 Safety Level | IP20 Enclosure | by SICK
Brand: SICK
SKU: 1023577
Alternatively Known As: UE402 Safety Light Curtain Upgrade Module, C4000 Functionality Upgrade, SICK Safety Module
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- PFHD: 15 x 10^-9 (EN ISO 13849)
- Mission Time: 20 years (EN ISO 13849)
- Connection Type: Fixed screw terminals
- Diagnostic Display: Status LED
- Protection Class: III (IEC 61140)
- Supply Voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power Consumption: ≤ 110 mA
- Switch-on Time: ≤ 4 s
- Bypass Change Over Time: ≤ 2 s
- Synchronous Time Monitoring: ≤ 200 ms
- Enclosure Rating: IP20 (IEC 60529)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Air Humidity: 15% to 95%, Non-condensing
- Vibration Resistance: 5 g, 10 Hz to 55 Hz (EN 60068-2-6)
- Shock Resistance: 10 g, 16 ms (IEC 60068-2-29)
- Dimensions (H x L x W): 99mm x 114.5mm x 22.5mm
- Weight: 0.12 kg
Key Features
- Upgrades C4000 safety light curtains to include bypass, operating mode switching, and PSDI functions
- Type 4 safety light curtain compliant with IEC 61496-1
- Safety Integrity Level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Low probability of dangerous failure (PFHD 15 x 10^-9)
- Long mission time of 20 years
- Fixed screw terminal connections with status LED diagnostic display
- Protection class III (IEC 61140)
- Supply voltage 24 V DC with low power consumption (≤ 110 mA)
- Fast switch-on time (≤ 4 s)
- Robust mechanical design with plastic housing and IP20 enclosure rating
- Wide ambient operating temperature range (0 °C to +55 °C)
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Upgrading C4000 safety light curtains including Standard, Advanced, Palletizer, Entry/Exit, and Fusion models
- Industrial safety systems requiring enhanced functionality such as bypass, operating mode switching, and PSDI
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances safety systems to reduce risk of accidents and associated environmental hazards
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UE402 Safety Light Curtain Functionality Upgrade Module is available for immediate purchase, ideal for industrial safety system upgrades.
