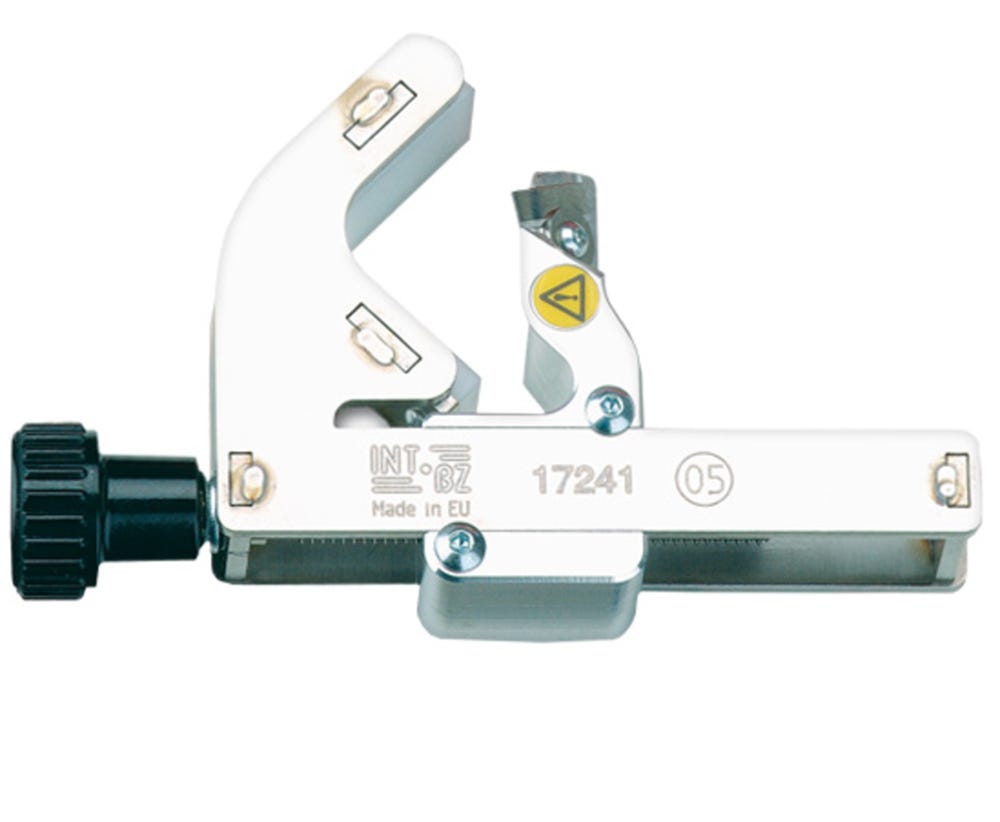

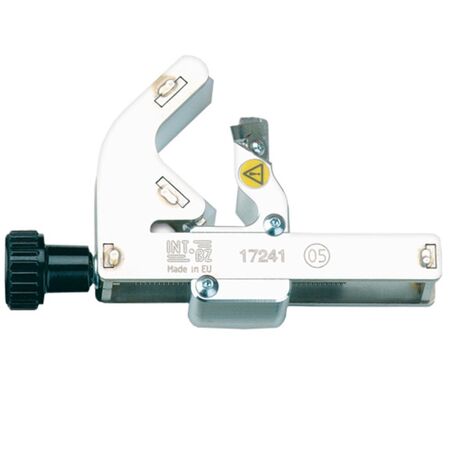

UFS Primary Insulation Chamfer Set | 15 to 60 mm Diameter | 2 x 45° Chamfer Angle | PTFE Plates for Smooth Sliding | @EA of 1 | by Cabac
The UFS Primary Insulation Chamfer Set is designed for chamfering primary insulation on medium voltage cables, accommodating diameters from 15 to 60 mm. With a chamfer angle of 2 x 45° and equipped with PTFE plates for optimal sliding, this tool ensures precise cuts without the need for silicone paste. Ideal for professional electricians, it includes a replaceable blade for extended use and efficiency in cable preparation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for primary insulation diameters: 15 to 60 mm
- Chamfer angle: 2 x 45°
- PTFE plates for smooth sliding without silicone paste
- Replaceable blade included
- Maximum rotation diameter: 130 mm
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- Chamfering tool designed for primary insulation diameters 15 to 60 mm
- Creates chamfered cuts of primary insulation at 2 x 45° angles
- Equipped with PTFE plates for optimal sliding on cables without silicone paste
- Replaceable blade for extended tool life
- Maximum rotation diameter of 130 mm
Professional Installation Requirements
- Recommended for use by qualified electricians or trained professionals to ensure proper cable preparation and safety.
Applications
- Chamfering primary insulation on medium voltage (MV) cables
- Electrician hand tool for cable preparation
- Suitable for primary insulation diameters from 15 to 60 mm
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable replaceable blade reduces waste by extending tool lifespan
- Efficient design minimizes material waste during cable preparation
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac UFS Primary Insulation Chamfer Set is available for immediate purchase, ideal for professional electricians and cable installers working with medium voltage cables.
