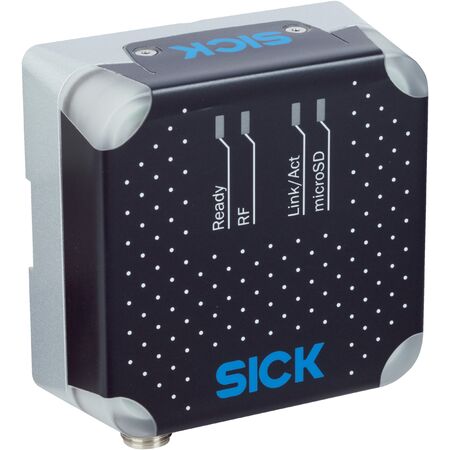

UHF RFID Reader RFU610-10600 | Short Range | Integrated Antenna | IP67 Rated | by SICK
The UHF RFID Reader RFU610-10600 is a short-range read/write device designed for industrial automation and asset tracking. With an integrated antenna and a frequency range of 860 MHz to 960 MHz, it supports EPCglobal UHF Class 1 Generation 2 standards. Built for robust performance, this device features an IP67 rating, making it ideal for harsh environments, while its multiple connection options ensure seamless integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Short Range
- Product category: RFID read/write device with integrated antenna
- Radio approval: European Union, South Africa, United Arab Emirates
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 865.7 MHz to 867.5 MHz
- Output power: 25 mW (ERP, 14 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: PoE, Power and Ethernet
- Aperture angle: 110°
- Read range: ≤ 0.5 m
- Antenna: Integrated, adjustable transmitting power, circular polarization
- Axial ratio: Typ. 2 dB
- Front-to-back ratio: > 5 dB
- Connection type: 1 x M12 4-pin male connector (A-coded), 1 x M12 8-pin female connector (X-coded), 1 x M8 4-pin female connector (A-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W, standby 3 W
- Housing material: Aluminum die cast and Plastic (PPS)
- Enclosure rating: IP67
- Protection class: III
- MTBF: 22 years
- Interfaces: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
- Digital inputs: 1 physical switching input, max 40 mA
- Optical indicators: 4 multi-color LEDs, 4 RGB LEDs for process feedback
- Operator interfaces: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio development environment
- Memory card: microSD for parameter cloning and data storage
- Ambient operating temperature: –25 °C to +50 °C
- Storage temperature: –40 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 301489-3
- Vibration resistance: EN 60068-2-6:2007
- Shock resistance: EN 60068-2-27:2008
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range UHF RFID read/write device with integrated antenna
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 865.7 MHz to 867.5 MHz
- Output power: 25 mW (ERP, 14 dBm)
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Adjustable transmitting power with circular polarization
- Aperture angle of 110°
- Read range up to 0.5 meters
- Robust aluminum die cast and PPS plastic housing with IP67 rating
- Multiple connection types including PoE, Power and Ethernet, USB
- Supports Ethernet, PROFINET, EtherNet/IP™, and USB interfaces
- Equipped with 4 multi-color LEDs for device status and process feedback
- Web server operator interface and SOPAS ET configuration software
- MicroSD memory card slot for parameter cloning and data storage
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper setup, compliance with electrical standards, and optimal device performance.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient PoE (Power over Ethernet) operation
- Durable IP67 rated housing extends product lifespan reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU610-10600 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and asset tracking applications.
