UHF RFID Reader RFU610-10604 | Short Range Read/Write | IP67 Rated | by SICK

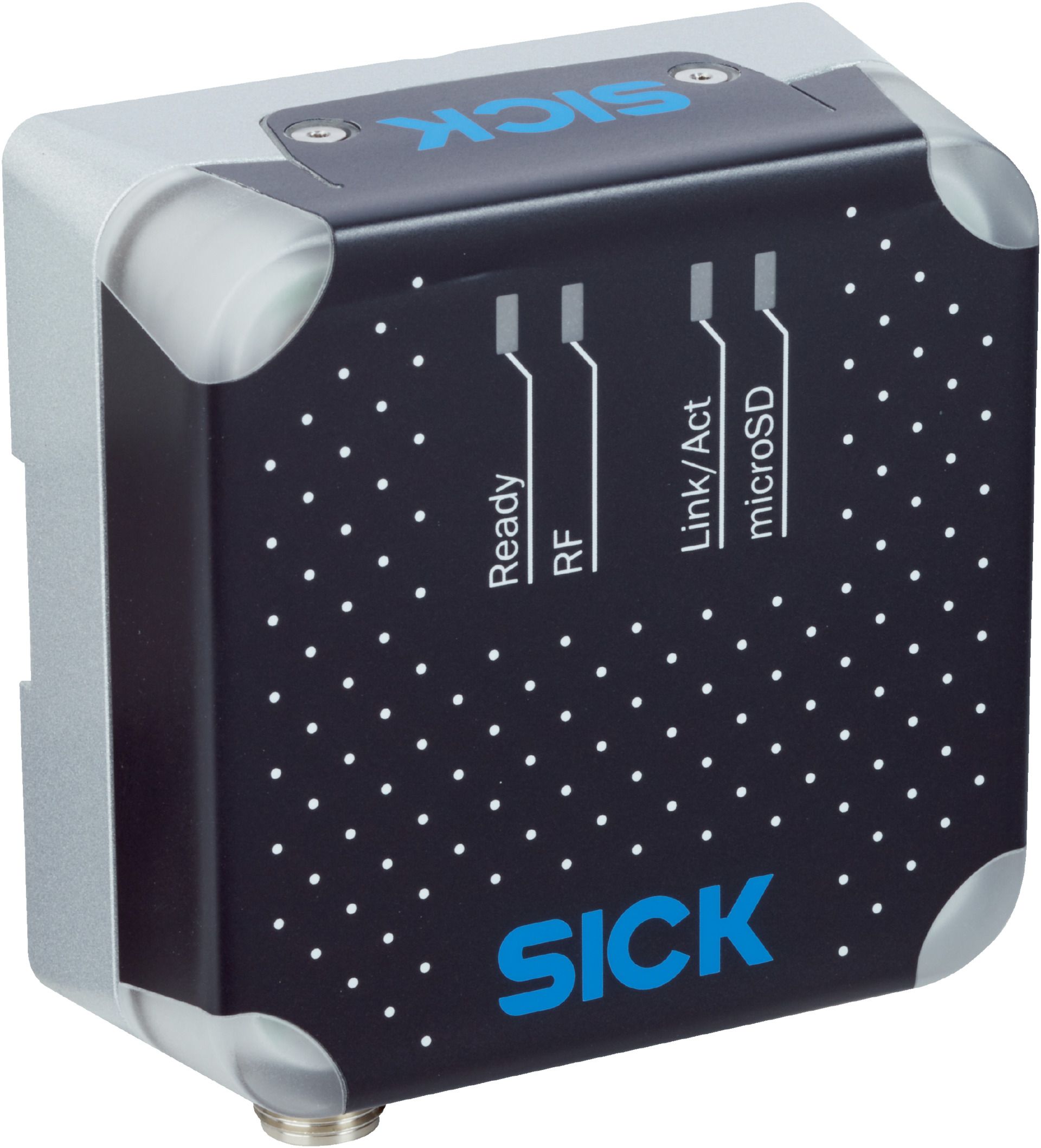

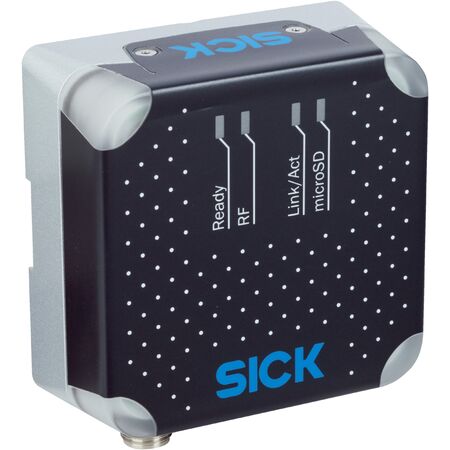

The UHF RFID Reader RFU610-10604 is a short-range read/write device designed for industrial automation and logistics. Operating in the UHF frequency band (860 MHz to 960 MHz), it features a robust IP67-rated housing and multiple connection options including PoE and USB. Ideal for asset tracking and access control, this device ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 902.75 MHz to 907.25 MHz and 915.25 MHz to 927.25 MHz
- Output power: 40 mW (EIRP, 16 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection types: PoE, Power and Ethernet, 1 x M12 4-pin male connector, 1 x M12 8-pin female connector, 1 x M8 4-pin female connector, 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W operational, 3 W standby
- Housing material: Aluminum die cast and Plastic (PPS)
- Enclosure rating: IP67
- Protection class: III
- MTBF: 22 years
- Data transmission rate: 10/100 MBit/s
- Interfaces supported: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
- Digital inputs: 1 physical input for switching or trigger sensor (max 40 mA)
- Optical indicators: 4 multi-color LEDs
- Operating temperature range: -25 °C to +50 °C
- Storage temperature range: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range RFID read/write device with integrated antenna
- Operates in UHF frequency band (860 MHz to 960 MHz)
- Adjustable transmitting power with circular polarization
- Read range up to 0.5 meters
- Multiple connection types including PoE, Power and Ethernet
- Robust aluminum die cast and PPS plastic housing with IP67 rating
- Supports Ethernet, PROFINET, EtherNet/IP™, and USB interfaces
- Equipped with 4 multi-color LEDs for device status indication
- MicroSD memory card slot for parameter cloning and data storage
- Application-specific programming via SICK AppStudio
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with RFID systems and compliant with local electrical standards to ensure safety and optimal device performance.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 6 W operational and 3 W standby power usage
- Durable IP67 rated housing reduces need for frequent replacements
- Supports efficient asset tracking reducing waste and improving resource management
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU610-10604 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
