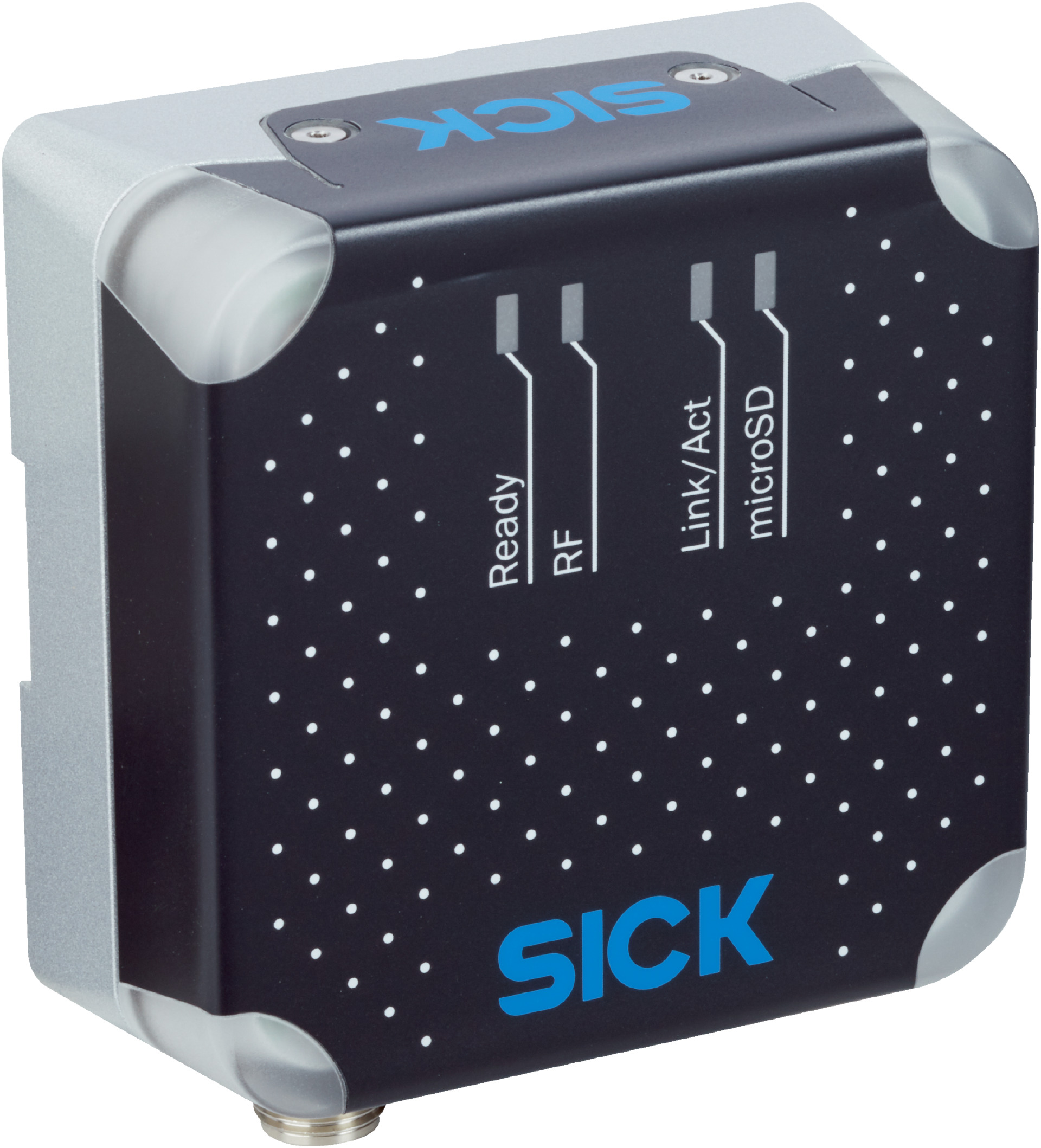

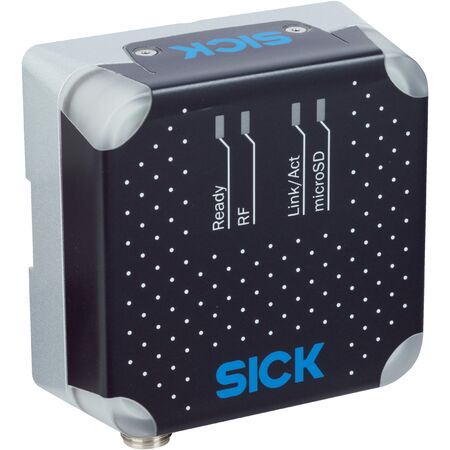

UHF RFID Reader RFU610-10605 | Short Range | Integrated Antenna | IP67 Rated | by SICK
The UHF RFID Reader RFU610-10605 is a short-range read/write device designed for industrial automation and logistics. With an integrated antenna and a read range of up to 0.5 meters, it supports EPCglobal UHF Class 1 Generation 2 standards. Built for durability with an IP67 rating, this device is perfect for asset tracking and process control in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Short Range
- Product category: RFID read/write device with integrated antenna
- Radio approval: China, Thailand
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.625 MHz to 924.375 MHz
- Output power: 25 mW (ERP, 14 dBm), adjustable
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: PoE, Power and Ethernet
- Aperture angle: 110°
- Read range: ≤ 0.5 m
- Antenna: Integrated, circular polarization, axial ratio typically 3 dB, front-to-back ratio > 5 dB
- Connection interfaces: 1 x M12 4-pin male (A-coded), 1 x M12 8-pin female (X-coded), 1 x M8 4-pin female (A-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W operational, 3 W standby
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- MTBF: 22 years
- Data transmission rate: 10/100 MBit/s
- Supported protocols: Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
- Digital inputs: 1 physical switching input, max 40 mA
- Optical indicators: 4 multi-color LEDs and 4 RGB LEDs
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio development environment
- Memory card: microSD for parameter cloning and data storage
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-6:2007
- Shock resistance: EN 60068-2-27:2008
- Certifications: China-RoHS, Radio Approval certificate, RAIN RFID
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range UHF RFID read/write device with integrated antenna
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.625 MHz to 924.375 MHz
- Output power: 25 mW (ERP, 14 dBm), adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with axial ratio typically 3 dB
- Aperture angle of 110°
- Read range up to 0.5 meters
- Multiple connection types including PoE, Power and Ethernet, USB 2.0
- Robust aluminum die cast and PPS plastic housing with IP67 rating
- Supports Ethernet, PROFINET, EtherNet/IP™, and USB interfaces
- Equipped with 4 multi-color LEDs for device status and process feedback
- Web server operator interface and SOPAS ET configuration software
- MicroSD memory card slot for parameter cloning and data storage
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical and communication standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 6 W operational and 3 W standby power usage
- Durable IP67 rated housing reduces need for frequent replacements
- Supports efficient asset tracking to reduce waste and improve resource management
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU610-10605 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and asset tracking applications.
