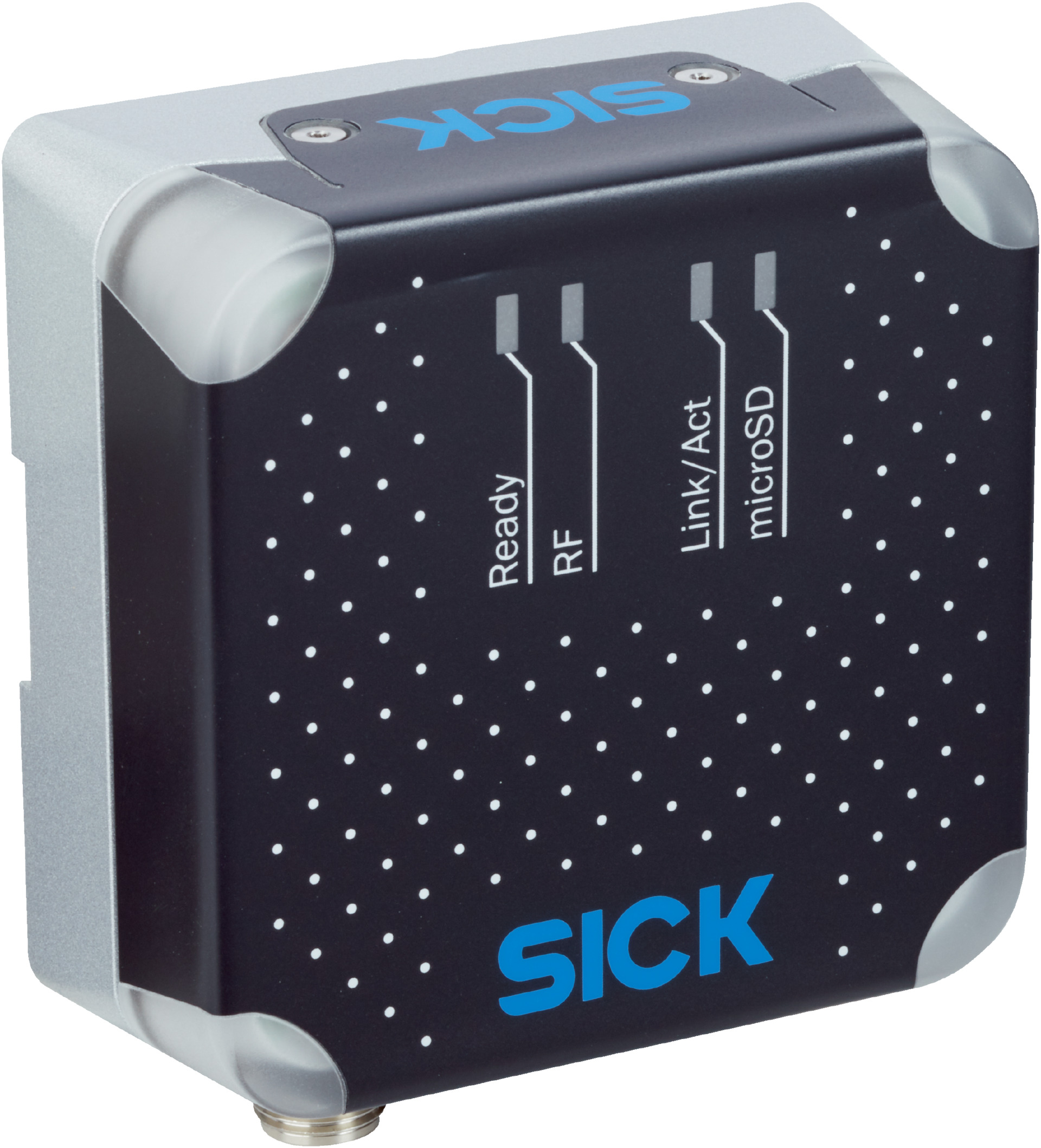

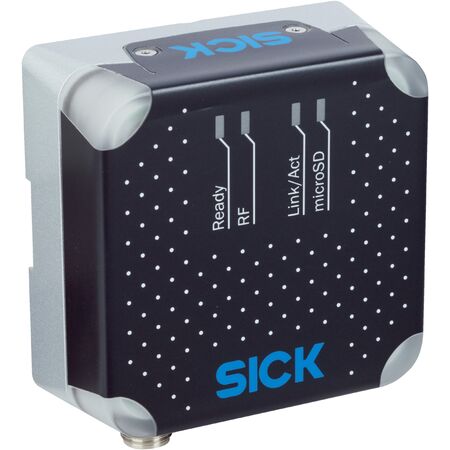

UHF RFID Reader RFU610-10607 | Short Range Read/Write | Integrated Antenna | IP67 Rated | by SICK
The UHF RFID Reader RFU610-10607 is a short-range read/write device with an integrated antenna, designed for industrial automation and logistics applications. Operating in the UHF frequency band (860 MHz to 960 MHz) with adjustable transmitting power, it ensures reliable asset tracking and identification. With an IP67 rated housing, this robust device is perfect for harsh environments, making it ideal for manufacturing process control and access security systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range UHF RFID read/write device with integrated antenna
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 916.8 MHz to 920.4 MHz
- Output power: 40 mW (EIRP, 16 dBm)
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Adjustable transmitting power with circular polarization
- Aperture angle of 110°
- IP67 rated aluminum die cast and PPS plastic housing for robust protection
- Multiple interfaces including Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
- Supports digital input and multi-color LED indicators
- Web server operator interface and SOPAS ET configuration software
- MicroSD memory card support for parameter cloning and data storage
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and compliance with local regulations.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 6 W (3 W standby) reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Supports efficient asset tracking to optimize resource use and reduce losses
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU610-10607 RFID read/write device is available for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications.
