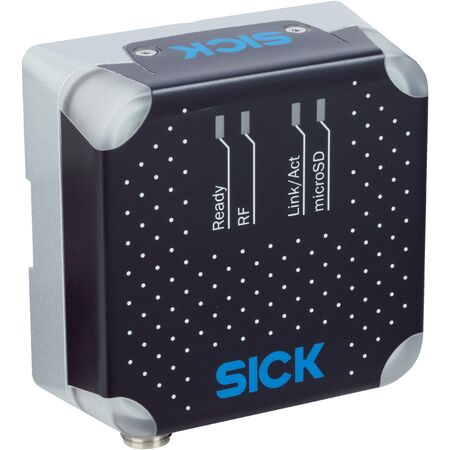

UHF RFID Reader RFU610-10609 | Short Range Read/Write | IP67 Rated | by SICK
The UHF RFID Reader RFU610-10609 is a short-range read/write device designed for industrial automation and logistics. With an integrated antenna and a read range of up to 0.5 meters, it supports EPCglobal UHF Class 1 Generation 2 and RAIN RFID standards. Its robust IP67 rated housing ensures durability in harsh environments, making it ideal for asset tracking and access control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range UHF RFID read/write device with integrated antenna
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.25 MHz to 924.75 MHz
- Output power: 25 mW (ERP, 14 dBm)
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Adjustable transmitting power with circular polarization
- Aperture angle of 110°
- Read range up to 0.5 meters
- Robust aluminum die cast and PPS plastic housing with IP67 rating
- Multiple connection types including PoE, Ethernet, USB, and M12 connectors
- Supports Ethernet, PROFINET, EtherNet/IP™, and USB interfaces
- Equipped with 4 multi-color LEDs for device status and process feedback
- Web server operator interface and SOPAS ET configuration software
- MicroSD memory card slot for parameter cloning and data storage
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with local regulations.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption of 6 W (3 W standby) reduces energy usage
- Durable IP67 rated housing ensures long product life and reduces waste
- Supports efficient asset tracking to optimize resource use and reduce losses
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU610-10609 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
