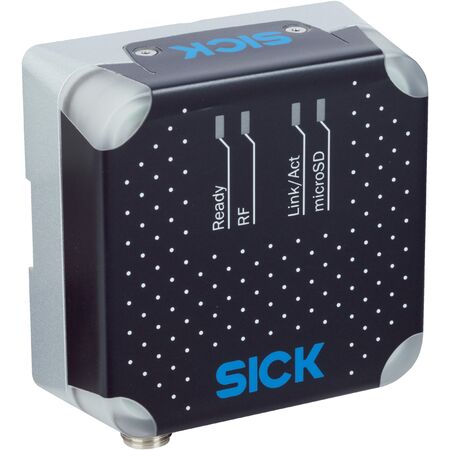

UHF RFID Reader RFU610-10614 | Short Range Read/Write | IP67 Rated | by SICK
The UHF RFID Reader RFU610-10614 is a short-range read/write device designed for industrial automation and logistics. With a frequency range of 860 MHz to 960 MHz and robust IP67-rated housing, it ensures reliable performance in demanding environments. Ideal for asset tracking and access control, this device supports multiple interfaces and features low power consumption for enhanced efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range UHF RFID read/write device with integrated antenna
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 919.25 MHz to 922.75 MHz
- Output power: 25 mW (ERP, 14 dBm), adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with axial ratio typically 3 dB
- Aperture angle of 110°
- Connection via PoE, Power and Ethernet
- Multiple interface options including Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
- Robust aluminum die cast and PPS plastic housing with IP67 enclosure rating
- Operating temperature range from -25 °C to +50 °C
- Web server operator interface and SOPAS ET configuration software support
- MicroSD memory card slot for parameter cloning and data storage
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and compliance with local regulations.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption of 6 W (3 W standby) reduces energy usage
- Durable IP67 rated housing ensures long product life and reduces waste
- Supports wireless RFID technology which can improve operational efficiency and reduce paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU610-10614 RFID read/write device is available for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications requiring reliable short-range RFID identification.
