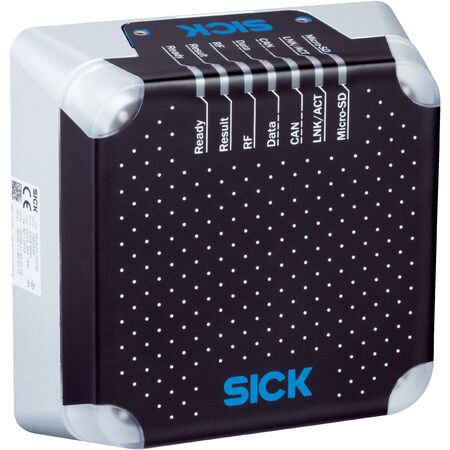

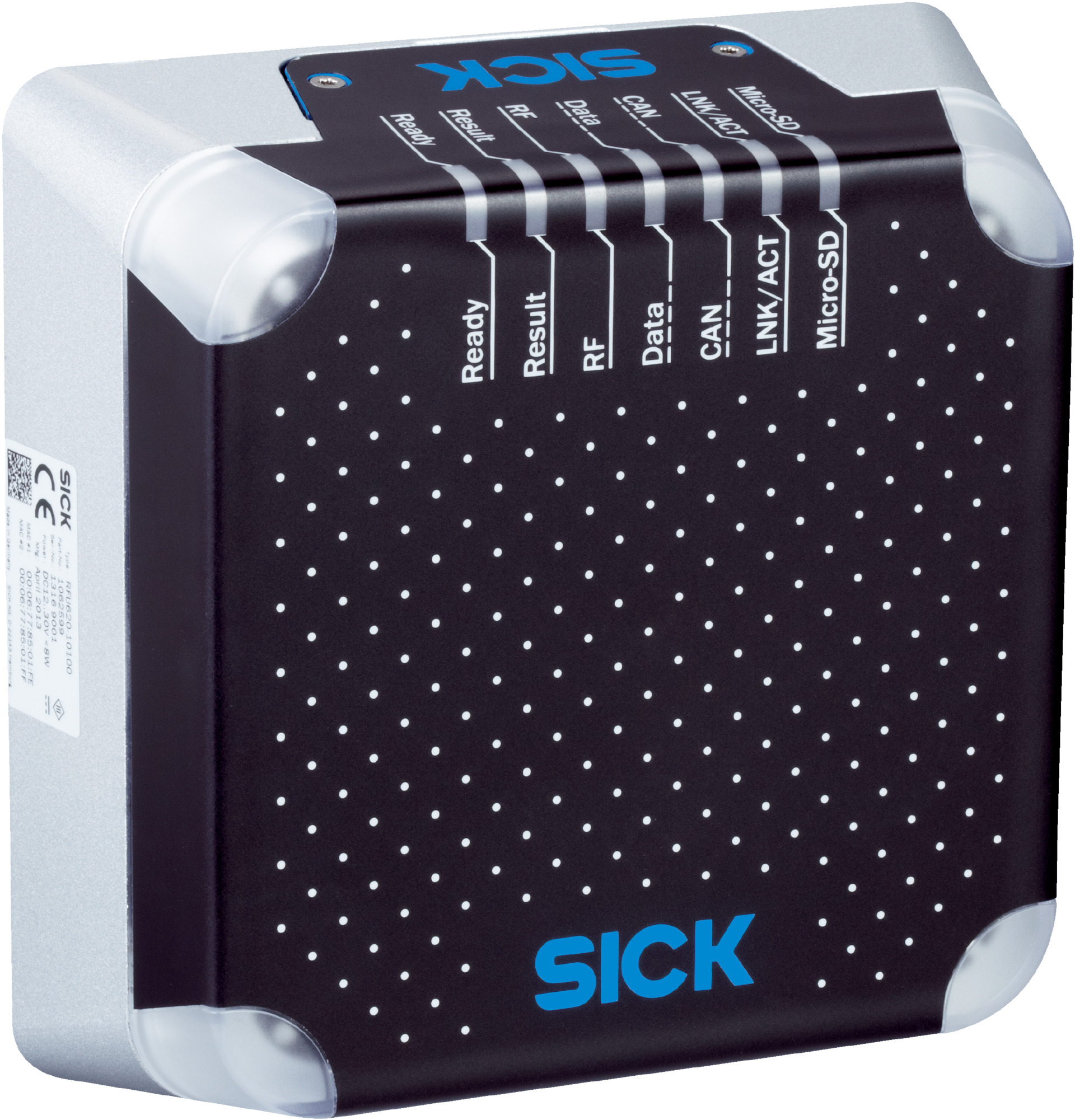

UHF RFID Reader RFU620-10105 | Integrated Antenna | IP67 Rated | Adjustable Power | by SICK
The UHF RFID Reader RFU620-10105 is a versatile read/write device designed for industrial automation and logistics. With an integrated circular polarization antenna and adjustable output power, it offers a read range of up to 2 meters. Built for robust use, its IP67 rated aluminum housing ensures durability in harsh environments, making it ideal for asset management and inventory control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 920.625 MHz to 924.375 MHz
- Output power: 0.2 W ERP (23 dBm), adjustable
- Antenna: Integrated circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
- Connection types: Ethernet, USB 2.0, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 8 W, with heating 16 W
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Weight: 780 g
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- MTBF: > 100 years
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range UHF RFID read/write device with integrated antenna
- Frequency band: 860 MHz to 960 MHz with carrier frequency 920.625 MHz to 924.375 MHz
- Adjustable transmitting power with circular polarization antenna
- Read range up to 2 meters
- Ethernet and multiple fieldbus interfaces including PROFINET, EtherNet/IP, CAN, PROFIBUS DP, CANopen, EtherCAT
- IP67 rated aluminum die cast and PPS plastic housing for robust industrial use
- Supports EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, and RAIN RFID standards
- Integrated heating for operation in cold environments
- Updatable firmware and programmable data output format
- Multiple digital inputs and outputs with LED status indicators
- Web server operator interface and SOPAS ET configuration software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial RFID systems and compliant with local electrical standards.
Applications
- Industrial automation and logistics for RFID tracking and identification
- Asset management and inventory control
- Access control and security systems
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient operation with adjustable power settings
- Durable IP67 housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK RFU620-10105 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and asset tracking applications.
