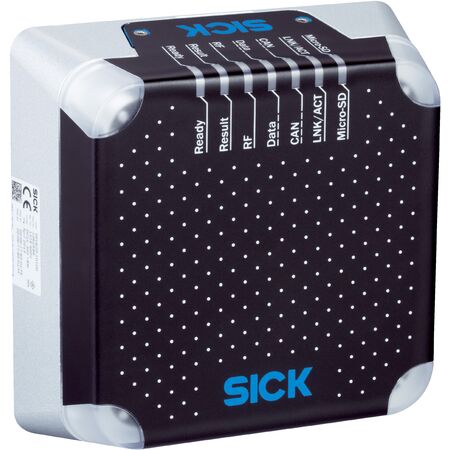

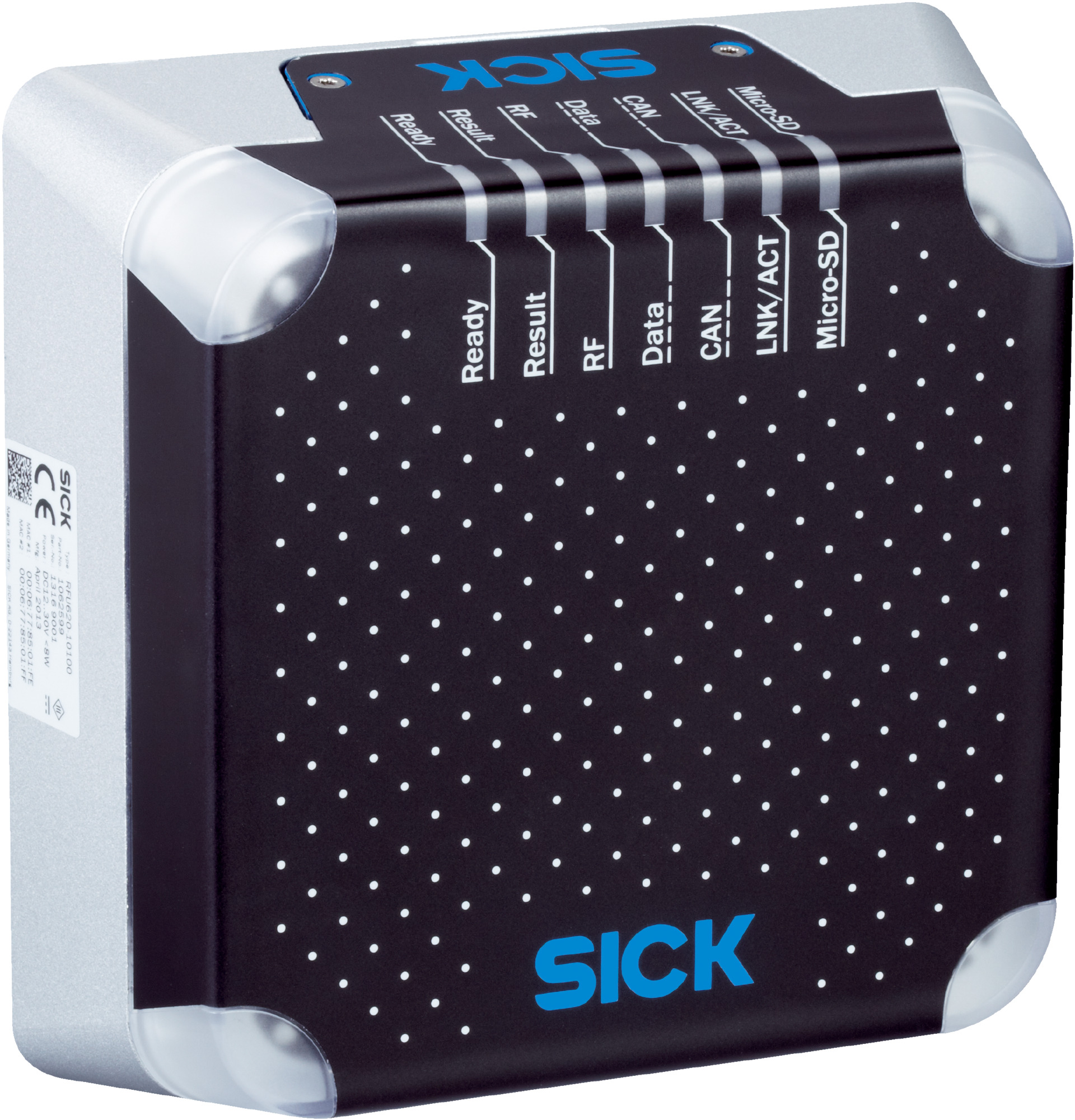

UHF RFID Reader RFU620-10114 | Integrated Antenna | 2m Read Range | IP67 Rated | by SICK
The UHF RFID Reader RFU620-10114 is designed for industrial automation, offering a read range of up to 2 meters with an integrated antenna. With adjustable transmitting power and multiple connection options, it's perfect for asset tracking and logistics management. Built to withstand harsh environments, this robust device features an IP67 rating, ensuring durability and reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 919.25 MHz to 922.75 MHz
- Output power: 0.2 W ERP (23 dBm), adjustable
- Antenna: Integrated, circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
- Read range: up to 2 meters
- Connection types: Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 8 W, with heating typical 16 W
- Housing material: Aluminum die cast and PPS plastic
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- MTBF: > 100 years
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 919.25 MHz to 922.75 MHz
- Adjustable transmitting power with circular polarization
- Read range up to 2 meters
- Integrated antenna with 100° aperture angle
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, and USB
- Robust aluminum die cast and PPS plastic housing with IP67 enclosure rating
- Operating temperature range from -40 °C to +50 °C
- Supports advanced functions like diagnosis, updatable firmware, freely programmable data output format, and SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with industrial standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient operation with adjustable transmitting power
- Durable IP67 rated housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU620-10114 RFID read/write device is available for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications.
