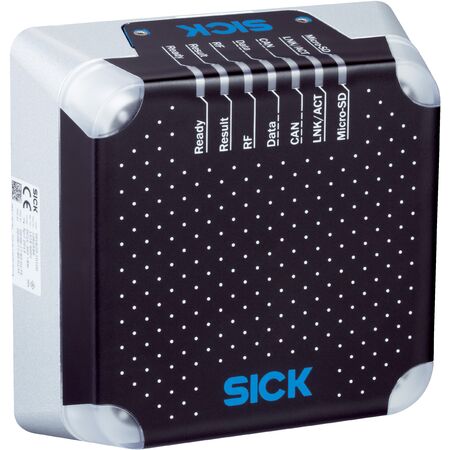

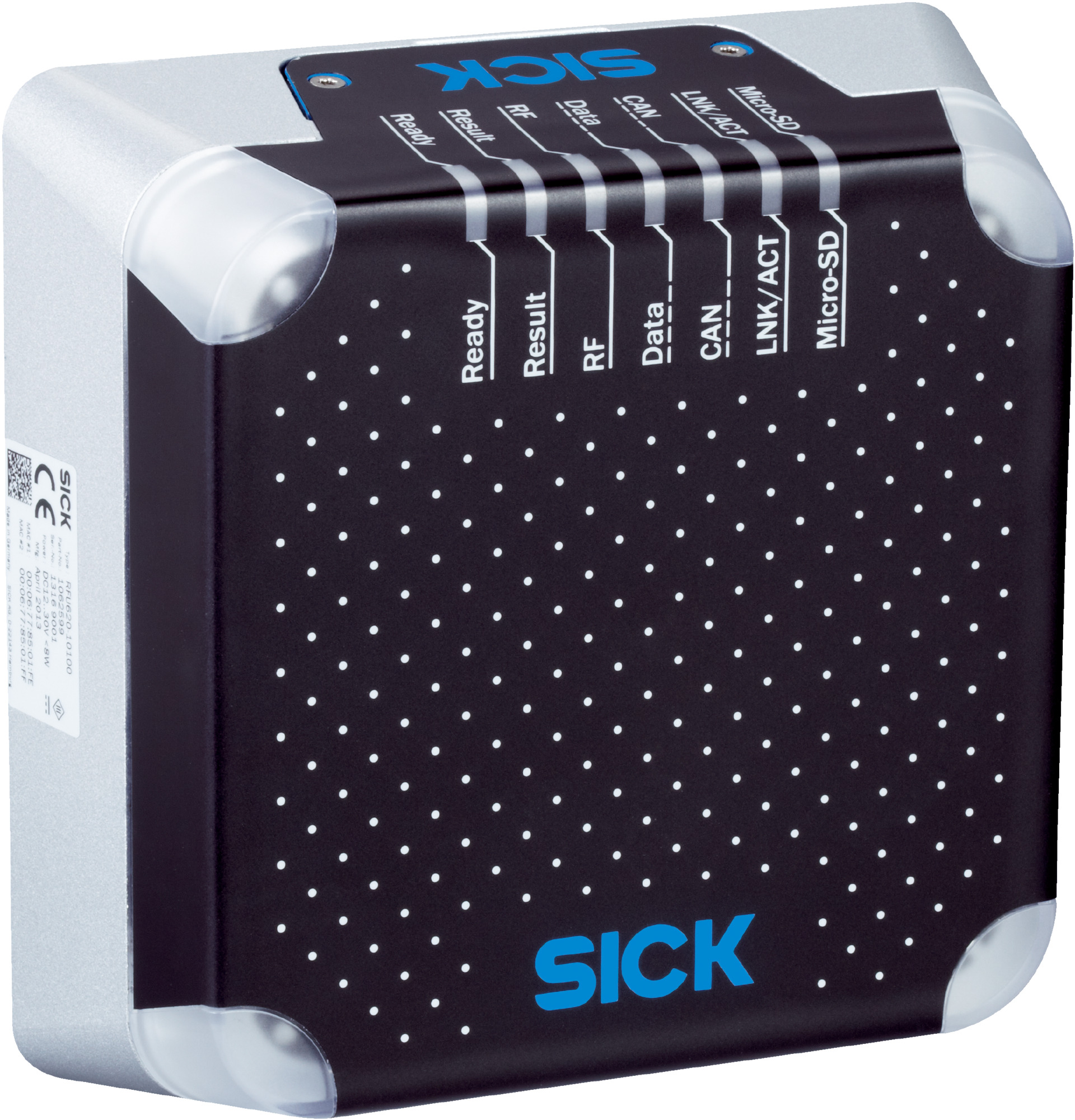

UHF RFID Reader RFU620-10118 | Integrated Antenna | IP67 Rated | by SICK
The UHF RFID Reader RFU620-10118 is a mid-range read/write device featuring an integrated antenna and operating in the UHF frequency band (860 MHz to 960 MHz). With a read range of up to 2 meters and multiple fieldbus interfaces, it's perfect for industrial automation, logistics, and asset management. Built to withstand harsh environments with an IP67 rating, this device ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 918.25 MHz to 922.75 MHz
- Output power: 0.32 W (EIRP, 25 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK
- Connection type: Ethernet, M12 connectors, USB 2.0
- Antenna: Integrated, circular polarization, axial ratio typ. 3 dB, front-to-back ratio > 5 dB
- Power consumption: Typ. 8 W, with heating typ. 16 W
- Supply voltage: 10 V DC to 30 V DC
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP, CANopen, EtherCAT®, USB
- Digital inputs/outputs: 2 physical inputs and outputs, with additional logical inputs/outputs via optional modules
- Operator interfaces: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 918.25 MHz to 922.75 MHz
- Adjustable transmitting power with circular polarization
- Read range up to 2 meters
- Integrated antenna with 100° aperture angle
- Ethernet and multiple fieldbus interfaces including PROFINET, EtherNet/IP™, CAN, PROFIBUS DP, CANopen, EtherCAT®
- IP67 rated aluminum die cast and PPS plastic housing
- Operating temperature range from -40 °C to +50 °C
- Supports diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial RFID systems and electrical safety standards.
Applications
- Industrial automation and logistics for RFID tracking
- Asset management and inventory control
- Access control and identification systems
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67 housing ensures long product life reducing waste
- Energy efficient operation with adjustable transmitting power
- Supports wireless identification reducing need for physical tags and paperwork
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK RFU620-10118 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and asset tracking applications.
