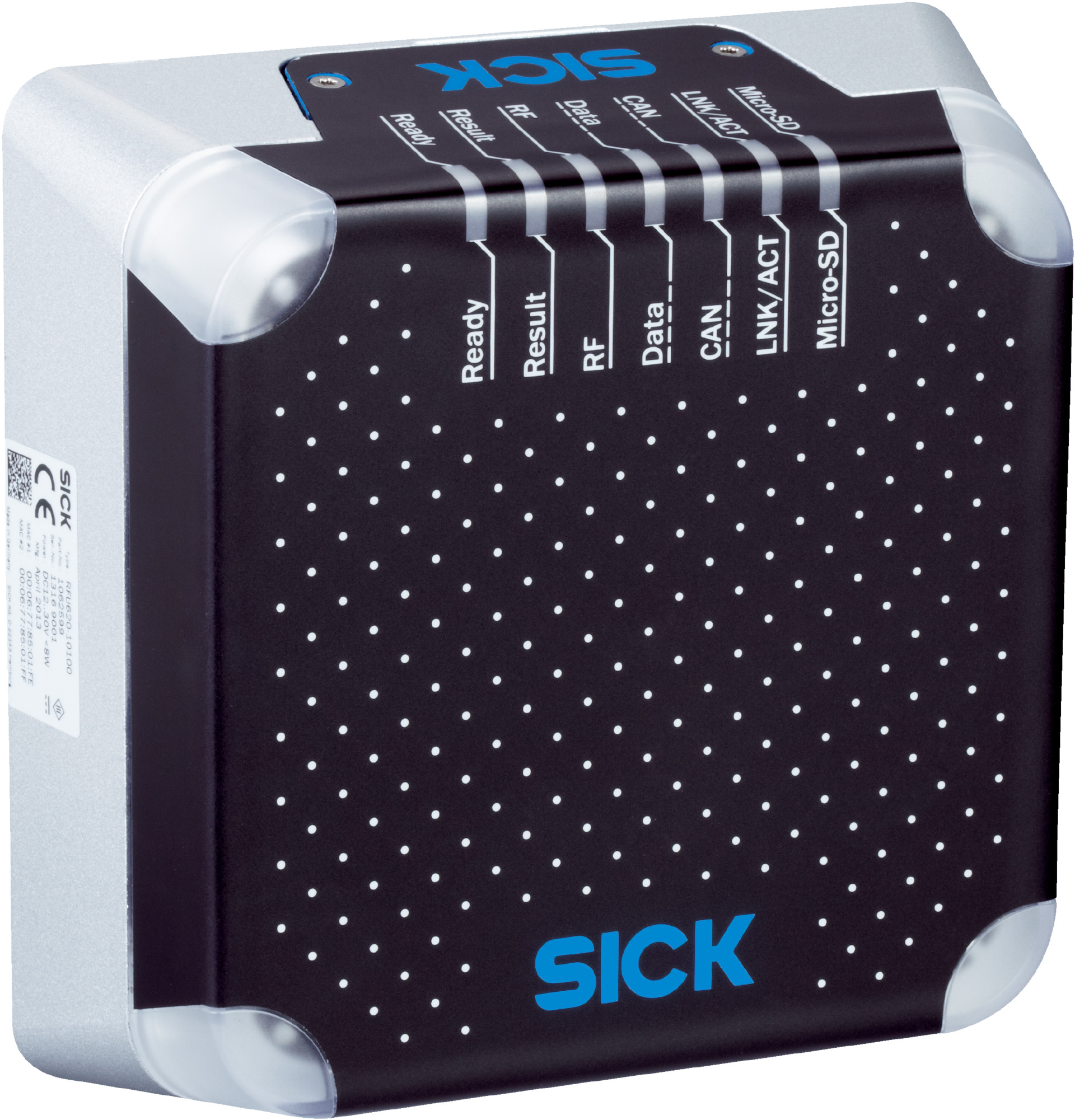

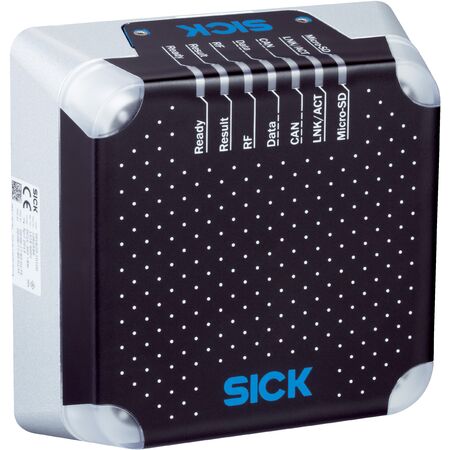

UHF RFID Reader RFU620-10505 | Mid Range Read/Write Device | Integrated Antenna | IP67 Rated | by SICK
The UHF RFID Reader RFU620-10505 is a mid-range read/write device designed for industrial automation and logistics. With an integrated antenna and a read range of up to 2 meters, it supports EPCglobal UHF Class 1 Generation 2 standards. Built for durability with an IP67 rated housing, this device is perfect for asset tracking and supply chain management, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 56mm x 137mm x 131mm
- Weight: 0.78 kg
Key Features
- Mid Range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 920.625 MHz to 924.375 MHz
- Output power of 0.2 W (ERP, 23 dBm) with adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with axial ratio typically 3 dB and front-to-back ratio greater than 5 dB
- Integrated antenna with 100° aperture angle
- Connection type: Power over Ethernet (PoE)
- No heating function
- Read range up to 2 meters
- Diagnosis, updatable firmware, freely programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
- Multiple interfaces including Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, USB 2.0
- 7 multi-color LEDs and 4 RGB LEDs for device status and process feedback
- Web server operator interface and SOPAS ET configuration software
- Application-specific programming via SICK AppStudio
- MicroSD memory card support for parameter cloning and data storage
- Robust housing with aluminum die cast and PPS plastic, IP67 rated enclosure
- Wide ambient operating temperature range from -25 °C to +50 °C
- High vibration and shock resistance
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper configuration and compliance with local electrical and communication standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable IP67 rated housing ensures long product life reducing waste
- Energy efficient with typical power consumption of 8 W and standby 3 W
- Supports updatable firmware to extend device usability and reduce electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK RFU620-10505 RFID read/write device is available now for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications.
