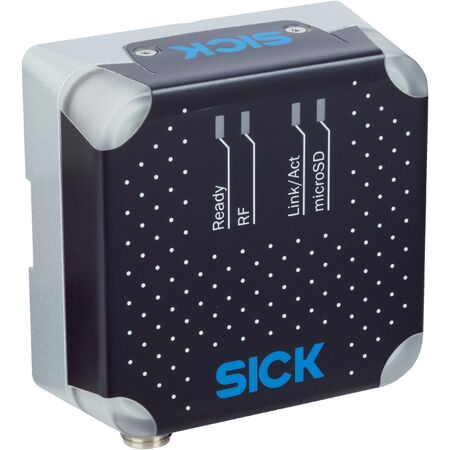

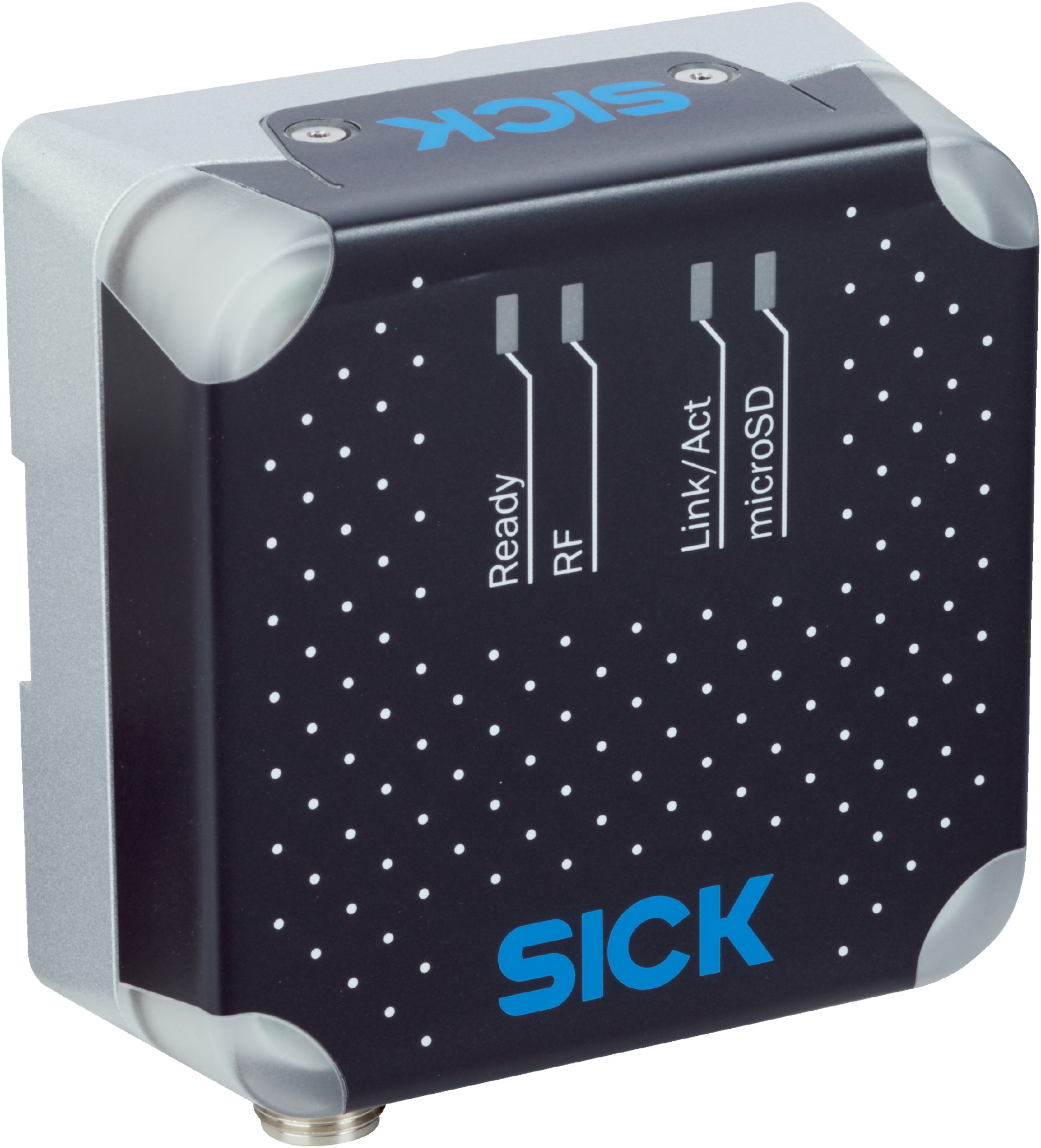

UHF RFID Reader | Short Range Read/Write Device | Integrated Antenna | IP67 Rated | by SICK
The UHF RFID Reader RFU610-10603 is a short-range read/write device with an integrated antenna, designed for industrial automation and logistics applications. Operating in the UHF frequency band, it supports EPCglobal UHF Class 1 Generation 2 standards and features a robust IP67 rated housing, ensuring durability in various environments. With multiple connection options and a read range of up to 0.5 meters, it's perfect for asset tracking and access control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 38mm x 92mm x 80mm
- Weight: 0.313 kg
Key Features
- Short range RFID read/write device with integrated antenna
- Operates in UHF frequency band (860 MHz to 960 MHz)
- Carrier frequency range: 865.7 MHz to 866.9 MHz
- Output power of 25 mW (ERP, 14 dBm)
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Adjustable transmitting power with circular polarization
- Aperture angle of 110°
- Read range up to 0.5 meters
- Robust aluminum die cast and PPS plastic housing with IP67 rating
- Multiple connection options including PoE, Ethernet, USB, and M12/M8 connectors
- Supports Ethernet (TCP/IP, PoE, OPC UA), PROFINET, EtherNet/IP™, and USB interfaces
- Equipped with 4 multi-color LEDs for device status and process feedback
- Web server operator interface and SOPAS ET configuration software
- MicroSD memory card slot for parameter cloning and data storage
- Wide ambient operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration, especially for Ethernet and power supply interfaces.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Access control and security systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 6 W (3 W standby) reduces energy usage
- Durable IP67 rated housing ensures long product life and reduces waste
- Supports efficient asset tracking to optimize resource use and reduce losses
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU610-10603 RFID read/write device is available for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications.
