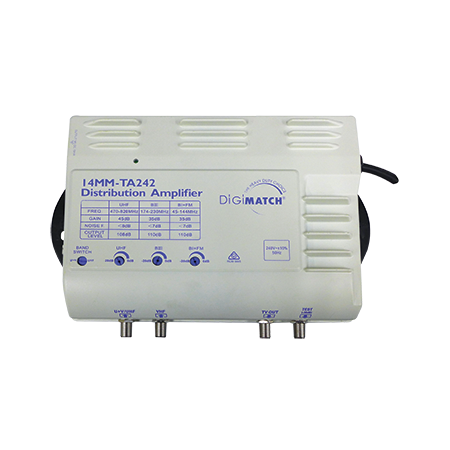

Distribution Amplifier 45dB Matchmaster
UHF/VHF distribution amplifier with 45dB gain and internal power supply—ideal for enhancing TV signal reception in homes and offices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of Inputs: 2
- Frequency Range: 47-144MHz, 175-230MHz, 470-862MHz
- Number of Outputs: 1
- Amplification Bands: BI + FM, B III, UHF
- Gain: 35/35/45dB
- Gain Adjustment: 20dB
- Output Level (42Ch): 108dBµV
- Noise Figure: <8dB
- Mains Voltage: 240V
- Test Points: Output -30dB
- Dimensions (H x L x W): 50mm x 120mm x 150mm
- Weight: 0.5 kg
Key Features
- Separate gain controls for band 1 & FM, band 3 & UHF
- Metal casing for excellent heat dissipation
- Switchable inputs for UHF & VHF or combination TV antenna
- Test points with -30dB output
- Includes internal power supply
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal signal distribution and compliance with electrical safety standards.
Applications
- Residential: TV antenna signal distribution
- Commercial: Broadcast and communication signal amplification
- General: Terrestrial TV signal distribution for multiple outlets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces signal loss and interference, improving energy efficiency of TV reception systems
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Matchmaster 45dB UHF/VHF Terrestrial Distribution Amplifier is available now for immediate purchase. Ideal for residential and commercial terrestrial TV signal distribution applications.
