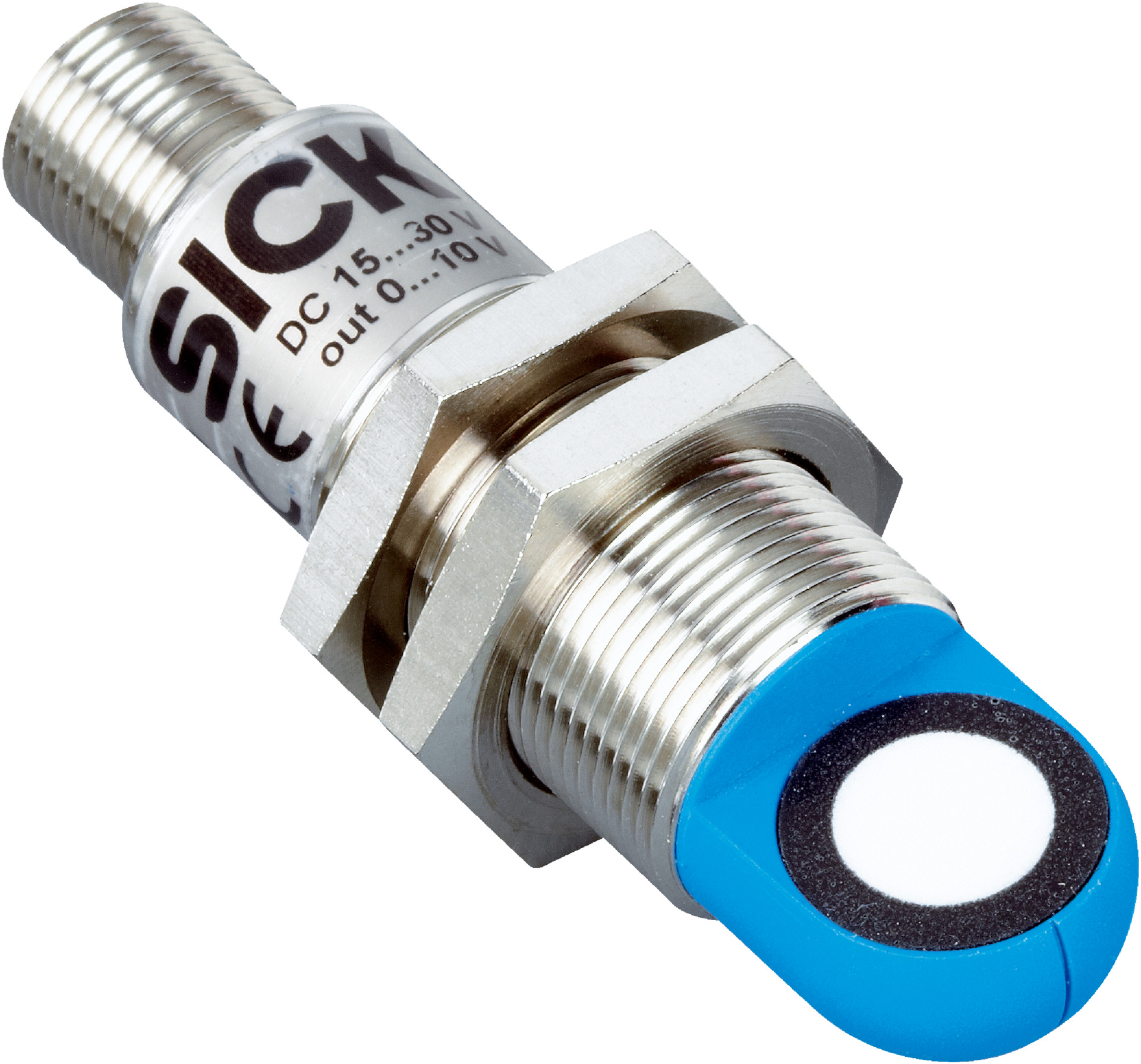

Ultrasonic Distance Sensor | 120 mm to 1,300 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor offers an impressive operating range from 120 mm to 1,300 mm, with a high resolution of ≥ 0.069 mm, making it ideal for industrial automation and object detection. Built for reliable performance, it features temperature compensation and a robust IP65/IP67 rated metal housing, ensuring durability in various environments. Perfect for safety monitoring and level measurement in tanks and silos.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 120 mm to 1,000 mm, 1,300 mm
- Target: Natural objects
- Resolution: ≥ 0.069 mm
- Repeatability: ± 0.15 %
- Measurement accuracy: ± 1 %
- Temperature compensation: Yes
- Response time: 80 ms
- Output time: 20 ms
- Ultrasonic frequency: 200 kHz
- Analog output: 1 voltage output, 0 V to 10 V, ≥ 100,000 Ω, 12 bit resolution
- Multifunctional input: 1 x MF
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 1.2 W
- Initialization time: < 300 ms
- Display: 2 x LED
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Thread size: M18 x 1
- Connection type: Male connector, M12, 5-pin
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Operating range from 120 mm to 1,300 mm
- High resolution of ≥ 0.069 mm
- Repeatability of ± 0.15 %
- Measurement accuracy of ± 1 %
- Temperature compensation included
- Fast response time of 80 ms and output time of 20 ms
- Multifunctional input for external teach, synchronization, and multiplexing
- Synchronization and multiplexing of up to 20 sensors without cross talk
- Robust metal housing with IP65/IP67 protection rating
- LED display for status indication
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring, calibration, and compliance with safety standards.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Level measurement in tanks and silos
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.2 W reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

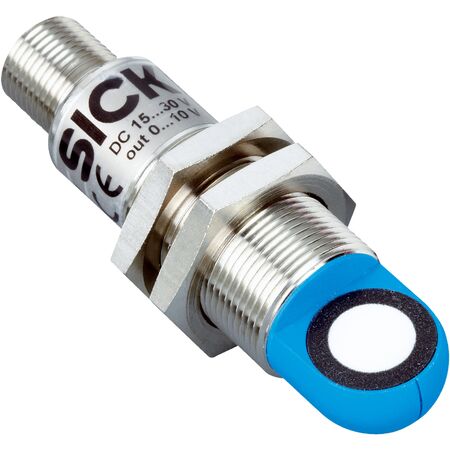

The SICK UM18-218127112 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
