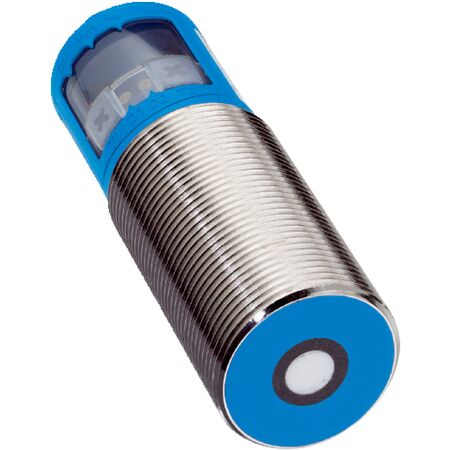

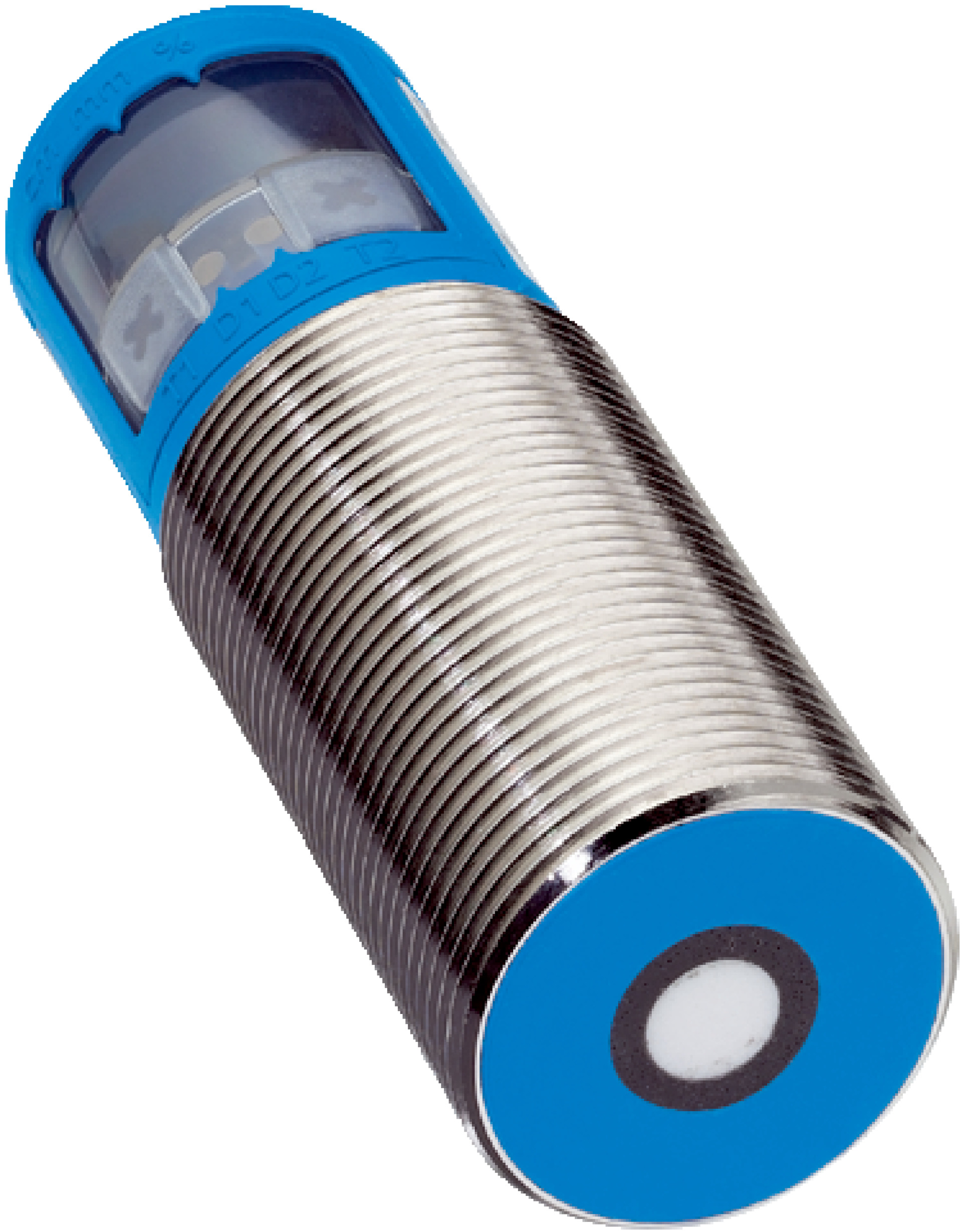

Ultrasonic Distance Sensor | 200mm to 2000mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UM30-213115 offers an impressive operating range from 200 mm to 2,000 mm, with high resolution and measurement accuracy. Ideal for industrial automation and object detection, this sensor features adjustable operating modes and robust IP65/IP67 protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 200 mm to 1,300 mm and up to 2,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- LED display with two LEDs for status indication
- Robust metal housing with IP65/IP67 protection rating
- Temperature compensation for reliable operation
- Fast response time of 92 ms and switching frequency of 8 Hz
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper sensor alignment and electrical connections.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Safety and monitoring systems requiring precise ultrasonic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Energy-efficient operation with power consumption ≤ 2.4 W
- Supports precise measurement reducing material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM30-213115 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
