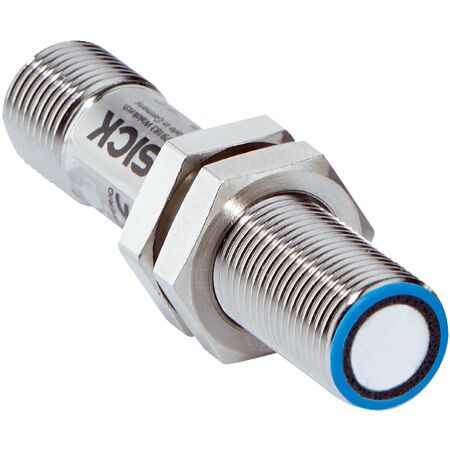

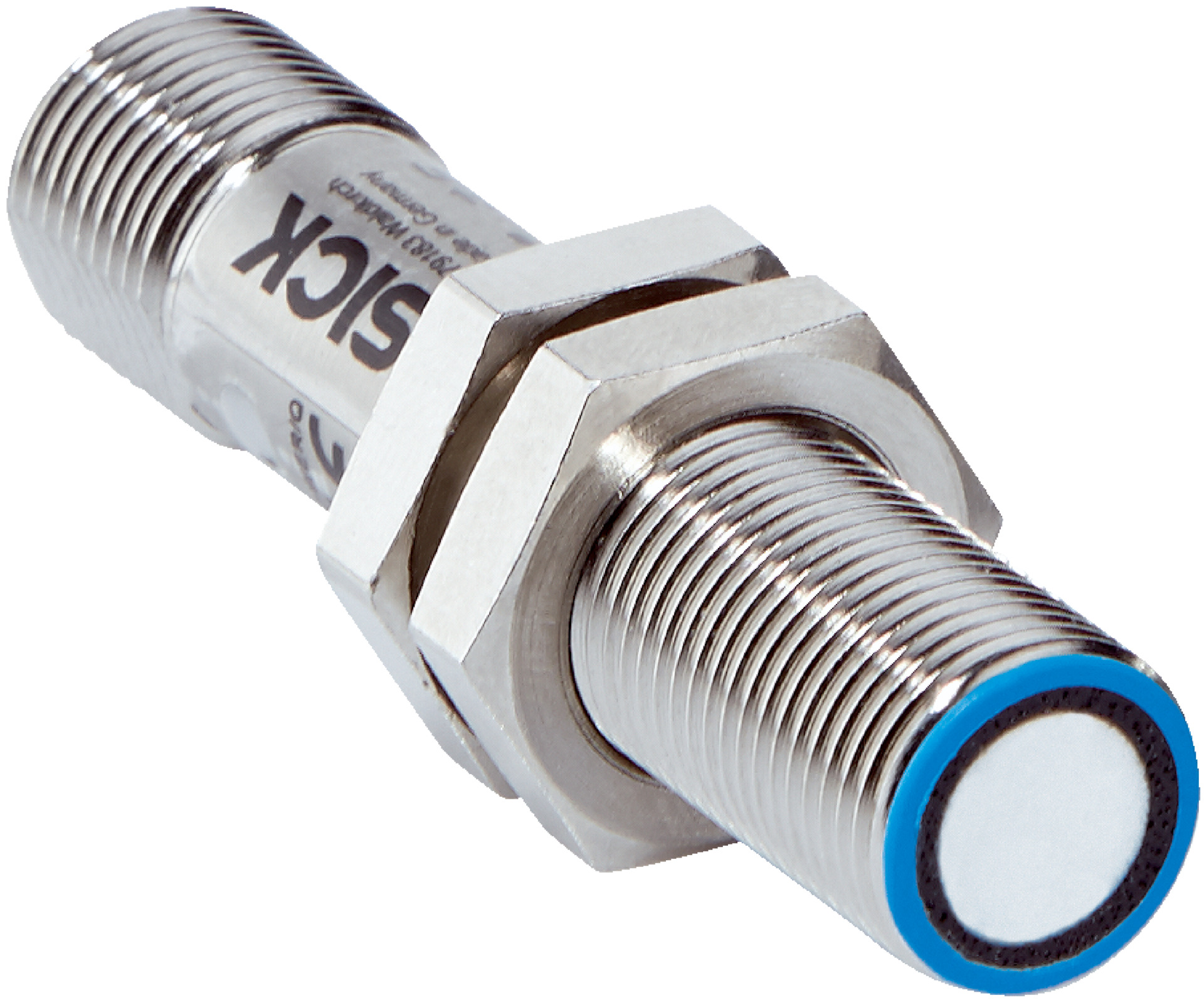

Ultrasonic Distance Sensor | 20 mm to 150 mm Range | 0.069 mm Resolution | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor offers an operating range from 20 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.069 mm. Perfect for industrial automation, this sensor excels in object detection and level measurement, ensuring precise results with a measurement accuracy of ± 1%. Built for durability with an IP65/IP67 rated enclosure, it’s ideal for various applications in robotics and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 20 mm to 150 mm, extendable to 250 mm
- Target: Natural objects
- Resolution: ≥ 0.069 mm
- Repeatability: ± 0.15 %
- Measurement accuracy: ± 1 %
- Temperature compensation: Yes
- Response time: 24 ms
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Analog output: 4 mA to 20 mA current output, 12-bit resolution
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 0.9 W
- Initialization time: < 300 ms
- Indication: 2 x LED
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 4-pin
- Thread size: M12 x 1
- Dimensions (H x L x W): 12mm x 60.1mm x 12mm
- Weight: 0.1 kg
Key Features
- Operating range from 20 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.069 mm
- Repeatability of ± 0.15 %
- Measurement accuracy of ± 1 %
- Temperature compensation included
- Fast response time of 24 ms and output time of 8 ms
- Ultrasonic frequency of 380 kHz
- Analog current output (4 mA to 20 mA) with 12-bit resolution
- IP65 / IP67 rated enclosure for robust protection
- Metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
- M12 x 1 thread size with 4-pin male connector
- Safety-related parameters with MTTFD of 101 years and DCavg 0%
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Level measurement in tanks and silos
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 0.9 W reduces energy usage
- Durable metal housing extends product life, reducing waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM12-1172261 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise measurement applications.
