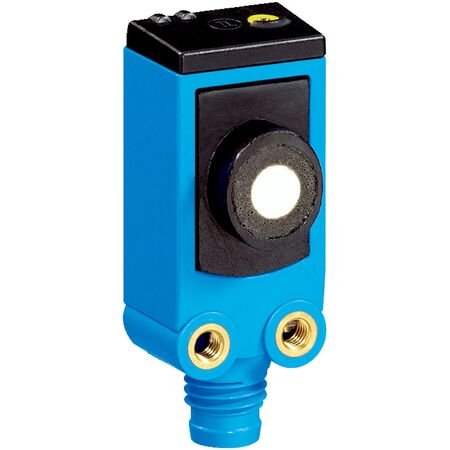

Ultrasonic Distance Sensor | 20 mm to 150 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC4-13347 offers an operating range from 20 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.1 mm and measurement accuracy of ± 1%. Ideal for industrial automation and object detection, this sensor features temperature compensation and a robust IP65/IP67 enclosure, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 20 mm to 150 mm, extendable to 250 mm
- Target: Natural objects
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation included
- Response time: 24 ms
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Analog output: 1 voltage output, 0 V to 10 V, 12-bit resolution
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 0.75 W
- Initialization time: < 300 ms
- Indication: 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Plastic (ABS), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection type: Male connector, M8, 3-pin
- Dimensions (H x L x W): 40mm x 17mm x 16mm
- Weight: 0.1 kg
Key Features
- Operating range from 20 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.1 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for reliable measurements
- Fast response time of 24 ms and output time of 8 ms
- Adjustable operating modes including switching point, switching window, and background suppression
- 12-bit analog voltage output (0 V to 10 V)
- Robust IP65/IP67 rated enclosure for harsh environments
- Low power consumption ≤ 0.75 W
- LED indication for operational status
- Safety parameters with MTTFD of 101 years and DCavg of 0%
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for distance measurement
- Object detection in manufacturing processes
- Level measurement of liquids and solids
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UC4-13347 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
