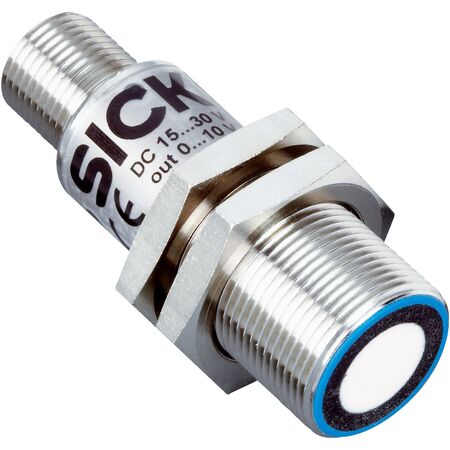

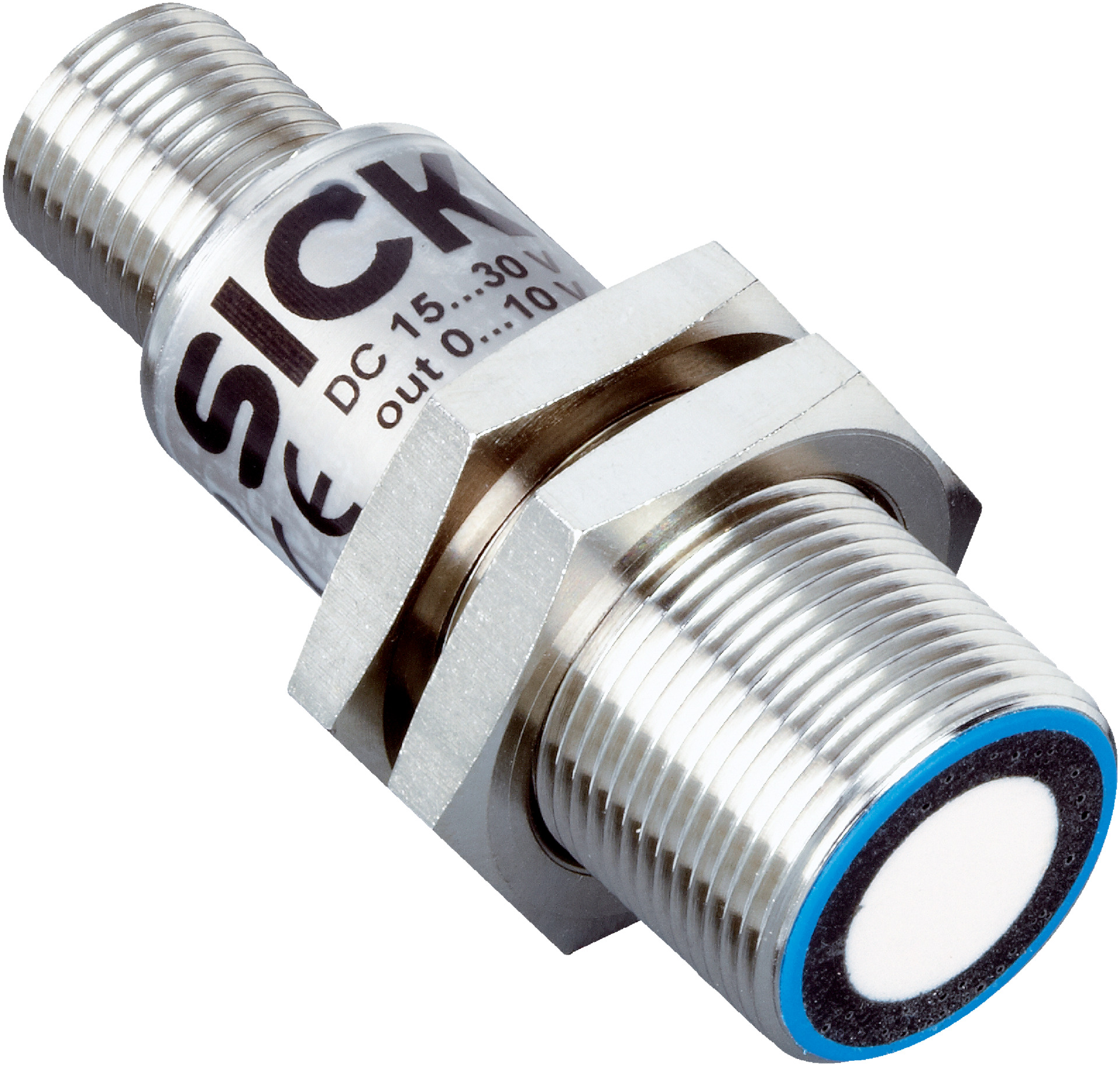

Ultrasonic Distance Sensor | 20 mm to 150 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UM18-21712C211 offers an operating range from 20 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.069 mm and measurement accuracy of ± 1%. Ideal for industrial automation and safety monitoring, this sensor features temperature compensation and supports IO-Link for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 20 mm to 150 mm, extendable to 250 mm
- Target: Natural objects
- Resolution: ≥ 0.069 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation: Yes
- Response time: 32 ms
- Switching frequency: 25 Hz
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Digital output: 1 push-pull PNP/NPN, max 100 mA
- Analog output: 4-20 mA current output, 12 bit resolution
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.2 W
- Initialization time: < 300 ms
- Display: 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass), polyurethane foam, glass epoxy resin
- Connection type: Male M12, 5-pin connector
- Thread size: M18 x 1
- Ambient temperature operation: -25 °C to +70 °C
- Ambient temperature storage: -40 °C to +85 °C
- Dimensions (H x L x W): 18mm x 53mm x 18mm
- Weight: 0.1 kg
Key Features
- Operating range from 20 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.069 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Response time of 32 ms and switching frequency of 25 Hz
- Adjustable operating modes including switching point, switching window, and background suppression
- Supports synchronization and multiplexing of up to 20 sensors without cross talk
- IO-Link V1.1 interface for process data, parameterization, diagnosis, and data storage
- Digital and analog outputs with push-pull PNP/NPN and 4-20 mA current output
- Enclosure rated IP65/IP67 for robust protection
- Metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link communication standards.
Applications
- Industrial automation for object detection and distance measurement
- Process control with natural object targeting
- Safety-related monitoring with high reliability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.2 W reduces energy usage
- Durable metal housing extends product life and reduces waste
- Supports synchronization to minimize interference and improve efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM18-21712C211 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
