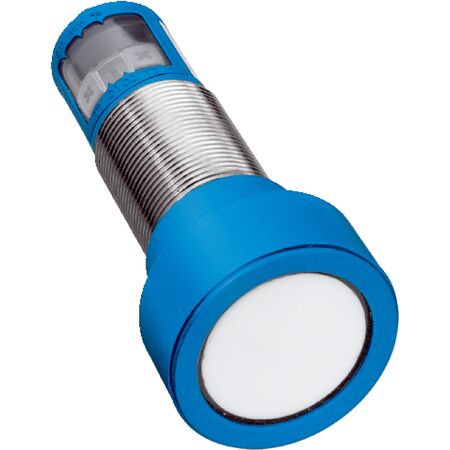

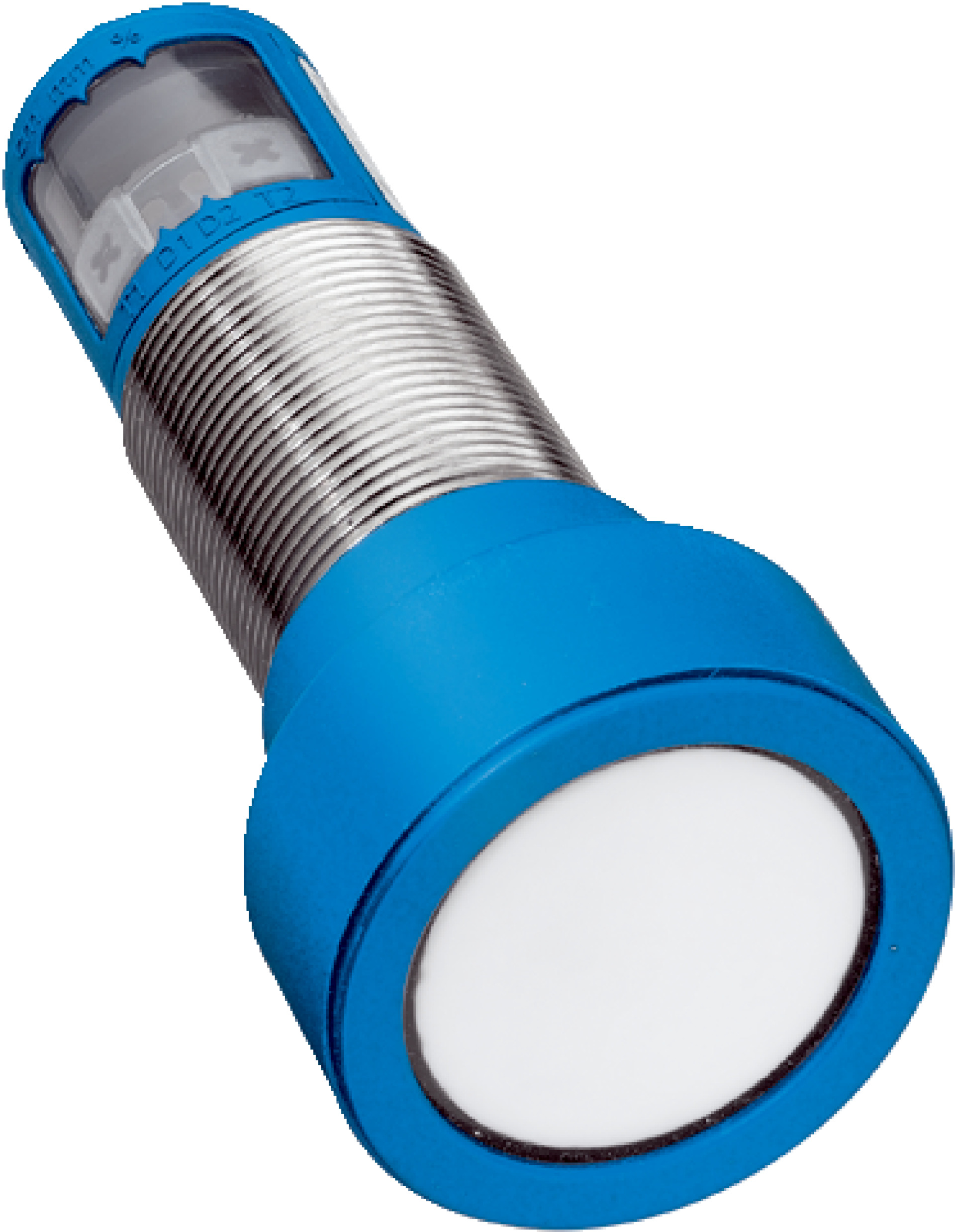

Ultrasonic Distance Sensor | 350 mm to 5,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UM30-214118 offers an impressive operating range from 350 mm to 5,000 mm, with a high resolution of ≥ 0.18 mm and repeatability of ± 0.15%. Perfect for industrial automation and safety monitoring, this sensor features an IP65/IP67 rated enclosure for robust protection and temperature compensation for accurate measurements, making it ideal for various applications in manufacturing and processing plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 180 ms
- Switching frequency: 4 Hz
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Digital output: 1 PNP output, max 200 mA
- Analog output: 4 mA to 20 mA or 0 V to 10 V, 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 47.5mm x 102mm x 47.5mm
- Weight: 0.21 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- IP65 / IP67 rated enclosure for robust protection
- Automatic selection of analog current or voltage output
- LED display with two LEDs for status indication
- Temperature compensation for accurate measurements
- Safety-related parameters with MTTFD of 101 years and DCavg of 0%
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing and processing plants
- Safety-related monitoring in automated systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-214118 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
