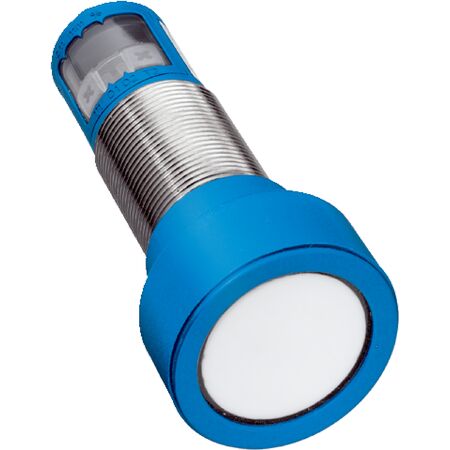

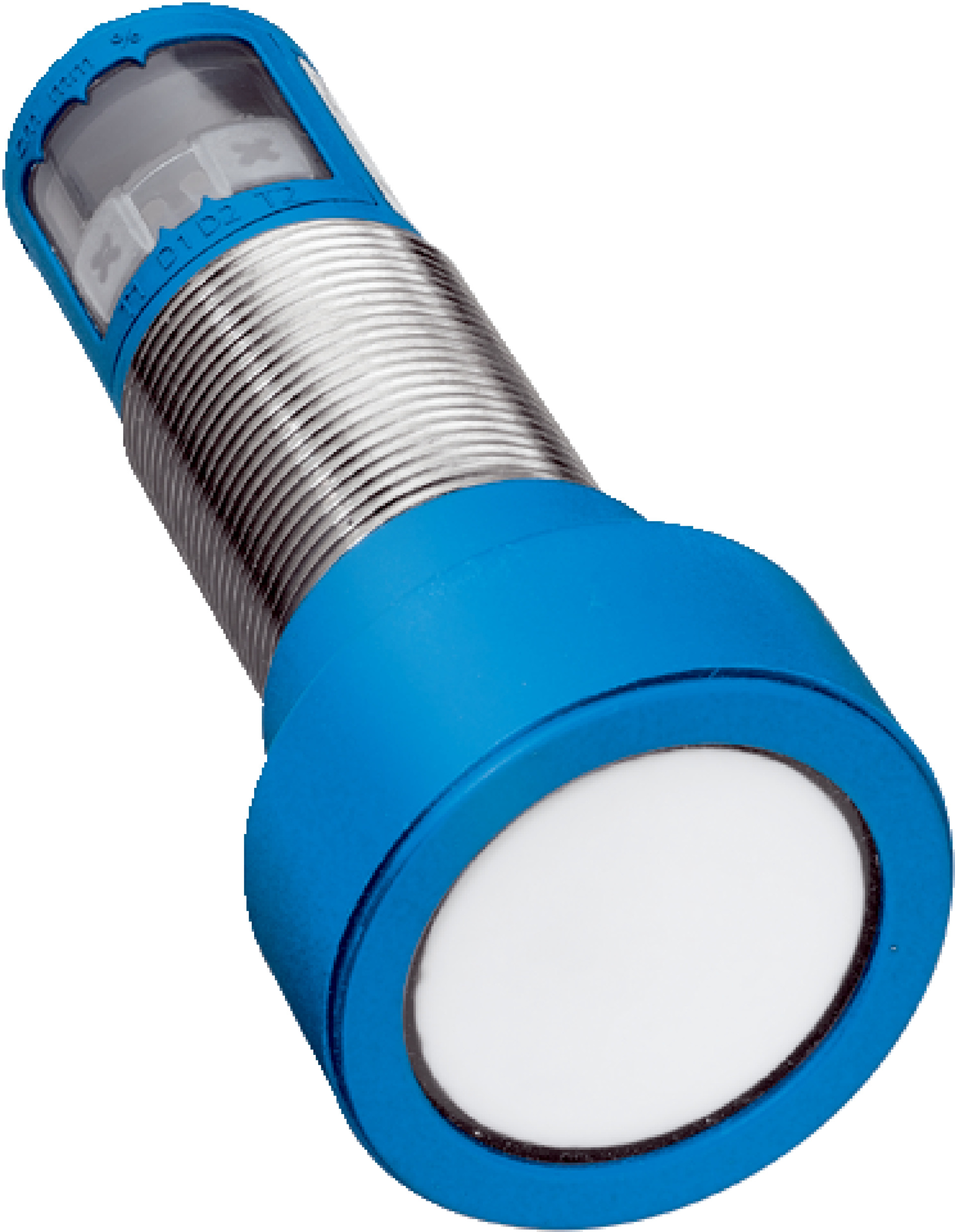

Ultrasonic Distance Sensor | 350 mm to 5,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UM30-214112 offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and precise object detection. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures reliable performance in various applications. Its robust metal housing and IP65/IP67 protection rating provide durability in challenging environments, while the fast response time of 180 ms enhances operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 180 ms
- Switching frequency: 4 Hz
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Digital outputs: 2 PNP outputs, max 200 mA
- Multifunctional input: 1 x MF
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 47.5mm x 102mm x 47.5mm
- Weight: 0.21 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- Robust metal housing with IP65/IP67 protection rating
- LED display with two LEDs for status indication
- Temperature compensation for reliable measurements
- Fast response time of 180 ms and switching frequency of 4 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration according to industrial safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Safety and monitoring systems requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Durable metal housing extends product lifespan reducing waste
- High accuracy reduces errors and material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-214112 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
